Ion+ 660W Platinum
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality

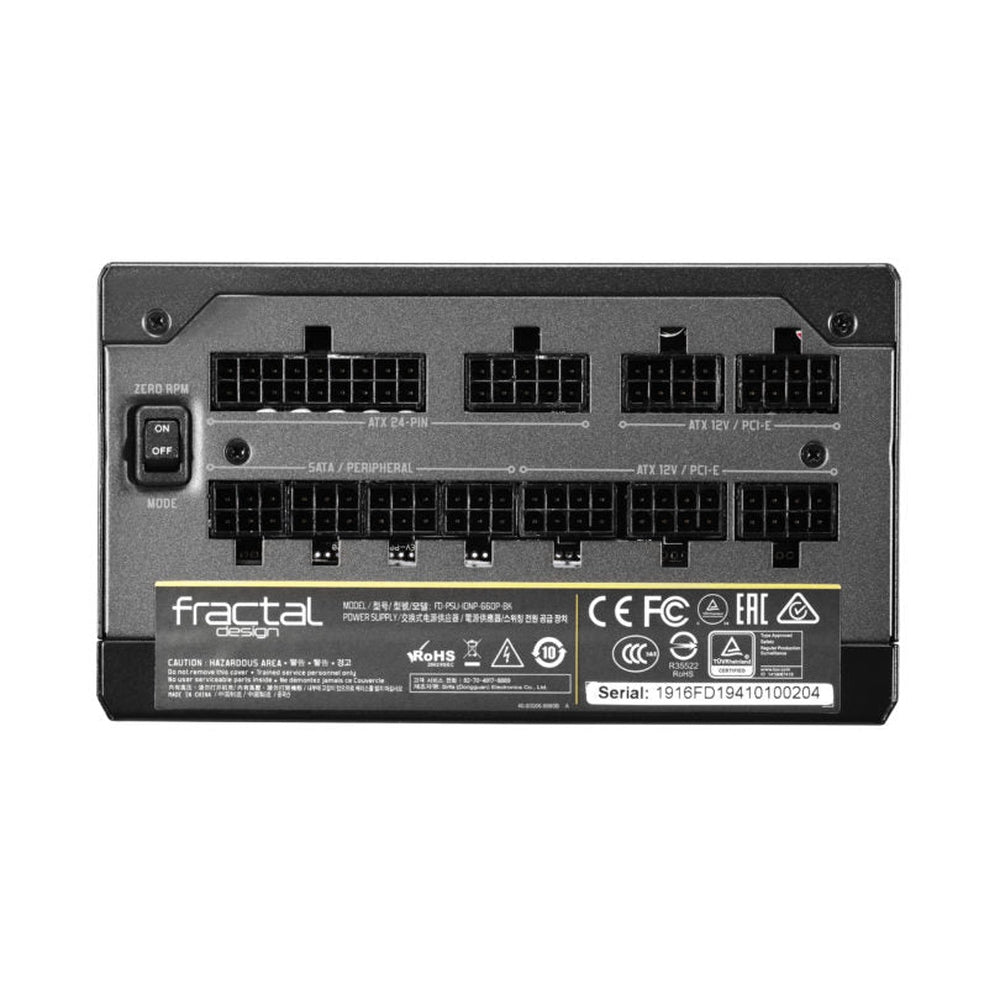

• UltraFlex DC wires for effortless cable-routing and connectors
• Custom-tailored 140 mm fan with exceptionally low minimum speed
• 80 PLUS® Platinum Efficiency for optimized electrical performance
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Specifications | Connectors | 1 x ATX 24-pin, 4 x PCIe 6+2 pin, 4 x Peripheral, 1 x ATX12V 4+4 pin / EPS12V 8-pin, 10 x SATA |
| Specifications | Input current | 10A/5A |
| Specifications | Input frequency | 50-60 Hz |
| Specifications | Input voltage | 100-240V AC |
| Specifications | Life expectancy (MTBF) at max output load | 100,000 hours |
| Specifications | Number of 12V rails | 1 |
| Specifications | Product Type | 660W Modular ATX power supply |
| Specifications | Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Specifications | PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Specifications | Sleep State Compliance | C6/C7 |
| Specifications | Specifications | Specifications |
| Specifications | Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Specifications | Unit measurements | 150 x 150 x 86 mm |
| Specifications | Unit weight (unit only) | 1.61 kg |
| Specifications | Warranty | 10 Years Limited |
| Specifications | Weight | 1.61kg |
