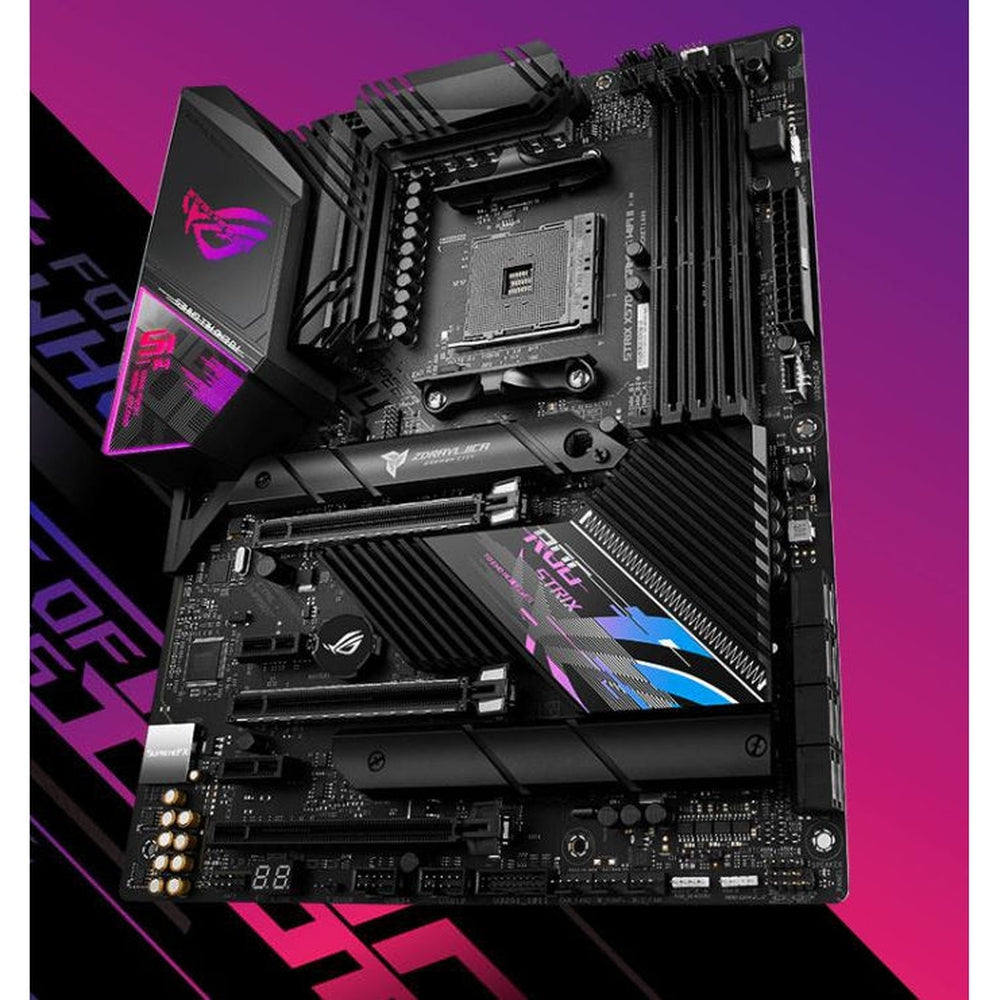

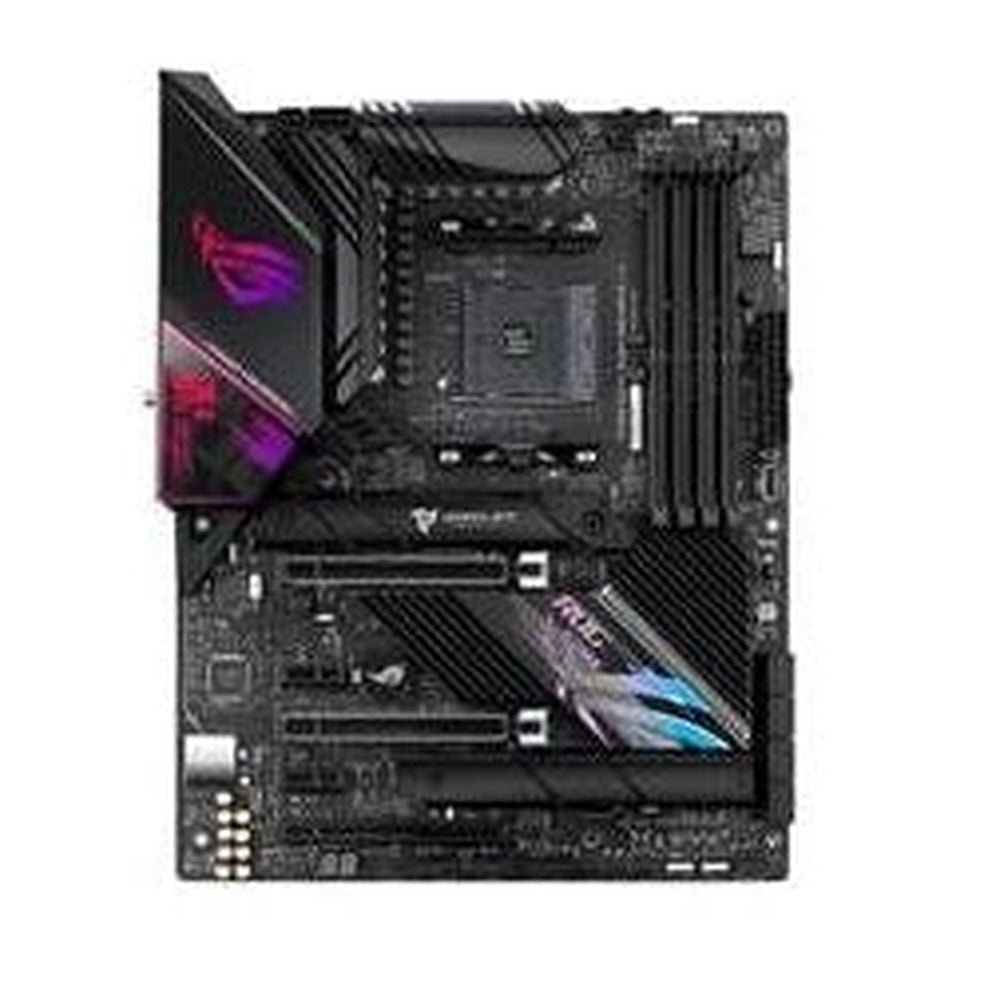

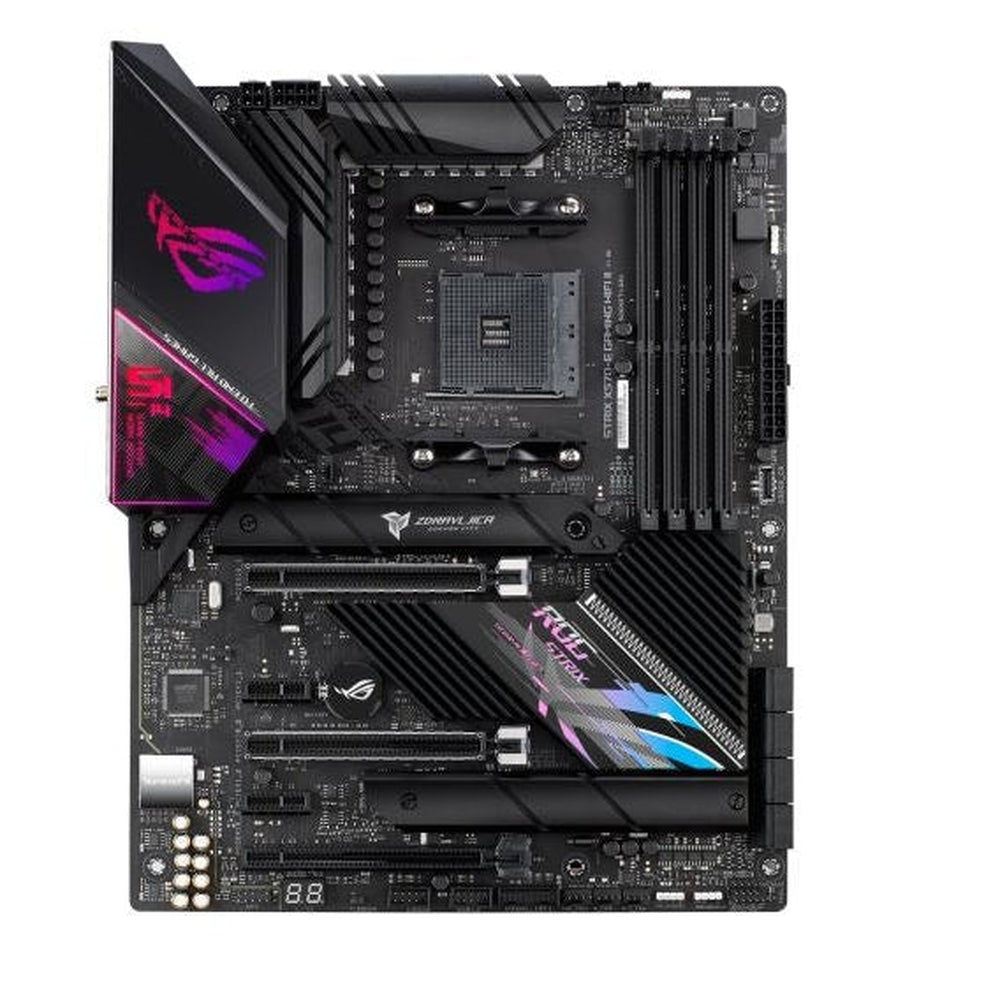

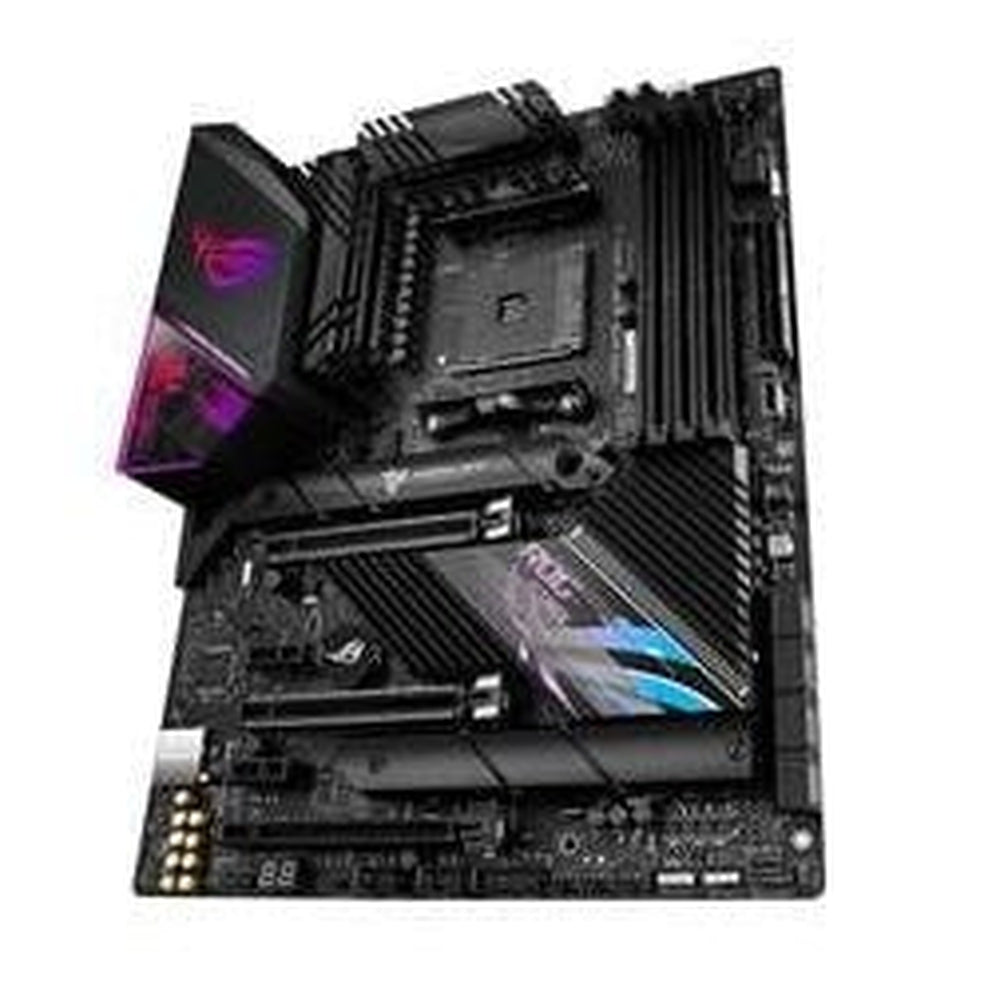

AMD X570 ATX gaming motherboard with PCIe® 4.0, 12+4 power stages, and WiFi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type C and Aura Sync RGB lighting
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- Best Gaming Connectivity: Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
- 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* |
| Specifications | Chipset | X570 |
| Specifications | Form Factor | ATX 30.5cm x 24.4cm |
| Specifications | I/O Connectors | 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort 1 x HDMI® port - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Specifications | LAN | 1 x Intel® 1Gb Ethernet 1 x Realtek 2.5Gb Ethernet 1 x Realtek 2.5Gb Ethernet 1 x Intel® I211-AT 1Gb Ethernet |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory Dual Channel Memory Architecture |
| Specifications | PCI Slots | 2 x PCIe 4.0 x16 (x16 or dual x8)* |
| Specifications | Processor Support | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
| Specifications | Raid | Supports RAID 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory Dual Channel Memory Architecture |
| Specifications | Socket | AMD AM4 socket: Ready for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors |
| Specifications | Storage Interface | Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Year warranty |
| Specifications | Weight | 2.12Kgs |
