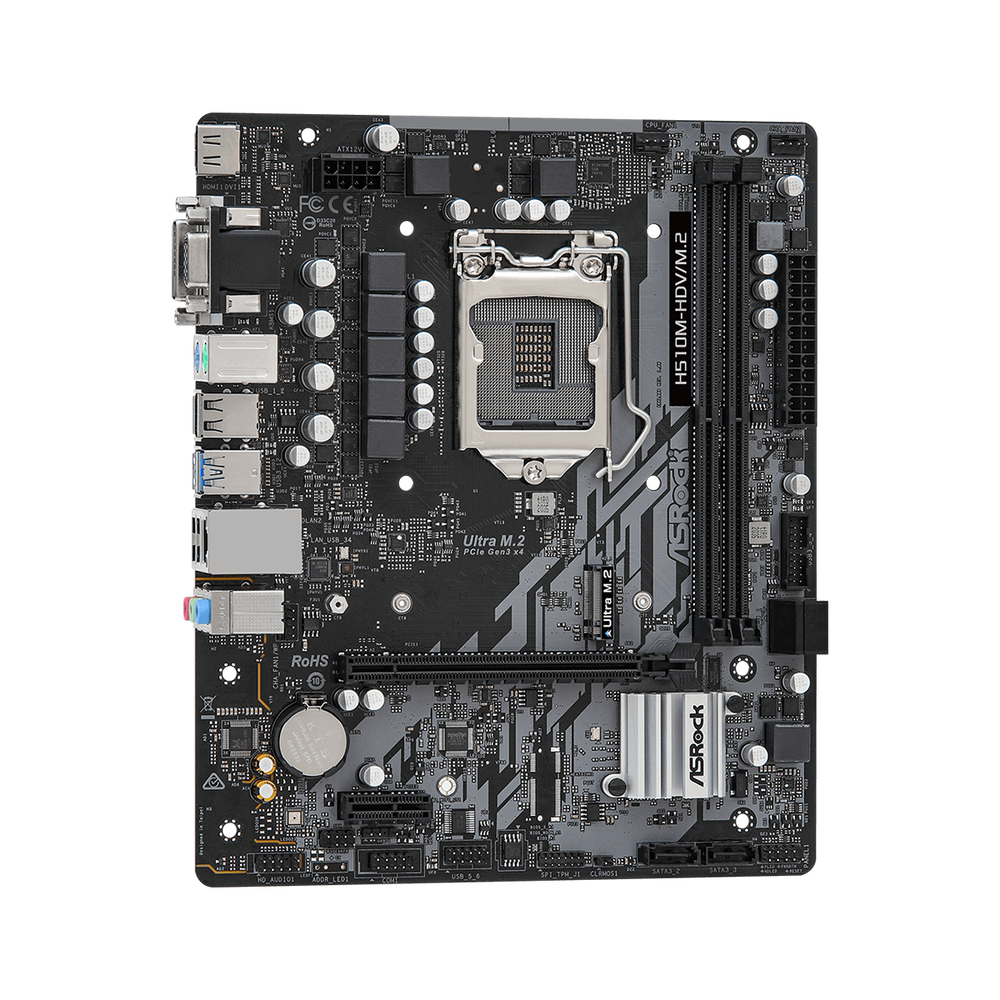

H510M-HDV/M.2
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
- 6 x USB 2.0 (4 x Rear, 2 x Front)
- Intel® Gigabit LAN
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Specifications | Chipset | Intel® H510 |
| Specifications | Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm |
| Specifications | I/O Connectors | 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Specifications | Integrated CPU Graphics | 11th Gen Intel® Core Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports Triple Monitor - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. 11th Gen Intel® Core Processors support HDMI 2.0. 10th Gen Intel® Core Processors support HDMI 1.4. **Supports up to 2 displays simultaneously |
| Specifications | LAN | Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Specifications | Memory/Type/Bus/Max. | Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium® and Celeron® support DDR4 up to 2666 natively. 10th Gen Intel® Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| Specifications | PCI Slots | 11th Gen Intel® Core Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core Processors - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks |
| Specifications | Processor Support | Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors (LGA1200) |
| Specifications | Raid | No |
| Specifications | RAM Type/Bus/Max. | Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium® and Celeron® support DDR4 up to 2666 natively. 10th Gen Intel® Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| Specifications | Socket | LGA1200 |
| Specifications | Storage Interface | 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) ** Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
