ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s
ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s
ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s
ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s
ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s

ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s

$139.00
Tax included.
ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s

ASRock 10th Gen Intel Core Processors and 11th Gen Intel CoreIntel H510 2 x DDR4 DIMM Slots 4 x SATA3 6.0 Gb/s

$139.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Product description

H510M/ac


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors

  • Supports DDR4 3200MHz (OC)

  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

  • Graphics Output Options: HDMI, DVI-D, D-Sub

  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

  • 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)

  • 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)

  • 4 x USB 2.0 (2 x Rear, 2 x Front)

  • Intel® Gigabit LAN

  • Intel® 802.11ac WiFi + BT 4.2

Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
SpecificationsChipsetIntel® H510
SpecificationsForm FactorMicro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm

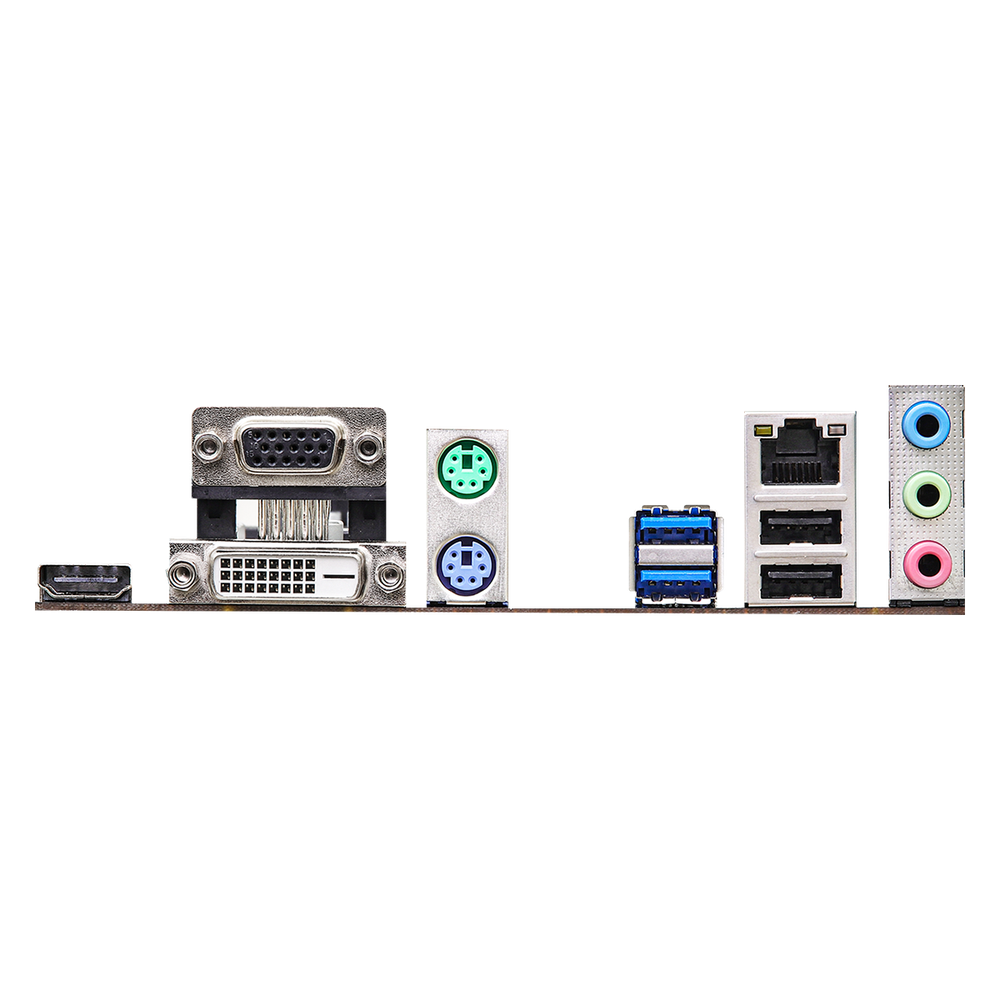

SpecificationsI/O Connectors2 x Antenna Ports - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
SpecificationsIntegrated CPU Graphics11th Gen Intel® Core Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports Triple Monitor - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. 11th Gen Intel® Core Processors support HDMI 2.0. 10th Gen Intel® Core Processors support HDMI 1.4. **Supports up to 2 displays simultaneously
SpecificationsLANGigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
SpecificationsMemory/Type/Bus/Max.Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium® and Celeron® support DDR4 up to 2666 natively. 10th Gen Intel® Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
SpecificationsPCI Slots11th Gen Intel® Core Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core Processors - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot - 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module *Supports NVMe SSD as boot disks
SpecificationsProcessor SupportSupports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors (LGA1200)
SpecificationsRaidN/A
SpecificationsRAM Type/Bus/Max.Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium® and Celeron® support DDR4 up to 2666 natively. 10th Gen Intel® Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
SpecificationsSocketLGA1200
SpecificationsStorage Interface4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
SpecificationsWarranty3 Years
SpecificationsWeight
SpecificationsWireless LANIntel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II
