AMD Radeon RX 6800 XT Taichi X 16G OC
RX6800XT TCX 16GO
Crafted for the best balance between the thermal efficiency and silence by all the details improved. ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side. Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents. The heat-pipes are consolidated to maximize the contact among each-others and also the GPU baseplate for the optimized heat dissipation.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Analog Max Resolution | N/A |
| Specifications | Card Interface | PCI® Express 4.0 x16 |
| Specifications | Card Size | 330 x 140 x 56 mm, 2.8-slot |
| Specifications | Chipset Manufacturer | AMD Radeon RX 6800 XT Graphics |
| Specifications | Core Clock (MHz) | - Boost Clock: Up to 2360 MHz - Game Clock: 2110 MHz - Base Clock: 1925 MHz |
| Specifications | Core Technology | RDNA 2 |
| Specifications | Digital Max Resolution | Digital Max Resolution: 7680 x 4320 |
| Specifications | DirectX S | 12 Ultimate |
| Specifications | Fan/Heat Sink | Tri Fans |
| Specifications | Form Factor | ATX |
| Specifications | Graphic Chipset | AMD Radeon RX 6800 XT Graphics |

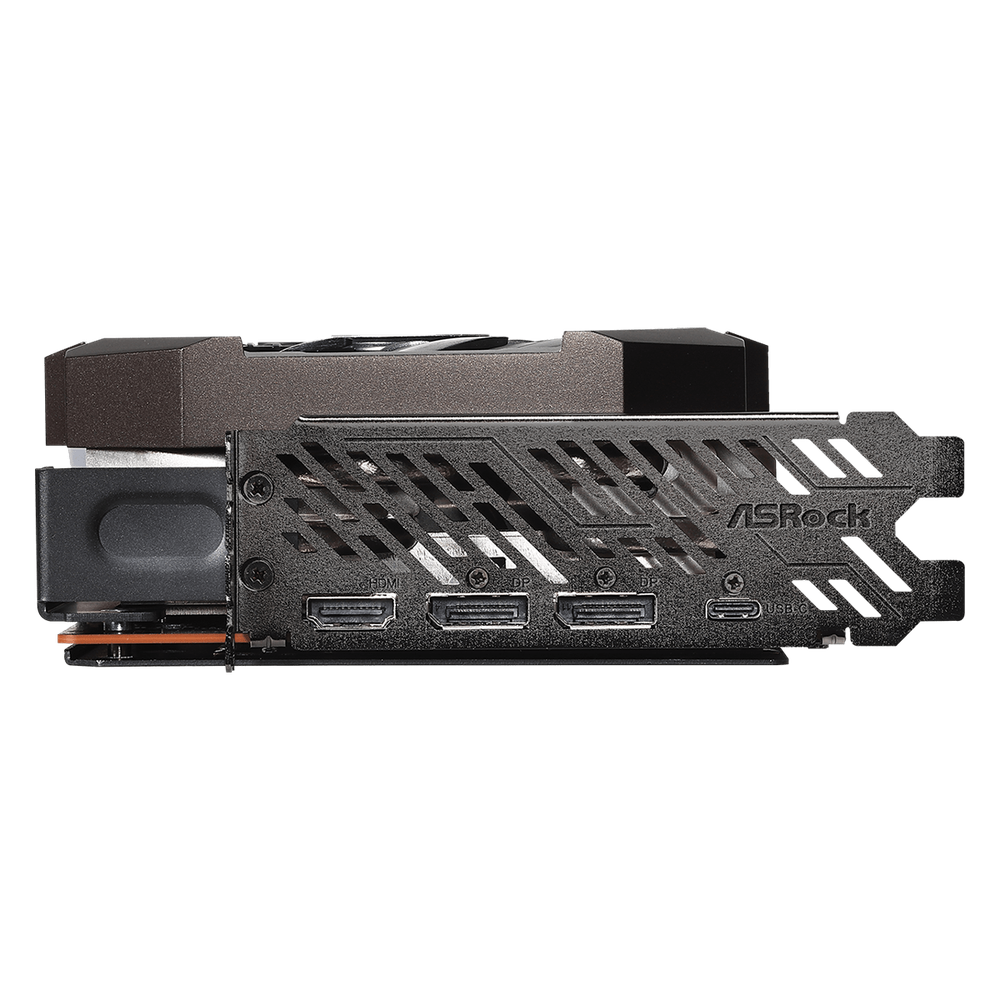

| Specifications | Input/output | 1 x HDMI 2.1 VRR, 2 x DisplayPort 1.4 with DSC, 1 x USB-C® |
| Specifications | Memory | GDDR6 16GB |
| Specifications | Memory Bus | 256-bit |
| Specifications | Memory Clock (MHz) | 16 Gbps |
| Specifications | Memory Size | 16GB |
| Specifications | Memory Type | GDDR6 |
| Specifications | Warranty | 3 Years limited |
| Specifications | Wattage | 800W, 3 x 8-pin |
