Product description

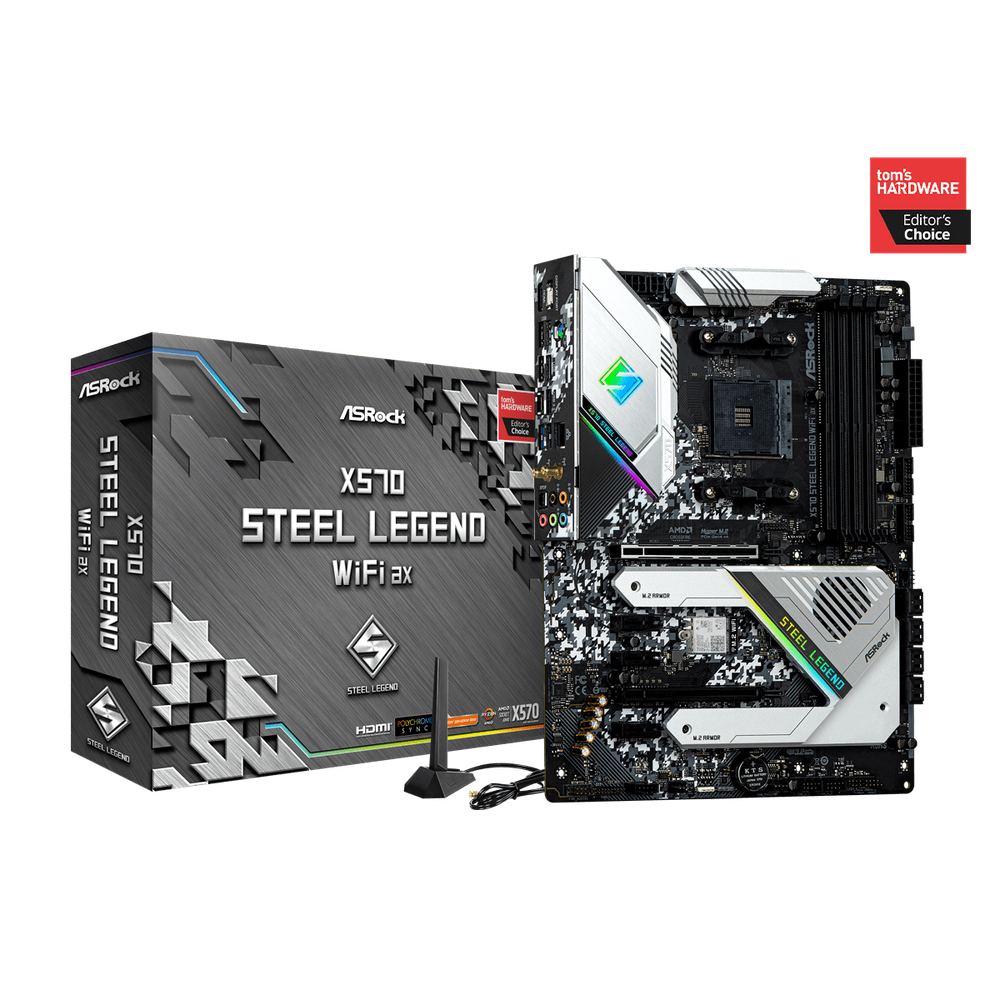

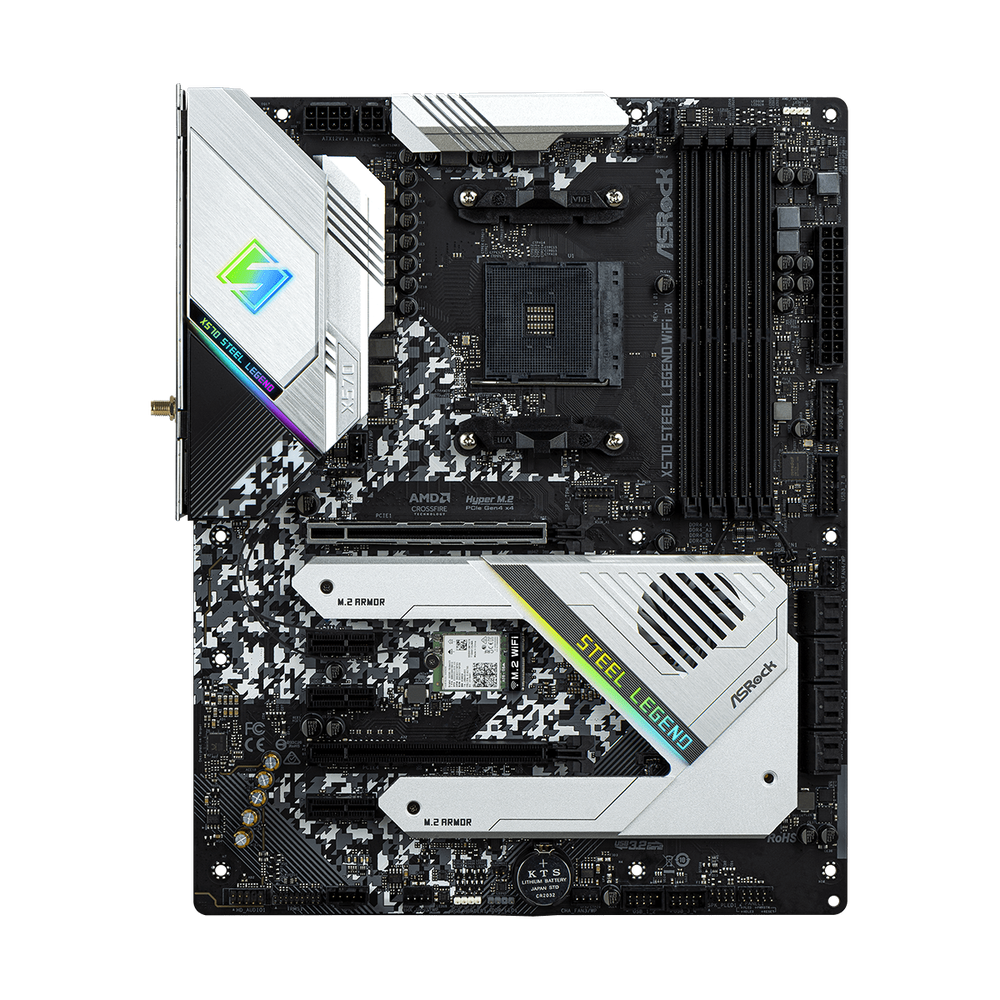

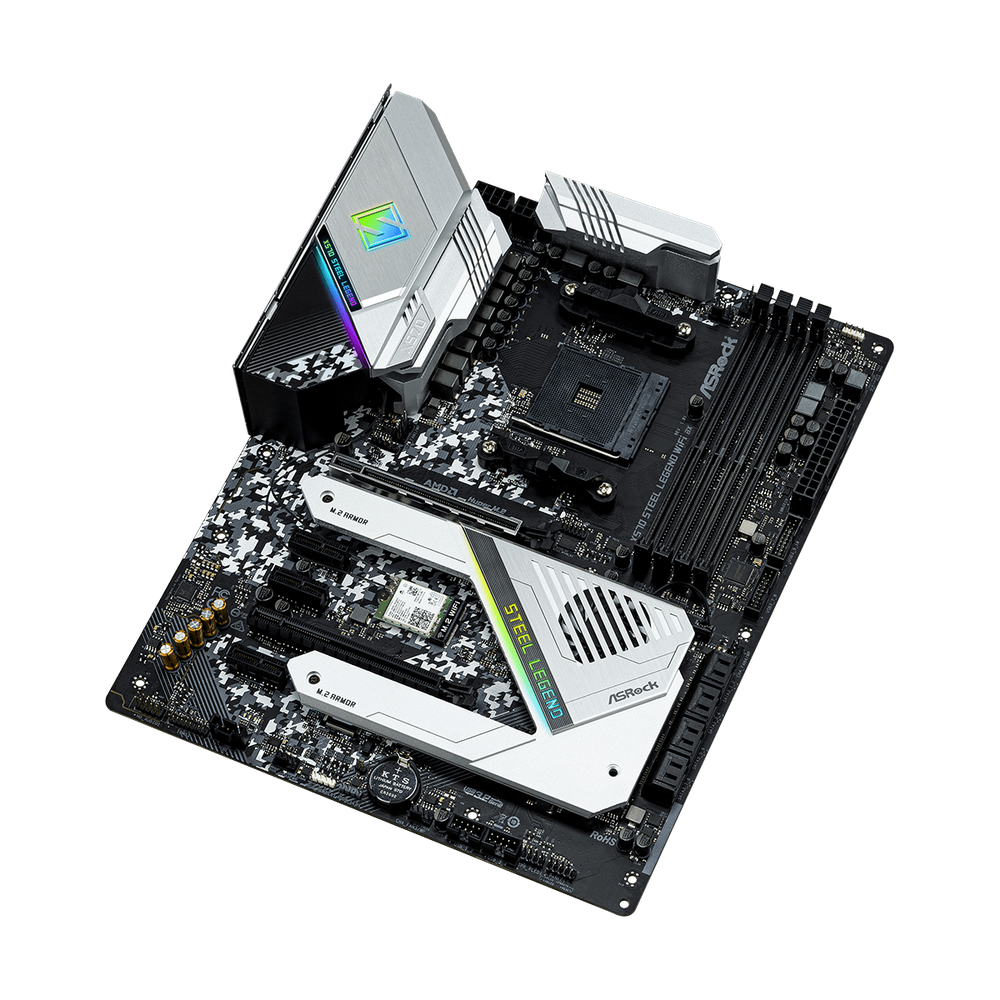

X570 Steel Legend WiFi ax


  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors

  • 10 Power Phase Design

  • Supports DDR4 4666+ (OC)

  • 2 PCIe 4.0 x16, 3 PCIe 4.0 x1

  • AMD Quad CrossFireX™ and CrossFireX™

  • Graphics Output Options: HDMI, DisplayPort

  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps

  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)

  • 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)

  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5, Intel® Gigabit LAN

  • ASRock Polychrome SYNC




Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound 4 - Nichicon Fine Gold Series Audio Caps - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15µ Gold Audio Connector
SpecificationsChipsetAMD X570
SpecificationsForm FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
SpecificationsI/O Connectors- 2 x Antenna Ports (on I/O Panel Shield) - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_56 ports. ACPI wake-up function is not supported on USB3_56 ports.
SpecificationsIntegrated CPU Graphics- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.0 - Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports - Supports Microsoft® PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed.
SpecificationsLAN- Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
SpecificationsMemory/Type/Bus/Max.- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support.
SpecificationsPCI SlotsAMD Ryzen series CPUs (Matisse) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Picasso) - 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))* - 3 x PCI Express 4.0 x1 Slots - Supports AMD Quad CrossFireX and CrossFireX - 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module - 15µ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks
SpecificationsProcessor Support- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors* - Intersil Digital PWM - 10 Power Phase design *Please refer to CPU Support List on our website for more information.
SpecificationsRaidSupport for RAID 0, RAID 1, and RAID 10
SpecificationsRAM Type/Bus/Max.- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support.
SpecificationsSocketAM4
SpecificationsStorage Interface- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* *If Thunderbolt support is enabled, SATA type M.2 will be disabled. Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Support RAID 0/1/10
SpecificationsWarranty3 Years
SpecificationsWeight
SpecificationsWireless LAN- Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 2.4Gbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO
