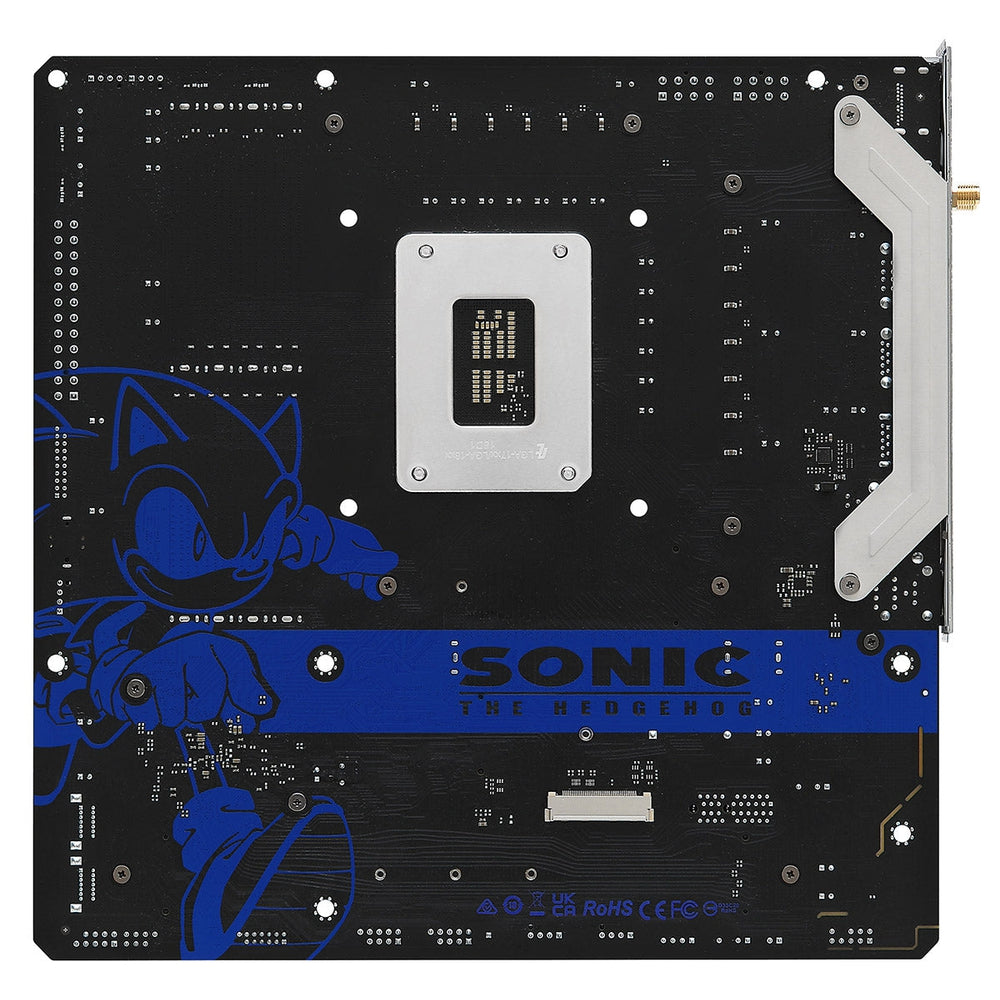

ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet
ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet
ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet
ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet

ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet

$299.00
Tax included.
ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet

ASROCK Intel B760M-PG-SONIC-WIFI Motherboard HDMI DisplayPort Ethernet

$299.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Product description

B760M PG SONIC WiFi

PRODUCT BRIEF:

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec,
  • Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
  • 1 USB 3.2 Gen2 Type-A (Rear)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front)
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN,
  • 802.11ax (WiFi 6E) + Bluetooth
  • Supports ASRock Auto Driver Installer
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
SpecificationsChipsetIntel® B760
SpecificationsForm Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
SpecificationsI/O Connectors- 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
SpecificationsIntegrated CPU GraphicsIntel® Xe Graphics Architecture (Gen 12)
SpecificationsLAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software
SpecificationsMemory/Type/Bus/Max.- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel® Extreme Memory Profile (XMP) 3.0
SpecificationsPCI SlotsCPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - 15µ Gold Contact in VGA PCIe Slot (PCIE1)
SpecificationsProcessor Support- Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT)
SpecificationsRaidSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
SpecificationsRAM Type/Bus/Max.- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel® Extreme Memory Profile (XMP) 3.0
SpecificationsSocketLGA1700
SpecificationsStorage InterfaceCPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
SpecificationsWarranty
SpecificationsWeight
SpecificationsWireless LAN- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO
