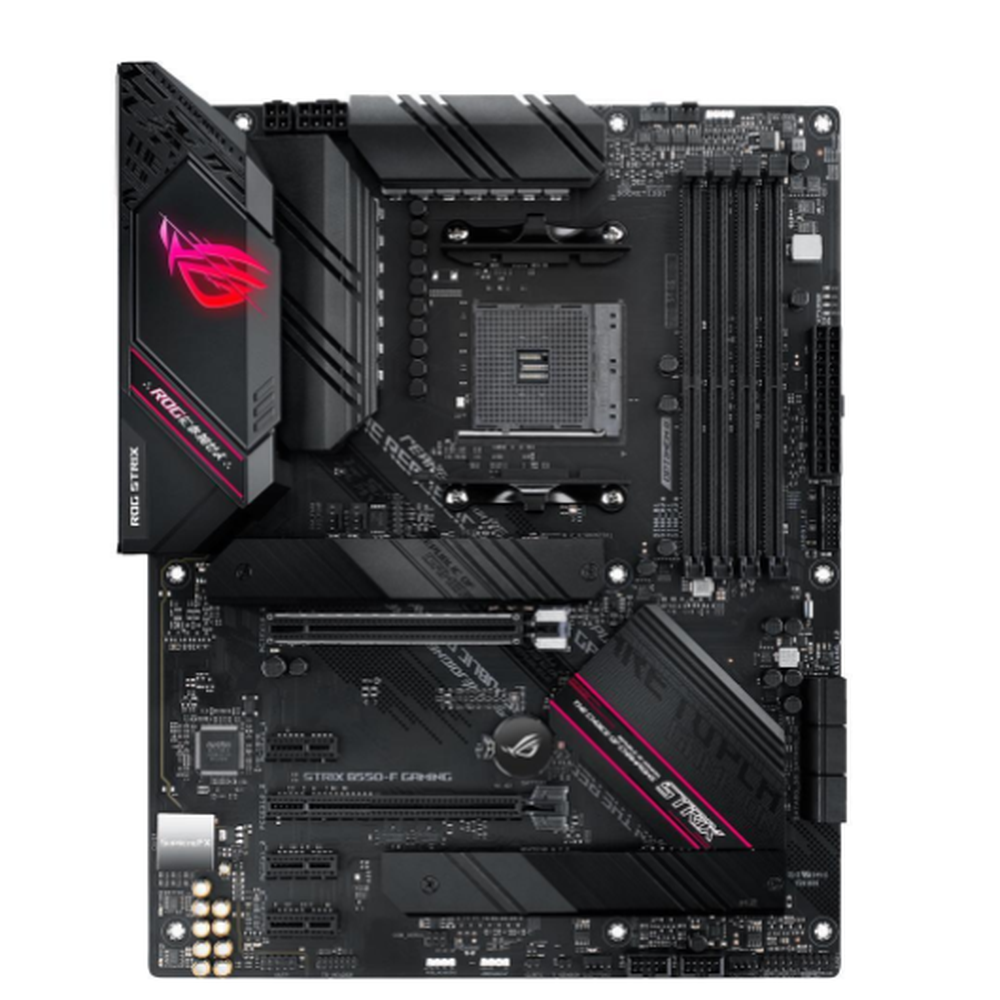

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Specifications | Chipset | AMD B550 |
| Specifications | Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |

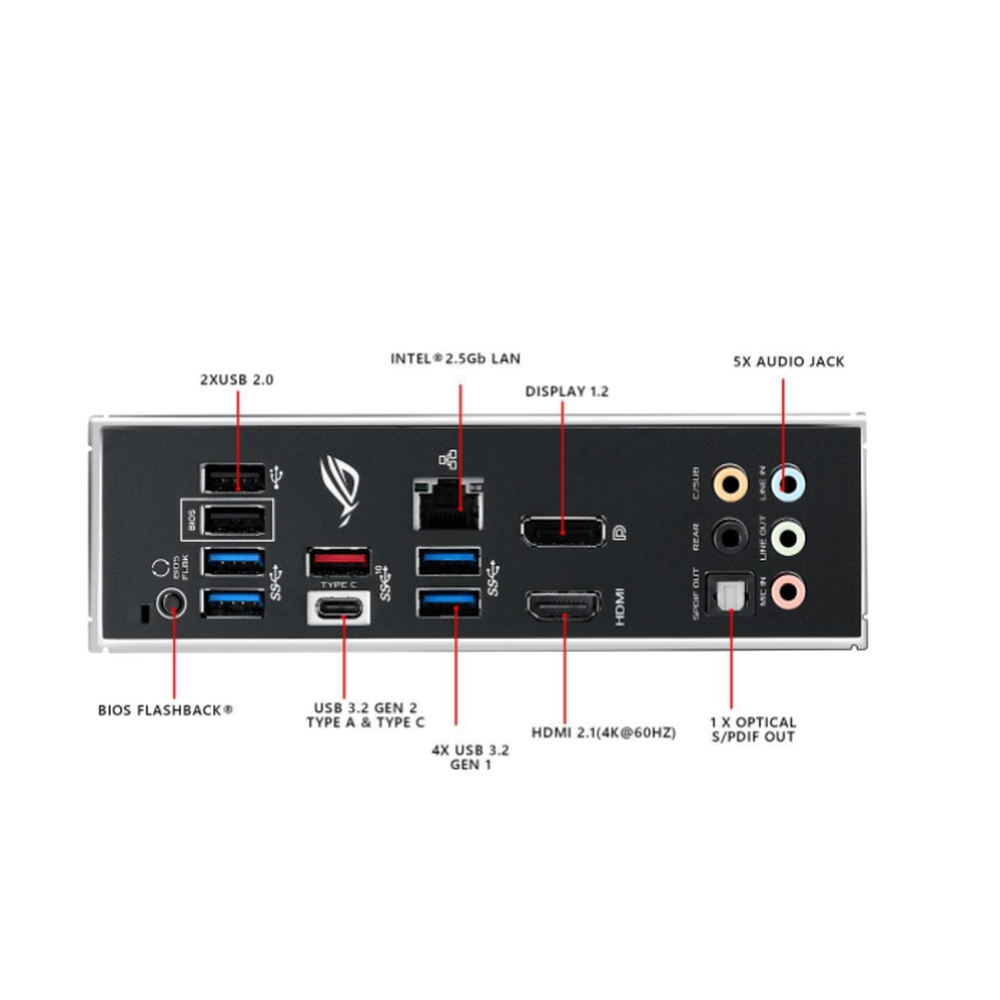

| Specifications | I/O Connectors | 1x Intel® I225-V 2.5Gb Ethernet , 1x DisplayPort , 1x HDMI , 2 x USB 3.2 Gen 2 (, 1x Type-A+, 1x USB Type-C®) , 4 x USB 3.2 Gen 1 , 2 x USB 2.0 , 1x Optical S/PDIF out , 1x BIOS FlashBack Button(s) , 5 x Gold-plated audio jacks , ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor 1 x DisplayPort 1.2, 1 x HDMI 2.1(4K@60HZ) |
| Specifications | LAN | Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Specifications | PCI Slots | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 |
| Specifications | Processor Support | 3rd Gen AMD Ryzen Processors |
| Specifications | Raid | Support Raid 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Specifications | Socket | AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors |
| Specifications | Storage Interface | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
