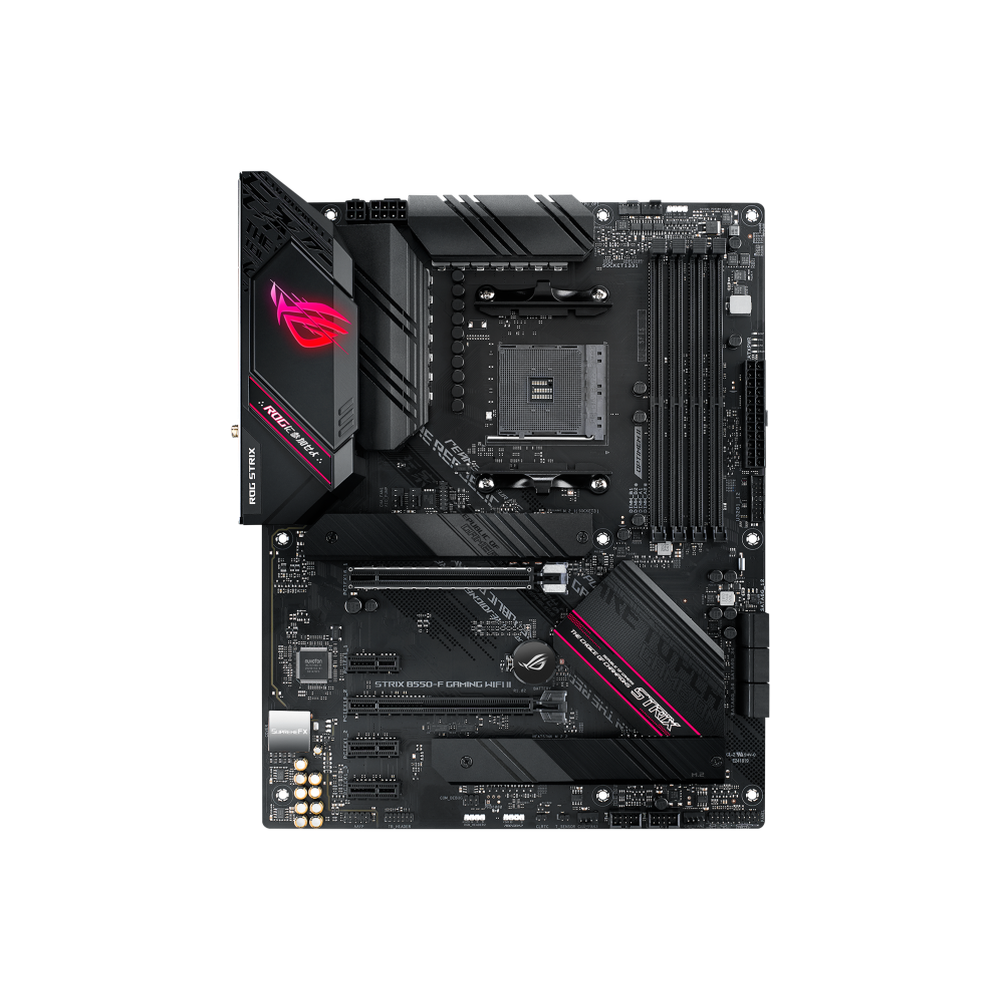

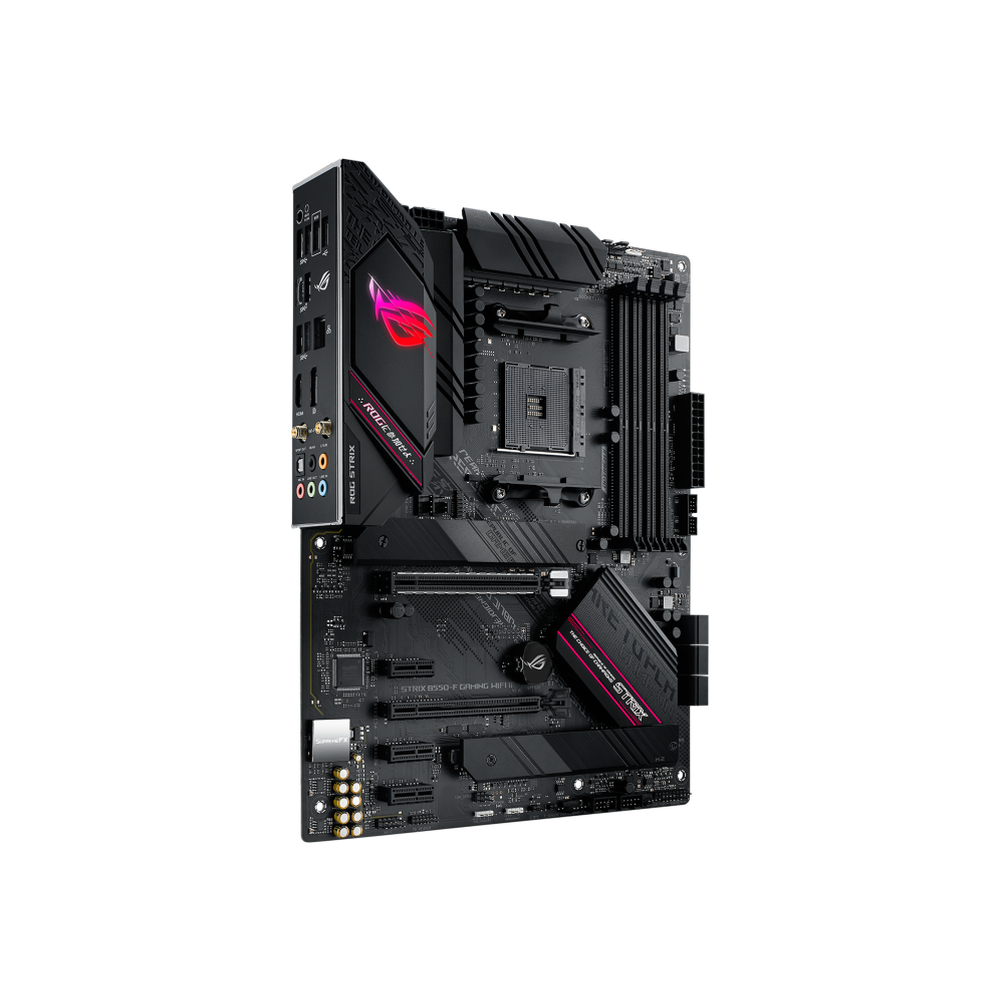

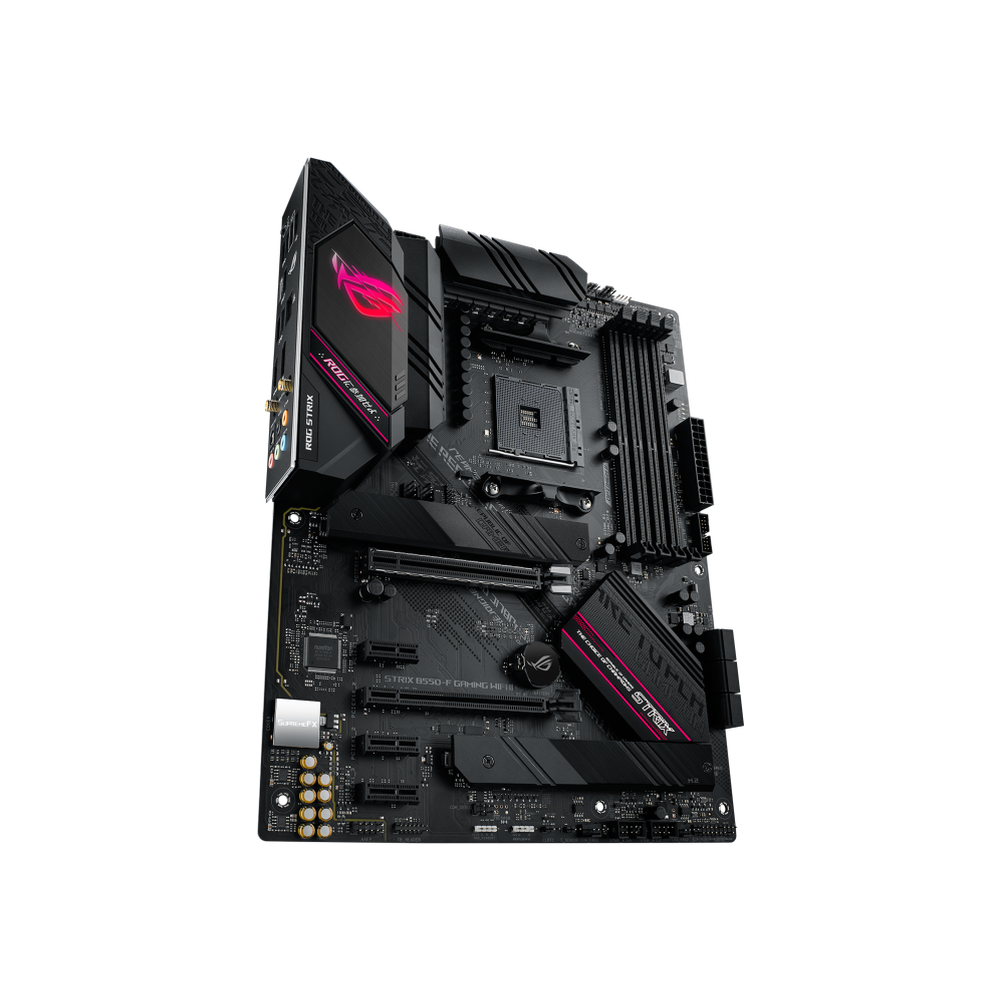

ROG STRIX B550-F GAMING WIFI II
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe�� 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
ROG Strix B550-F Gaming WiFi II
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.
ADVANCE YOUR GAMING IMMERSION
ROG Strix B550-F Gaming WiFi II is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
ALL-ROUND PERFORMANCE
ROG Strix B550-F Gaming WiFi II provides robust power delivery to fuel Ryzen’s cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
PLAY YOUR OWN STYLE
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming WiFi II are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Accessories | Cables 1 x Addressable RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
| Specifications | Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A |
| Specifications | Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI® port 1 x Intel® I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBackTM button |
| Specifications | BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Specifications | Chipset | AMD B550 |
| Specifications | Form Factor | ATX 30.5cm x 24.4cm |
| Specifications | I/O Connectors | Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Power related 1 x 24-pin main power connector 1 x 8-pin +12V power connector 1 x 4-pin +12V power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt header |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort 1.2, 1 x HDMI® 2.1 |
| Specifications | LAN | 1 x Intel® 2.5Gb Ethernet, 1 x Intel® I225-V 2.5Gb Ethernet , ASUS LANGuard |
| Specifications | Manageability | WOL by PME, PXE |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 |
| Specifications | PCI Slots | 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode), 1 x PCIe 3.0 x16 slot (supports x4 mode), 3 x PCIe 3.0 x1 slots |
| Specifications | Processor Support | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Specifications | RAID | Support RAID 0, 1, 10 |
| Specifications | RAM Type/Bus/Max | N/A |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 |
| Specifications | Socket | Ryzen AMD AM4 |
| Specifications | Software Features | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Specifications | Special Features | ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Specifications | USB | Rear USB: Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 |
