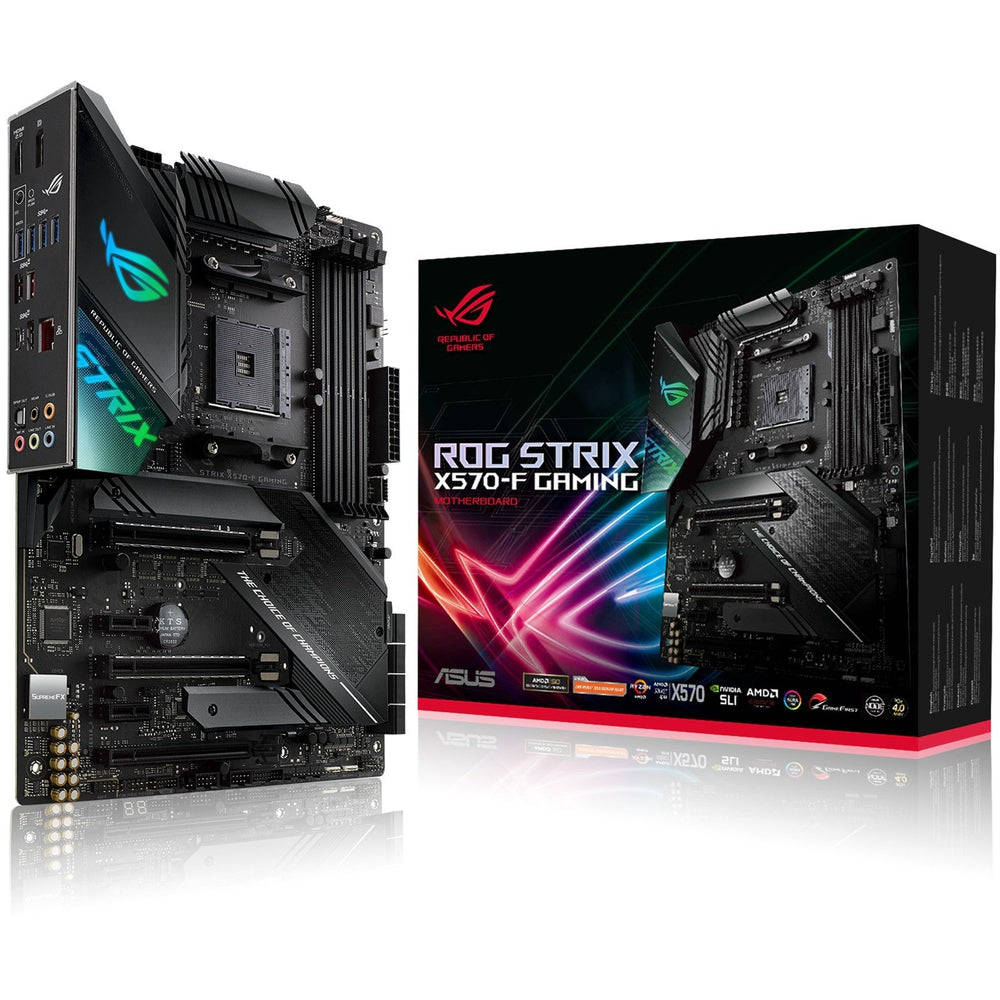

AMD X570 ATX gaming motherboard with PCIe 4.0, Aura Sync RGB lighting, Intel Gigabit Ethernet, dual M.2 with heatsinks, SATA 6Gb/s and USB 3.2 Gen 2
AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers
Comprehensive cooling: Active PCH heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | |
| Specifications | Chipset | AMD X570 |
| Specifications | Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Specifications | I/O Connectors | 1 x DisplayPort, 1 x HDMI, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS FlashbackTM Button(s), 4 x USB 3.2 Gen 1 (up to 5Gbps) ports, 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A), 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C). Anti-surge LAN (RJ45) port |
| Specifications | Integrated CPU Graphics | |
| Specifications | LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) |
| Specifications | Memory/Type/Bus/Max. | |
| Specifications | PCI Slots | |
| Specifications | Processor Support | |
| Specifications | Raid | Support Raid 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | |
| Specifications | Socket | AMD AM4 |
| Specifications | Storage Interface | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support. 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support. AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support, 8 x SATA 6Gb/s port(s), |
| Specifications | Warranty | |
| Specifications | Weight |
