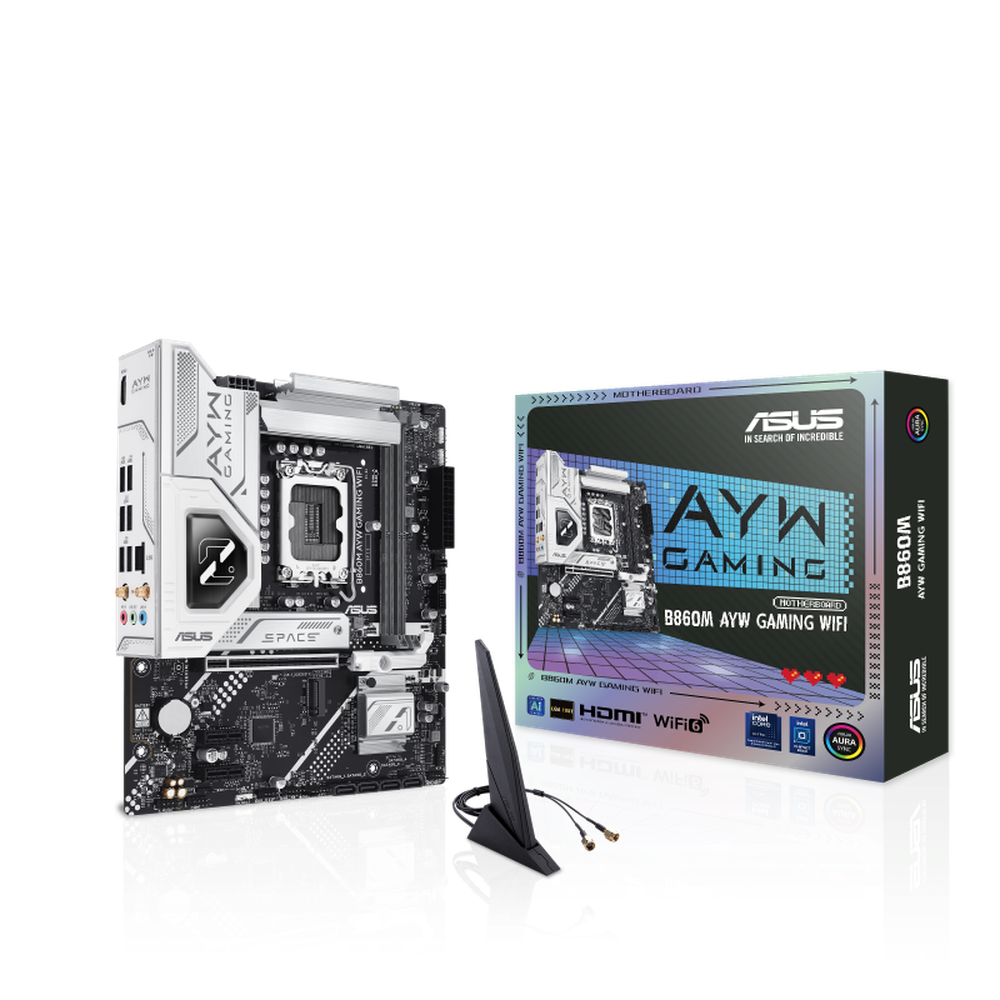

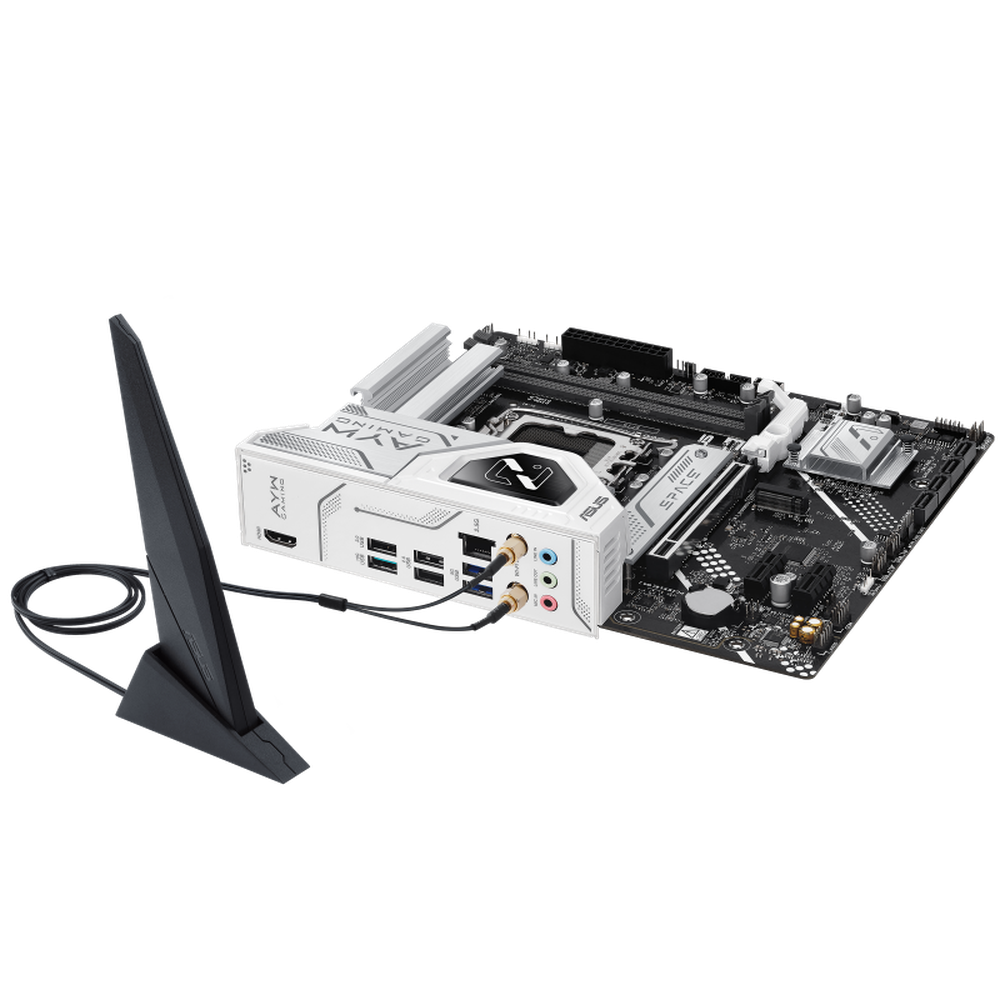

B860M AYW GAMING WIFI
ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODE |
| Specifications | Chipset | Intel® B860 Chipset |
| Specifications | Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm) |
| Specifications | I/O Connectors | 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 3 x USB 2.0 ports (3 x Type-A), 1 x HDMITM port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks |
| Specifications | Integrated CPU Graphics | 1 x HDMI port |
| Specifications | LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Specifications | PCI Slots | Intel® Core Ultra Processors (Series 2): 1 x PCIe 4.0 x16 slot; Intel® B860 Chipset: 2 x PCIe 4.0 x1 slots |
| Specifications | Processor Support | Supports Intel® Core Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Specifications | RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Specifications | RAM Type/Bus/Max | 2 x DIMM slots, max. 128GB, DDR5; Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) |
| Specifications | Socket | LGA1851 |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports: Intel® Core Ultra Processors (Series 2): M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset: M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
| Specifications | Warranty | |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6, 1x1 Wi-Fi 6 (802.11ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.3 |
