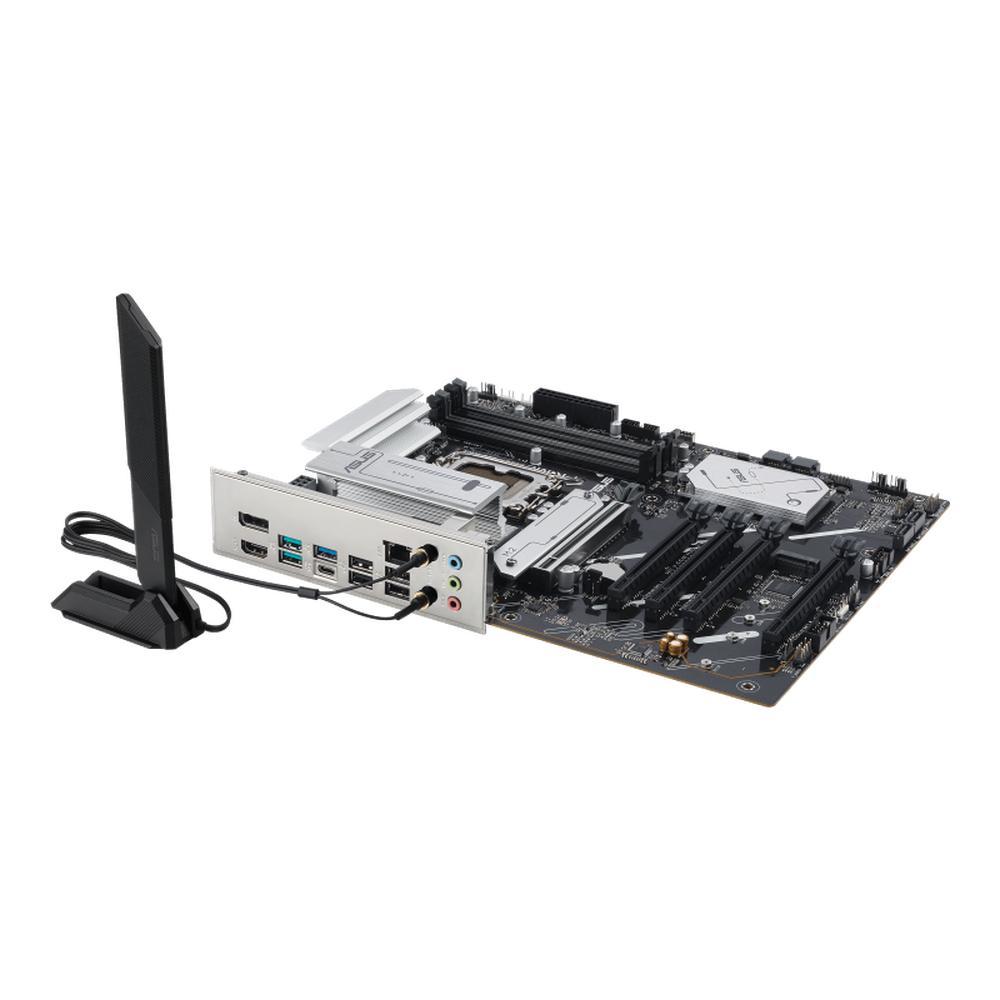

Prime B860-PLUS WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Specifications | Chipset | Intel® B860 Chipset |
| Specifications | Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Specifications | I/O Connectors | 1 x USB 20Gbps port (1 x USB Type-C®), 2 x USB 10Gbps ports (2 x Type-A), 1 x USB 5Gbps port (1 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMI port |
| Specifications | LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Specifications | PCI Slots | Intel® Core Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot (PCIEX16(G5)); Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode), 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) |
| Specifications | Processor Support | Support Intel® Core Ultra Processors (Series 2) |
| Specifications | RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Specifications | RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III) |
| Specifications | Socket | LGA1851 |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports- Intel® Core Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Specifications | Warranty | |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3 |
