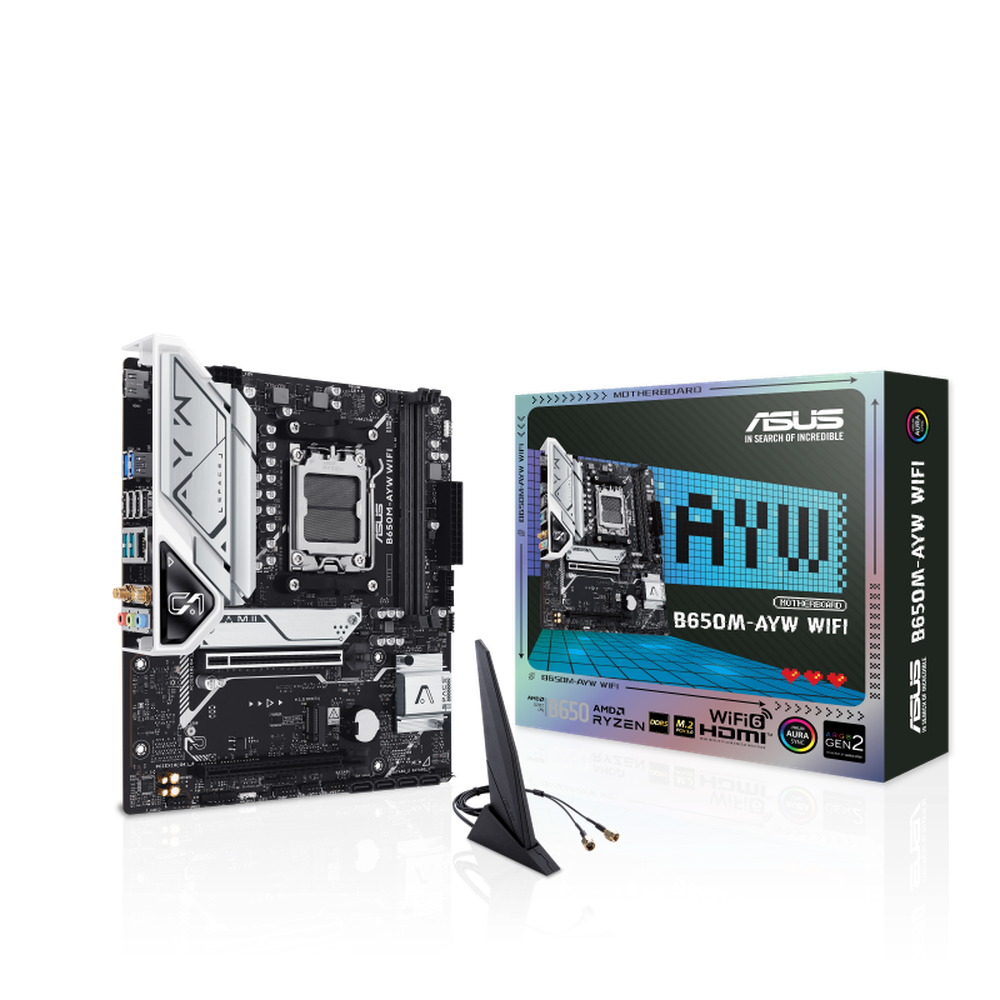

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2 support, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Specifications | Chipset | AMD B650 Chipset |
| Specifications | Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |

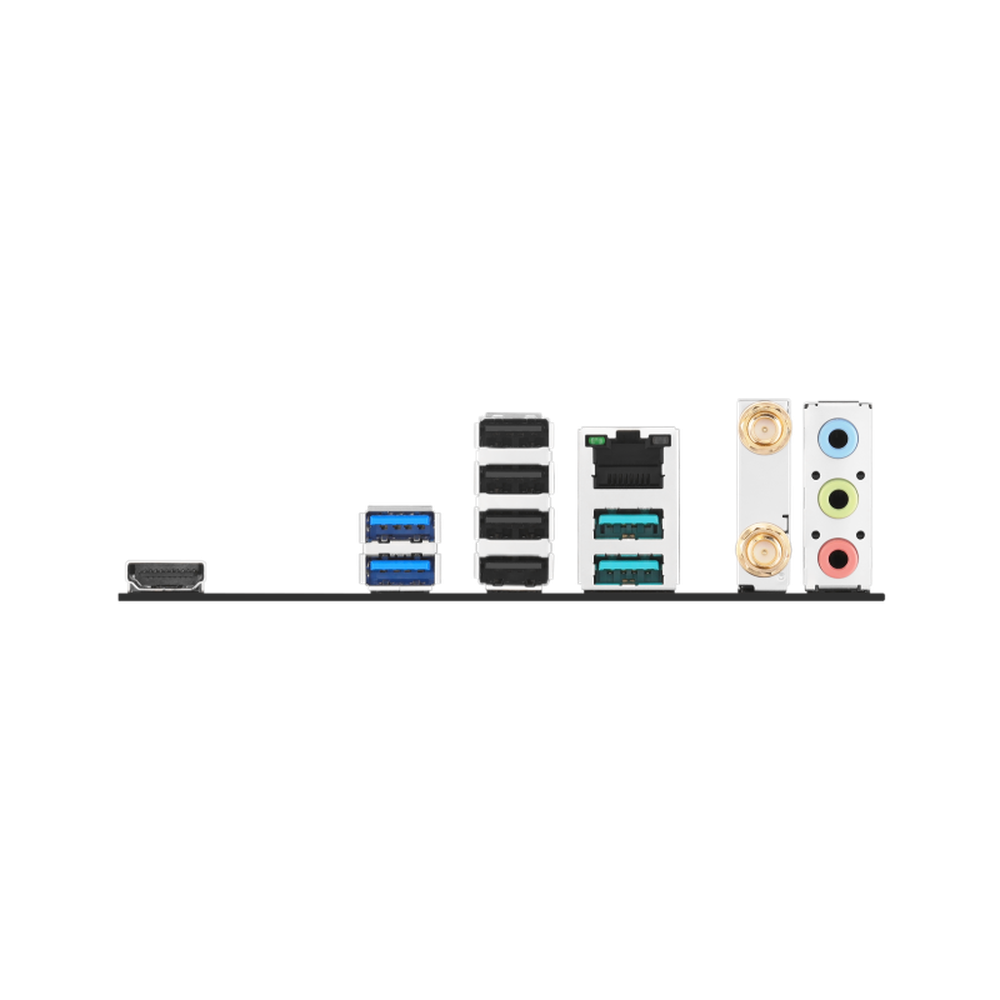

| Specifications | I/O Connectors | 2 x USB 10Gbps ports (2 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks |
| Specifications | Integrated CPU Graphics | 1 x HDMI port |
| Specifications | LAN | 1 x Realtek 2.5Gb Ethernet |
| Specifications | PCI Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Specifications | Processor Support | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Specifications | RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Specifications | RAM Type/Bus/Max | 2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), OptiMem II |
| Specifications | Socket | AMD Socket AM5 |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode); AMD B650 Chipset: 4 x SATA 6Gb/s ports |
| Specifications | Warranty | |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.3 |
