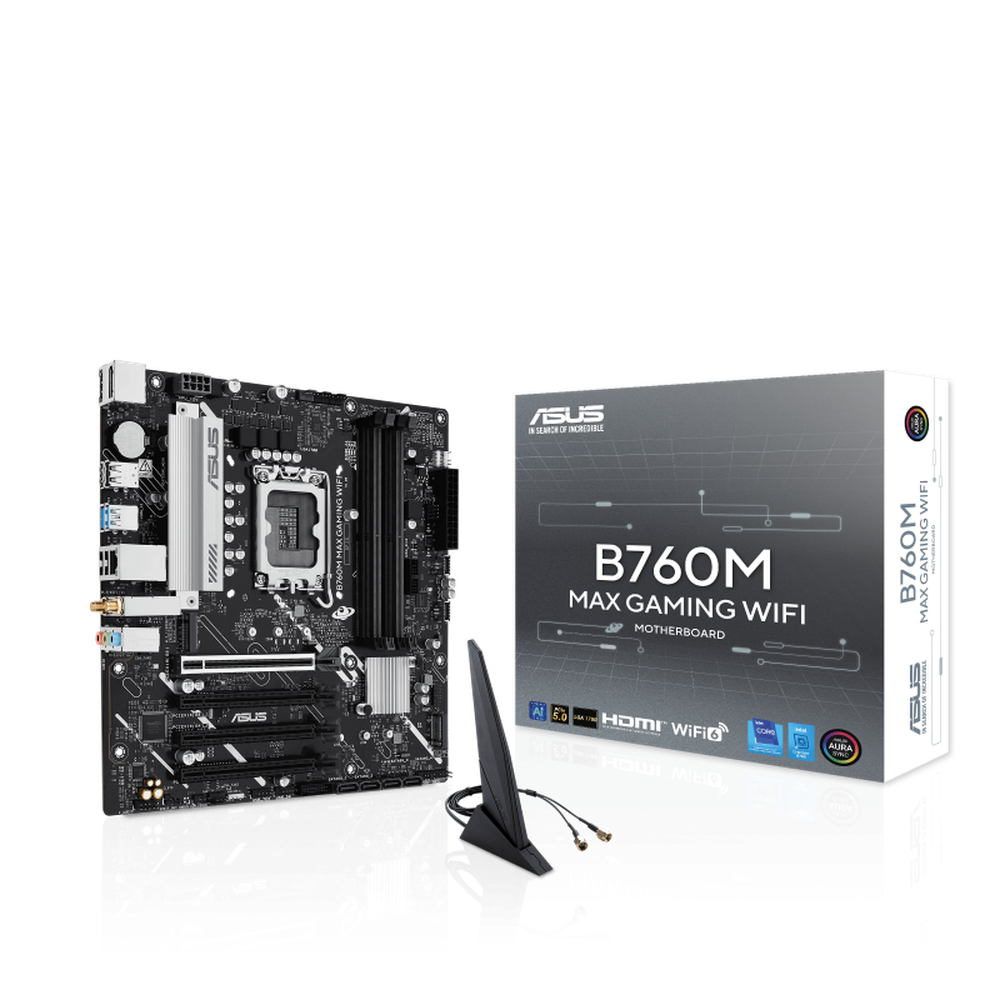

B760M MAX GAMING WIFI
Intel® B760 (LGA 1700) mATX motherboard, PCIe 5.0, DDR5, three M.2 slots, Realtek 1Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th ,13th and 12th Gen Intel® Core™ processors
- Ultrafast Connectivity: PCIe 5.0, DDR5, three M.2 slots, Realtek 1Gb Ethernet, Wi-Fi 6, rear USB 10Gbps, front USB 5Gbps Type-C®
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers , easily synced with Aura Sync-capable hardware
- CEC Tier II ready
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Specifications | Chipset | Intel® B760 Chipset |
| Specifications | Form Factor | mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Specifications | I/O Connectors | 2 x USB 10Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 1Gb Ethernet, 3 x Audio jacks |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort, 1 x HDMITM port |
| Specifications | LAN | 1 x Realtek 1Gb Ethernet |
| Specifications | PCI Slots | Intel® Core Processors (14th & 13th & 12th Gen): 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x16 slot (support x1 mode) |
| Specifications | Processor Support | Intel® Socket LGA1700 for Intel® Core14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors |
| Specifications | RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Specifications | RAM Type/Bus/Max | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II |
| Specifications | Socket | Intel® Socket LGA1700 |
| Specifications | Storage Interface | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode), 4 x SATA 6Gb/s ports |
| Specifications | Warranty | |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.3 |
