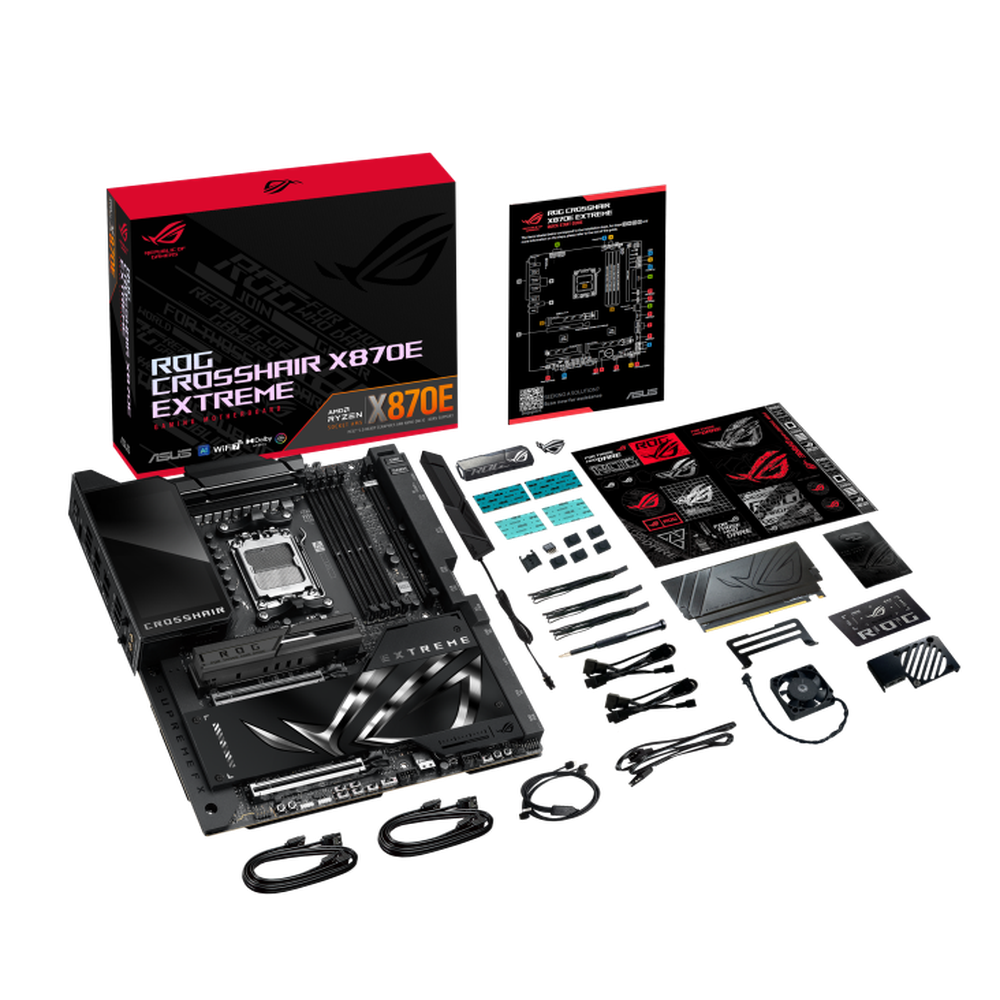

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Specifications | Chipset | AMD X870E |
| Specifications | Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |

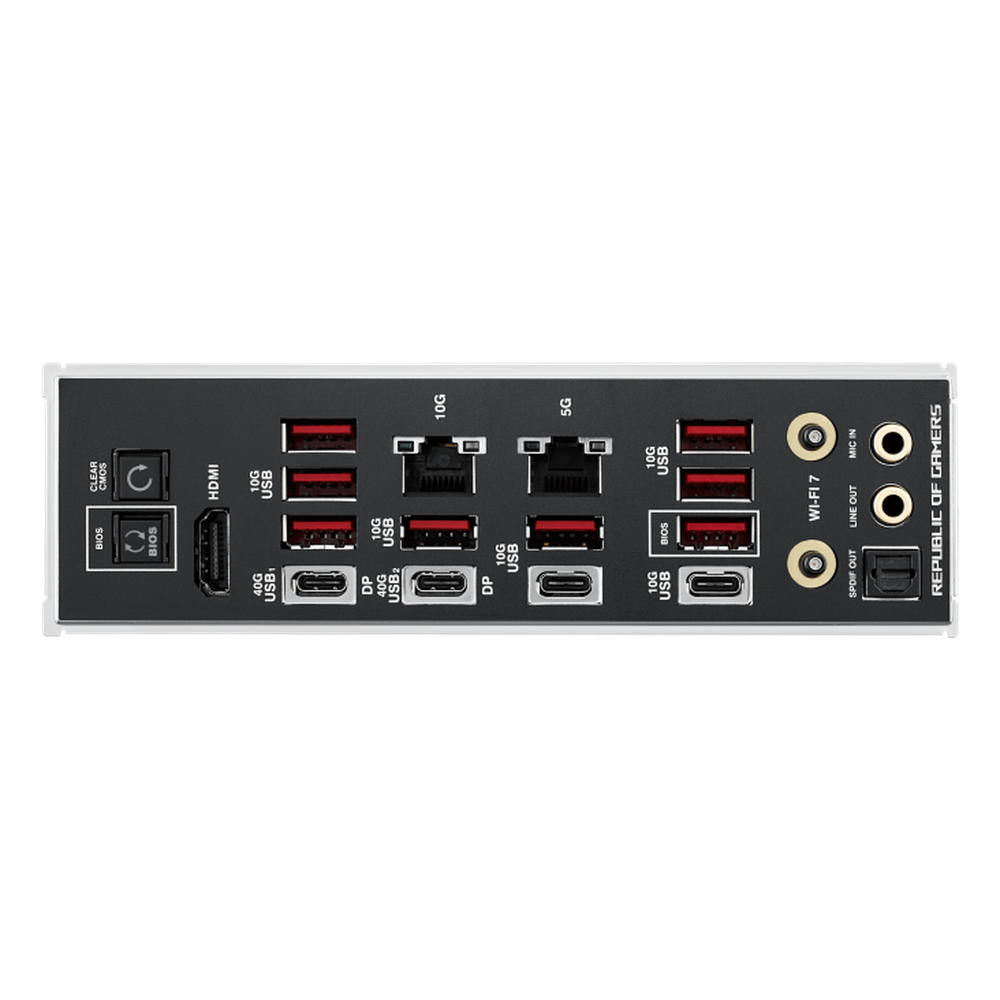

| Specifications | I/O Connectors | 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®), 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet port, 1 x Marvell® AQtion 10Gb Ethernet port, 2 x LED-illuminated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| Specifications | Integrated CPU Graphics | 1 x HDMI port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Specifications | LAN | 1 x Realtek 5Gb Ethernet, 1 x Marvell® AQtion 10Gb Ethernet, ASUS LANGuard |
| Specifications | PCI Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8. ***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4. **** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled). AMD Ryzen 8500 & 8300 Series Desktop Processors: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled) |
| Specifications | Processor Support | AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Specifications | RAID | |
| Specifications | RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 9000+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM; Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology |
| Specifications | Socket | AMD Socket AM5 |
| Specifications | Storage Interface | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. ** When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled. |
| Specifications | Warranty | |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) , Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Bluetooth® v5.4 |
