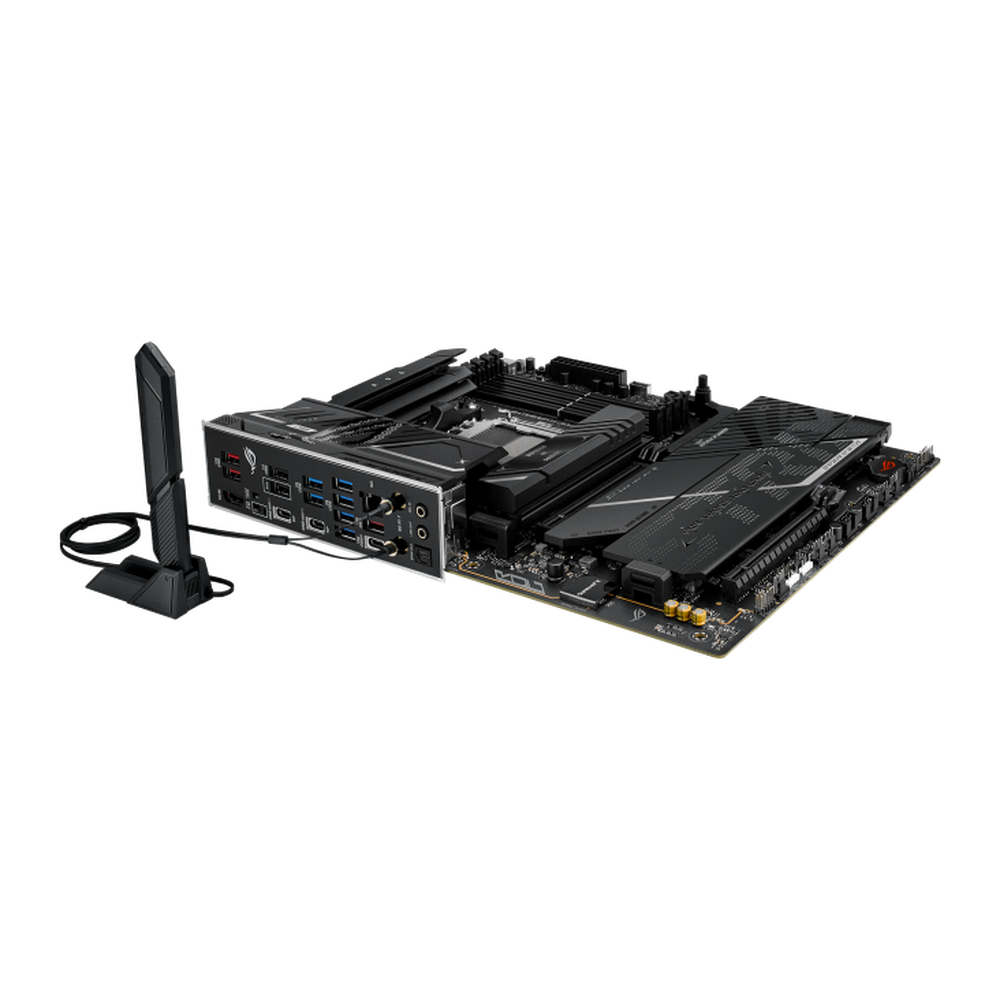

ROG STRIX X870E-H GAMING WIFI7
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.s
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Specifications | Chipset | AMD X870E |
| Specifications | Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Specifications | I/O Connectors | 2 x USB4® (40Gbps) ports(2 x USB Type-C®), 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge), 6 x USB 5Gbps ports (6 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet, 2 x Audio jacks , 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| Specifications | Integrated CPU Graphics | 1 x HDMI port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Specifications | LAN | 1 x Realtek 5Gb Ethernet, ASUS LANGuard |
| Specifications | PCI Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Specifications | Processor Support | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Specifications | RAID | AMD RAIDXpert2 Technology: Ryzen 9000 Series Processors: RAID 0/1/5/10, Ryzen 8000 Series Processors: RAID 0/1, Ryzen 7000 Series Processors: RAID 0/1/10 |
| Specifications | RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); Supports DIMM Fit / DIMM Fit Pro; ASUS Enhanced Memory Profile (AEMP) |
| Specifications | Socket | AMD Socket AM5 |
| Specifications | Storage Interface | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), M.2_2 slot (Key M), type 2280/22110 (Not supports); AMD X870E Chipset: M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Specifications | Warranty | |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 7 (Realtek® RTL8922AE), 2x2 Wi-Fi 7* (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, Bluetooth® v5.4 |
