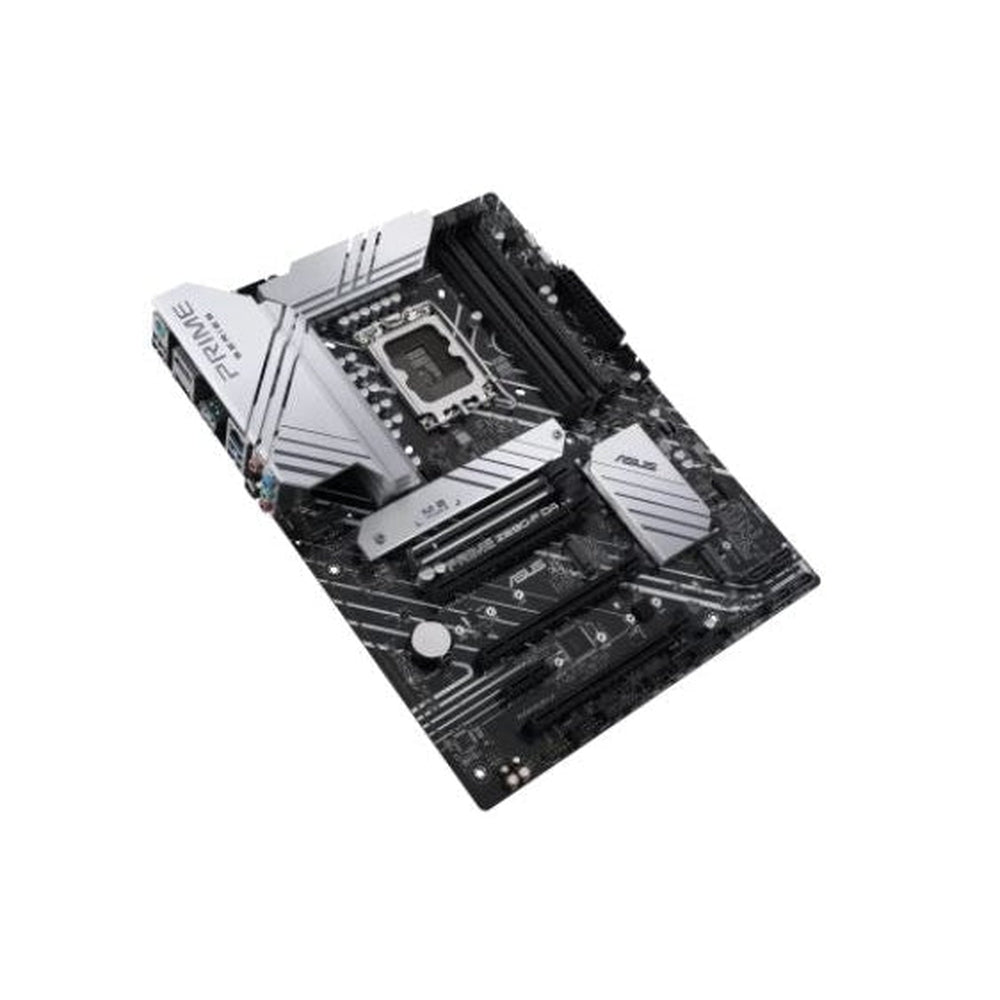

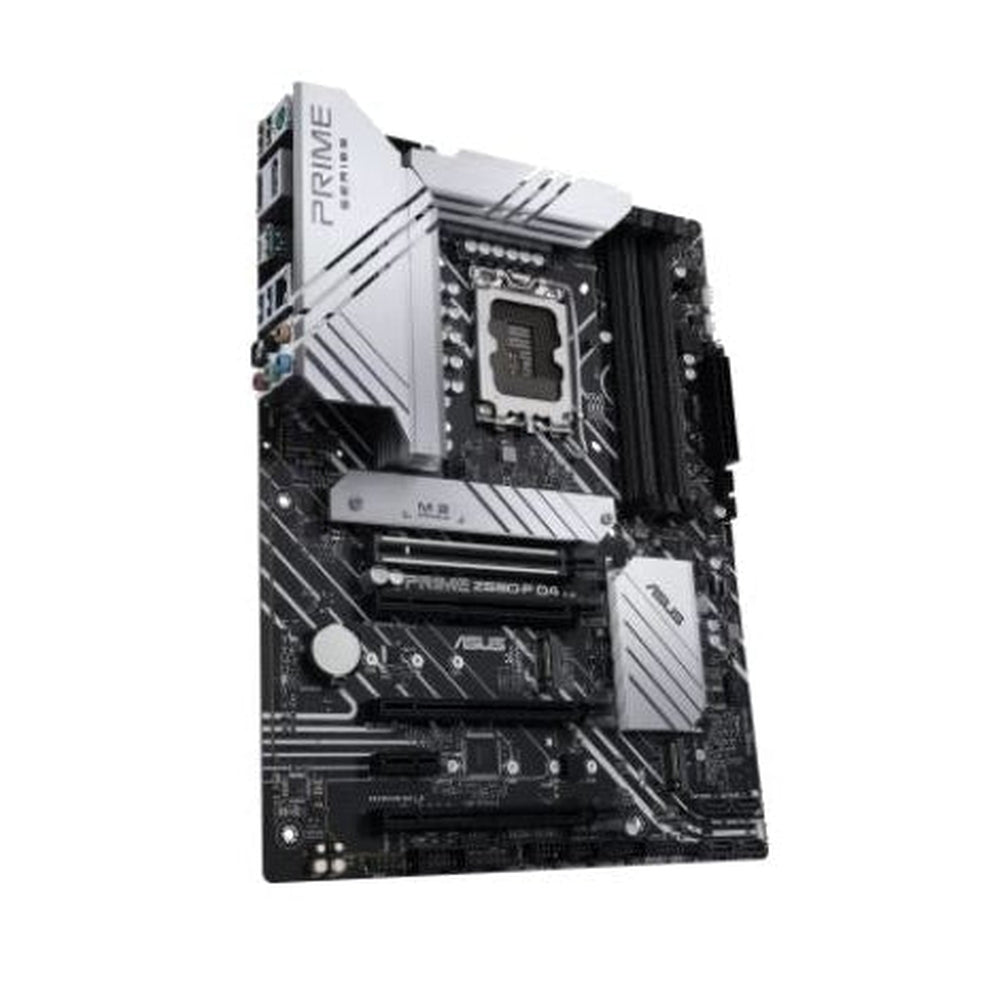

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS power stages, DDR4, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
· Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
· Enhanced power solution: 14+1 DrMOS power stages, 8+4 pin ProCool connectors, alloy chokes and durable capacitors for stable power delivery
· Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
· ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
· Next-gen connectivity: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
· ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Specifications | Chipset | Z690 |
| Specifications | Form Factor | ATX 30.5cm x 23.4cm |
| Specifications | I/O Connectors | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI® Port***, **Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Specifications | LAN | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Specifications | PCI Slots | Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Specifications | Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Specifications | Raid | |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Specifications | Socket | Intel® Socket LGA1700 for 12th Gen Intel® Core |
| Specifications | Storage Interface | NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
| Specifications | Warranty | 3 Years warranty |
| Specifications | Weight | 1.71Kgs |
