Product description

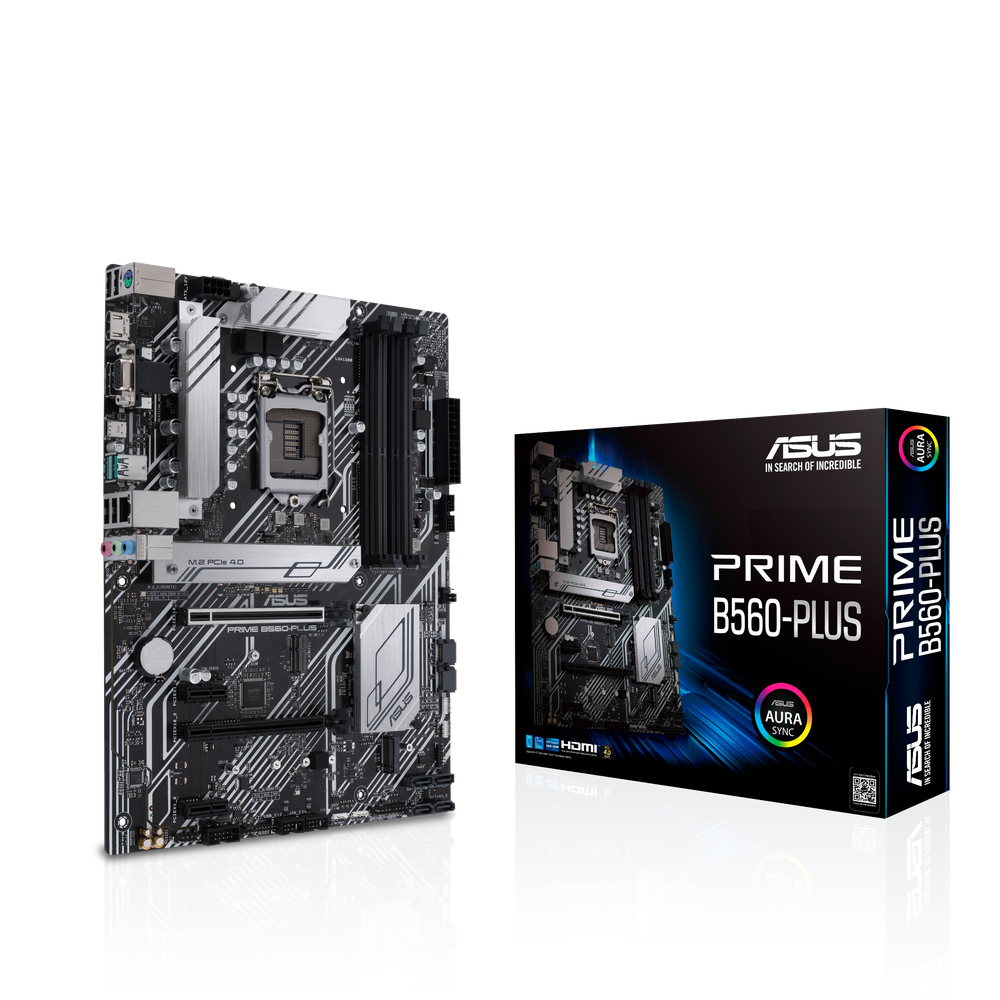

Intel® B560 (LGA 1200) ATX motherboard with PCIe® 4.0, two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-C®, rear USB 3.2 Gen 2, Thunderbolt™ 4 header support, Aura Sync, and Aura Sync RGB lighting

  • Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
  • Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 header support
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAccessoriesCables: 2 x SATA 6Gb/s cables | Miscellaneous: 1 x M.2 Rubber Package, 1 x IO Shield, 1 x M.2 SSD screw package, 1 x M.2 Key E screw package | Installation Media: 1 x Supporting DVD | Documentation: 1 x User's manual
SpecificationsAudioRealtek ALC897 7.1-Channel High Definition Audio CODEC* Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback | Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
SpecificationsBIOS128 Mb Flash ROM, UEFI AMI BIOS
SpecificationsChipsetIntel® B560 Chipset
SpecificationsForm FactorATX 30.5cm x 23.4cm
SpecificationsI/O Connectors1 x DP port, 1 x HDMI port, 1 x D-Sub port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port, 1 x Intel® I219-V 1Gb Ethernet port, 4 x USB 2.0 ports (4 x Type-A), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 1x USB 3.2 Gen 1 port (1 x USB Type-C®)
SpecificationsIntegrated CPU Graphics1 x D-Sub, 1 x HDMI 1.4/2.0*** *Graphics specifications may vary between CPU types. ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. ***Only Intel® 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
SpecificationsLAN1 x Intel® I219-V 1Gb Ethernet, ASUS LANGuard
SpecificationsMemory/Type/Bus/Max.4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory* | Dual channel memory architecture | Supports Intel® Extreme Memory Profile (XMP) | ASUS OptiMem * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * 10th Gen Intel® Core i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
SpecificationsOperating SystemWindows 10 64bit
SpecificationsPCI SlotsIntel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 | Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)*, 2 x PCIe 3.0 x1 slots *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
SpecificationsProcessor SupportIntel® Socket LGA1200 for 11th Gen Intel® Core Processors & 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors | Supports Intel® 14nm CPU | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
SpecificationsRaid-
SpecificationsRAM Type/Bus/Max.4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory* | Dual channel memory architecture | Supports Intel® Extreme Memory Profile (XMP) | ASUS OptiMem * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * 10th Gen Intel® Core i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
SpecificationsSocketLGA1200
SpecificationsSpecial FeaturesASUS 5X PROTECTION III: - ASUS DIGI+VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O | ASUS Q-Design: - ASUS Q-DIMM - ASUS Q-Slot | ASUS Thermal Solution: - Flexible M.2 heatsink - VRM heatsink design | ASUS EZ DIY: - Box Headers | AURA SYNC: - AURA RGB headers - Addressable Gen 2 RGB headers
SpecificationsStorage InterfaceIntel® 11th Gen Processors: - M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | Intel® B560 Chipset: - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes) - 6 x SATA 6Gb/s ports When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used
