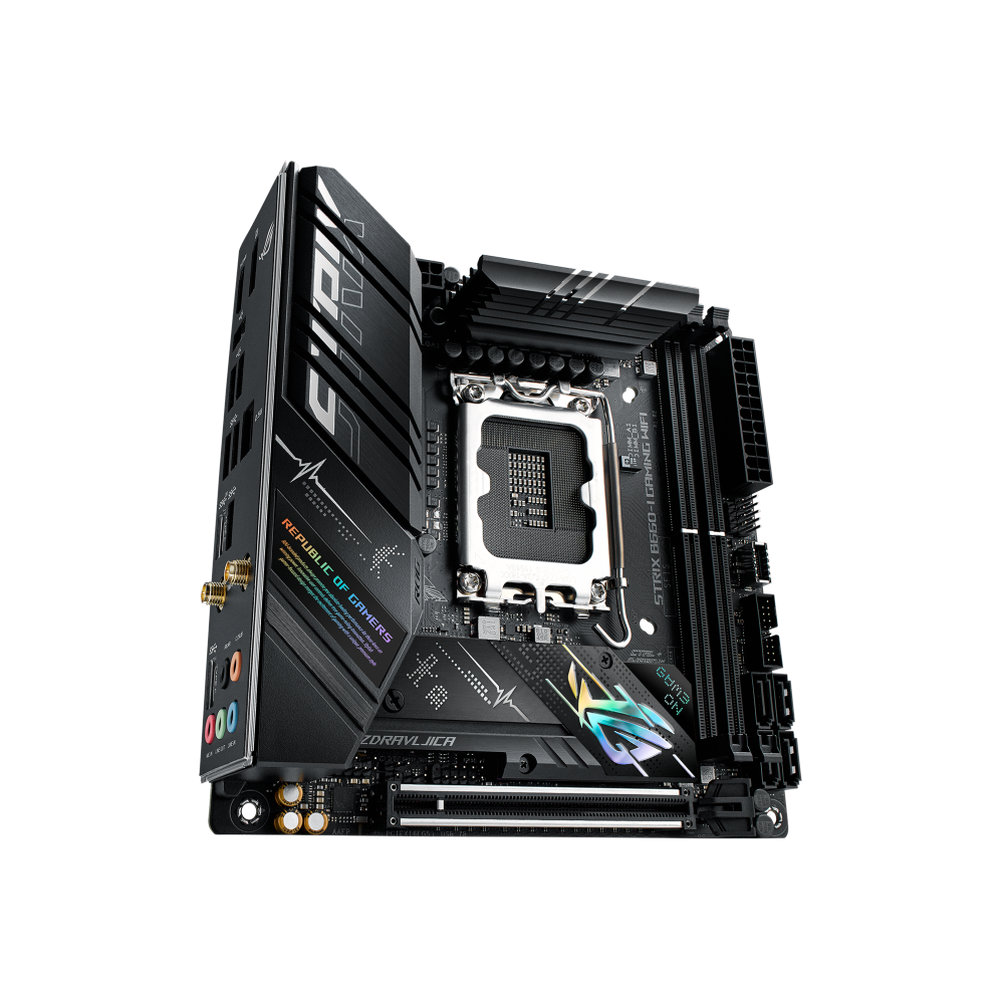

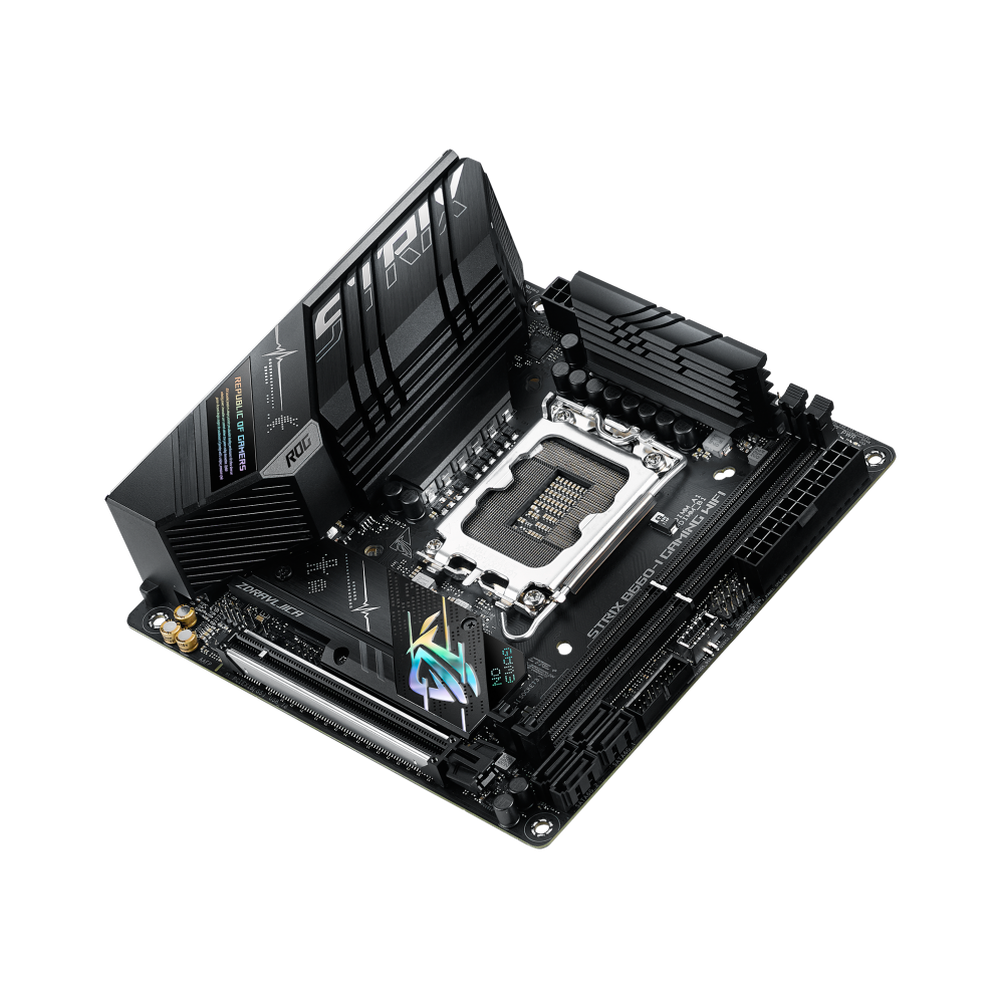

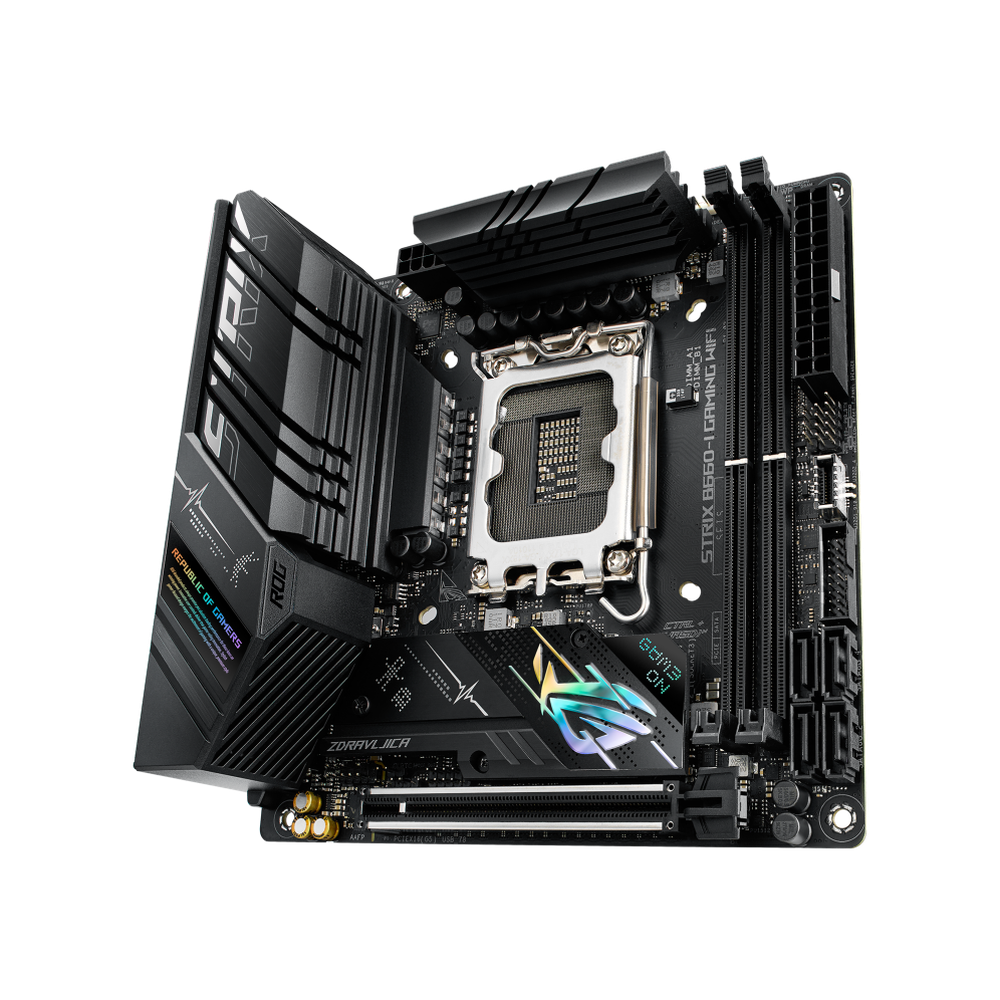

ROG STRIX B660-I GAMING WIFI
Intel® B660 LGA 1700 ITX motherboard with PCIe® 5.0, 8+1 power stages, DDR5 memory support, ASUS Enhanced Memory Profile, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, two PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting
- Intel®LGA 1700 Socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® processors
- Optimal Power Solution: 8+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, one onboard M.2 heatsink, and one M.2 backplate
- High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and an addressable Gen 2 RGB header
- Industry-leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound™ and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Specifications | Chipset | Intel® B660 Chipset |
| Specifications | Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Specifications | I/O Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI® port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI®*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1. |
| Specifications | LAN | 1 x Intel® I225-V 2.5Gb Ethernet |
| Specifications | Memory/Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
| Specifications | PCI Slots | 1 x PCIe 5.0 x16 slot |
| Specifications | Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors |
| Specifications | Raid | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Specifications | RAM Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
| Specifications | Socket | LGA1700 |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel®12th Gen Processors* M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports**** * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2 |
