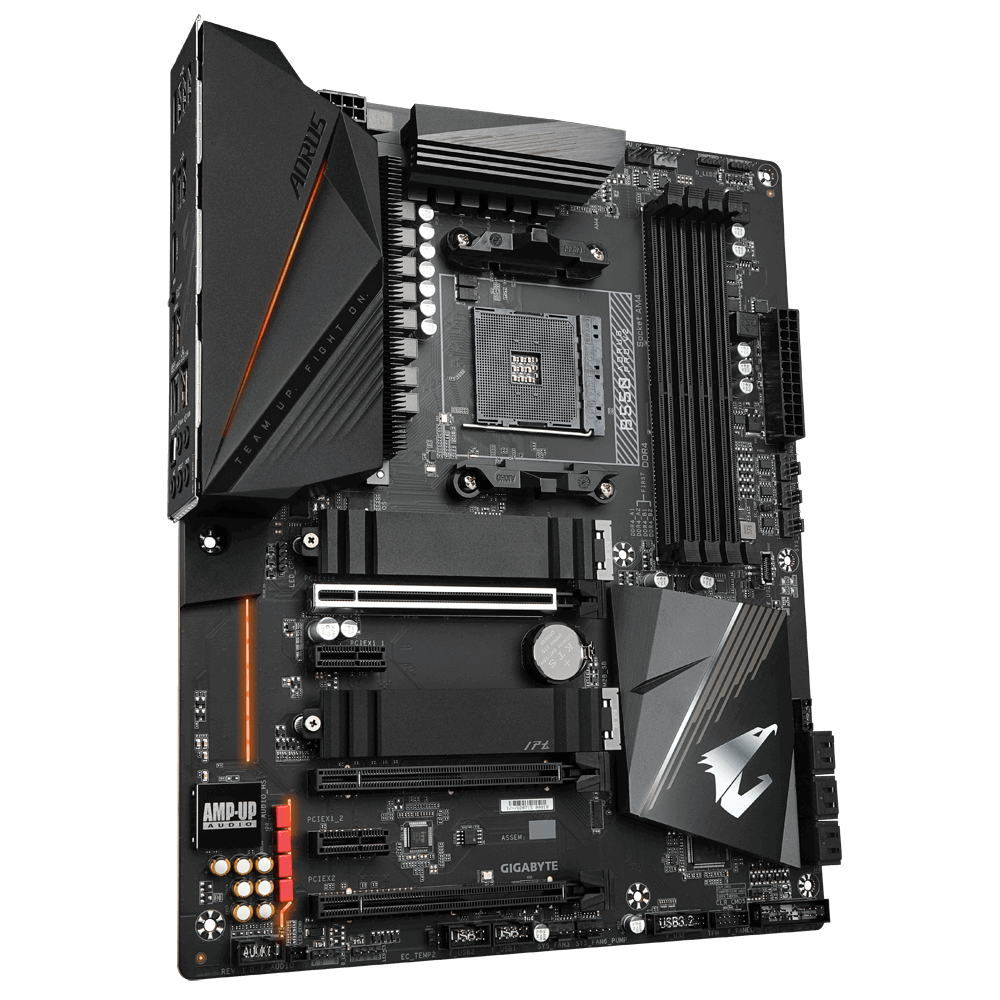

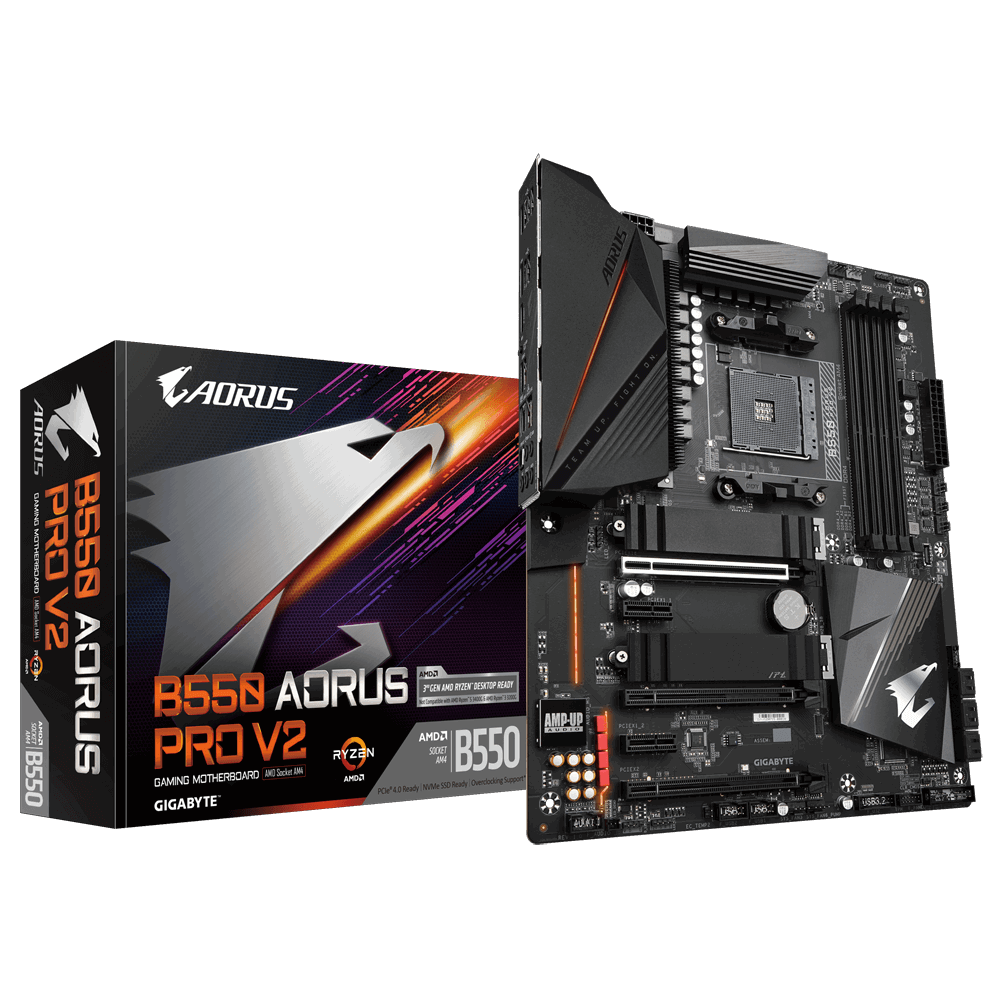

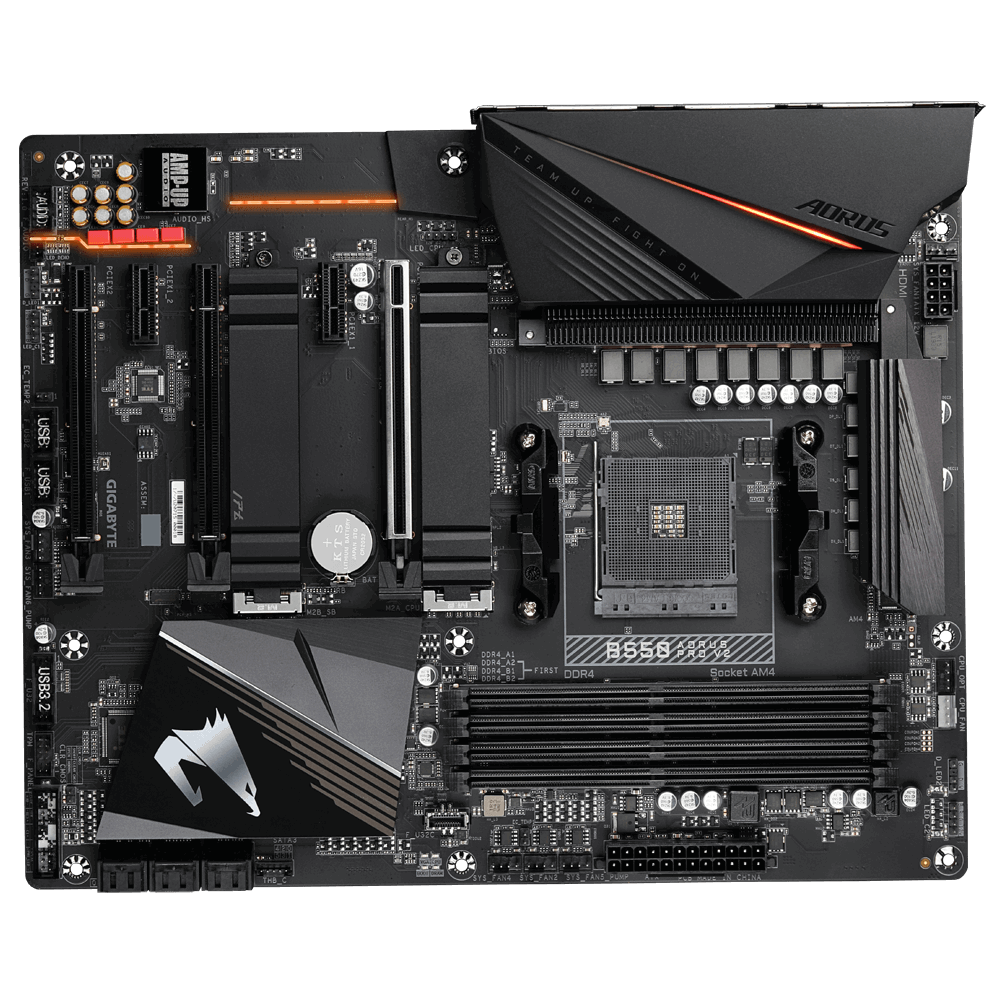

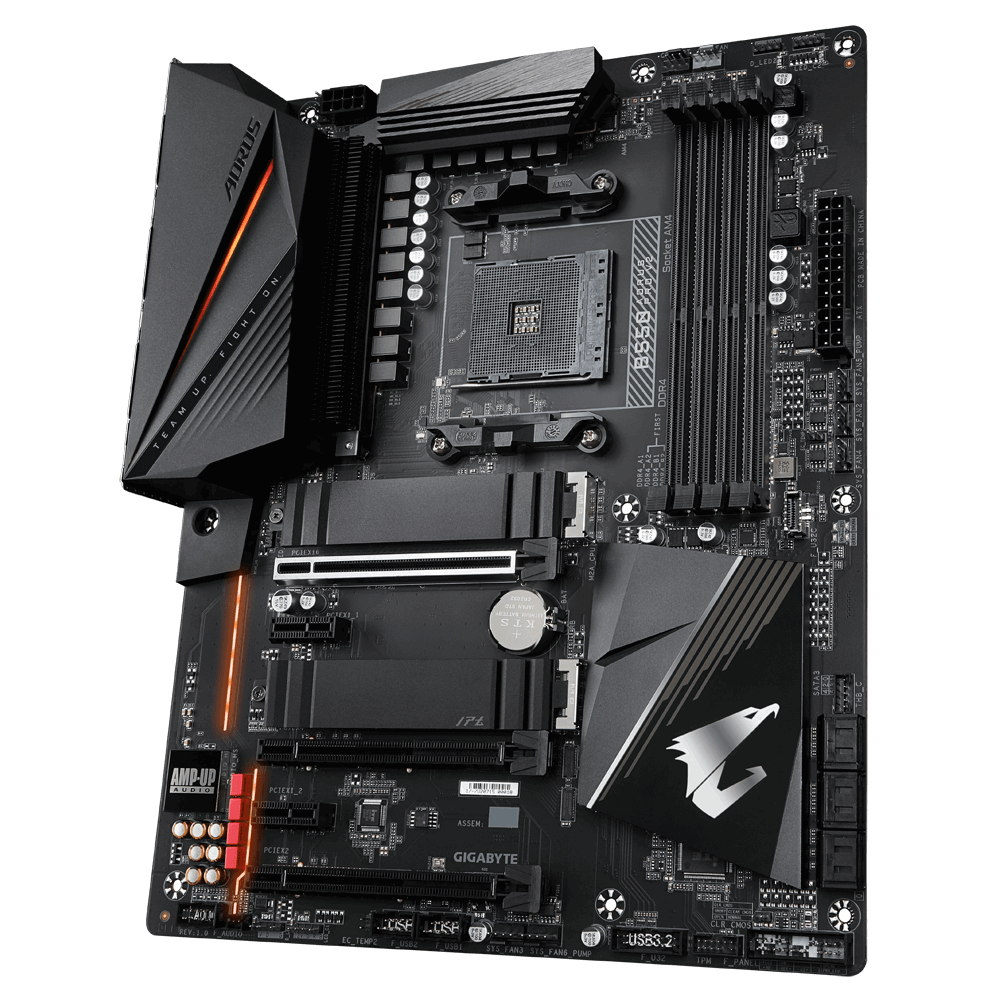

AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, 2.5GbE LAN, Front & Rear USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports 3rd Gen AMD Ryzen™ Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front & Rear USB 3.2 Type-C™ and HDMI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
GroupName | Name | Value |
---|---|---|
Specifications | Audio | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
Specifications | Chipset | AMD B550 |
Specifications | Form Factor | ATX Form Factor; 30.5cm x 24.4cm |

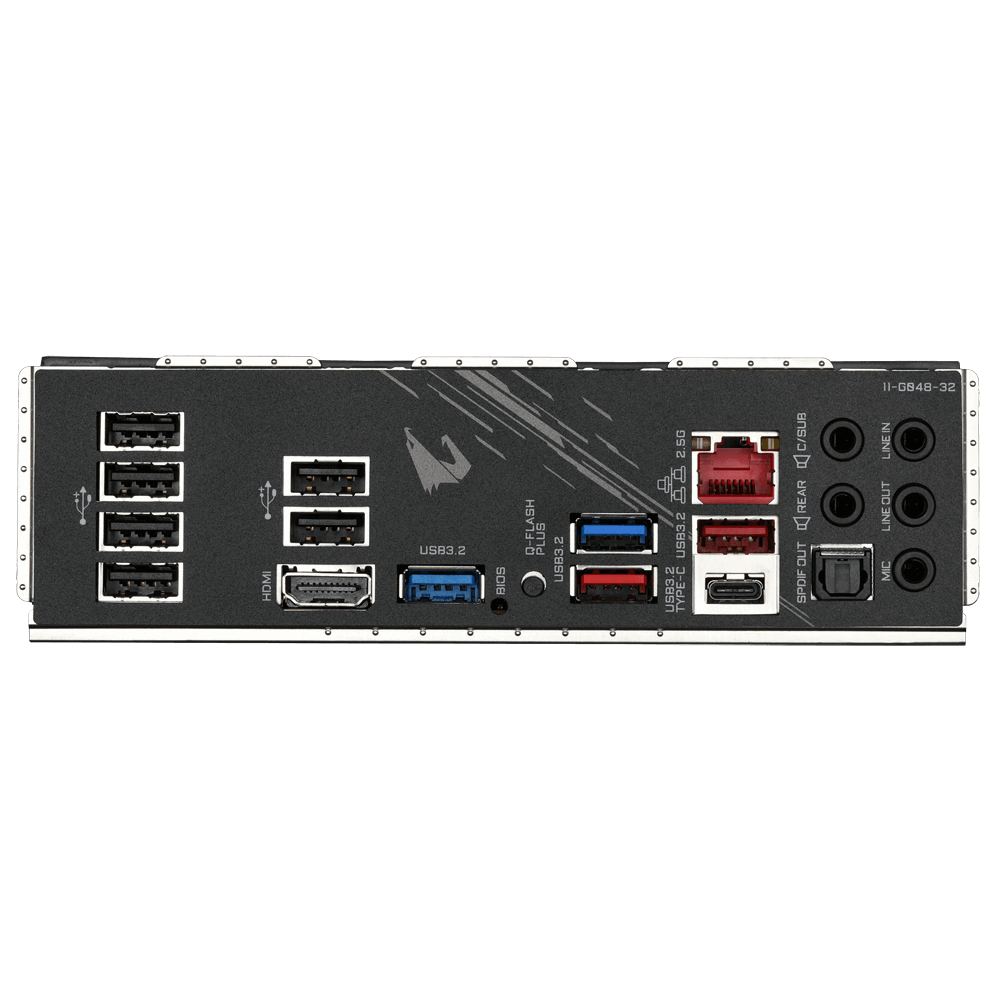

Specifications | I/O Connectors | 1 x HDMI port 2 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
Specifications | Integrated CPU Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
Specifications | LAN | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
Specifications | Memory/Type/Bus/Max. | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Specifications | PCI Slots | 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector. 2 x PCI Express x1 slots |
Specifications | Processor Support | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Gen AMD Ryzen with Radeon Graphics processors (Please refer "CPU Support List" for more information.) |
Specifications | Raid | Support for RAID 0, RAID 1, and RAID 10 |
Specifications | RAM Type/Bus/Max. | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Specifications | Socket | AM4 |
Specifications | Storage Interface | 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: support PCIe 3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
Specifications | Warranty | 3 Years |
Specifications | Weight |
