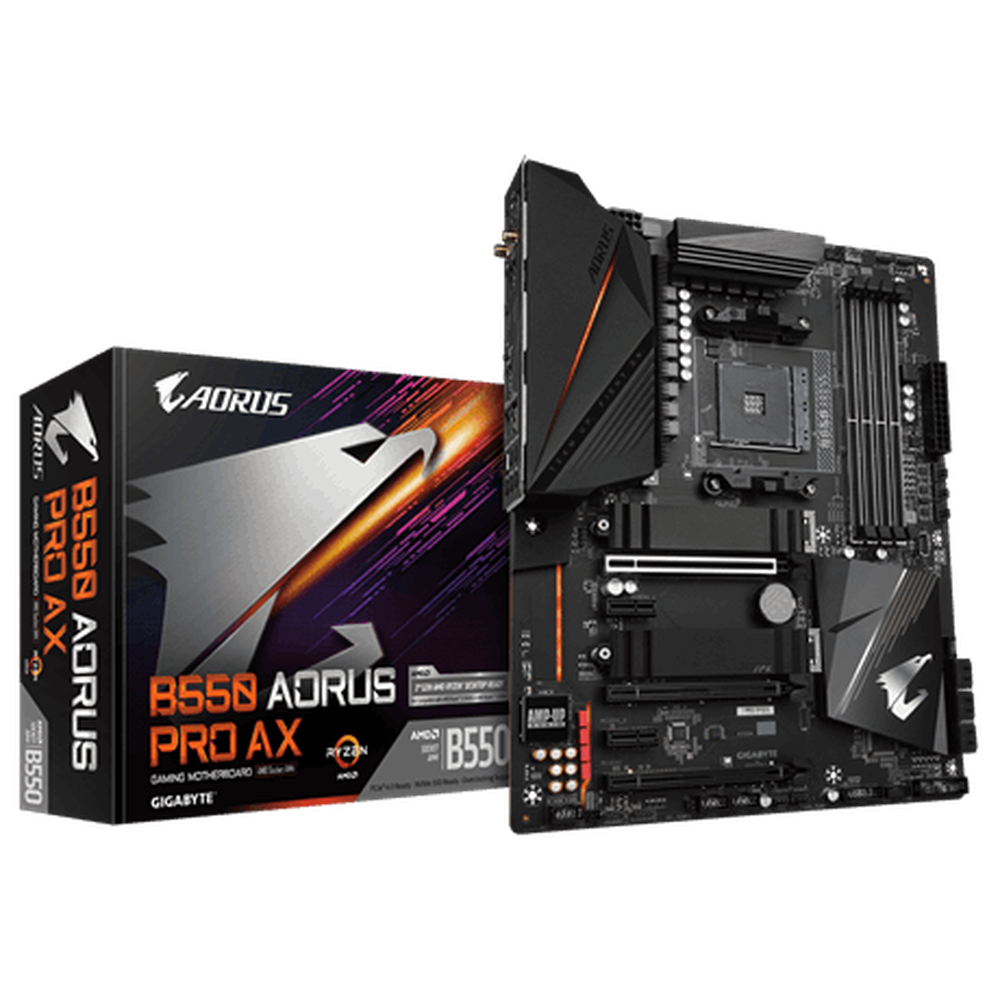

Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX
Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX
Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX
Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX

Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX

$290.00
Tax included.
Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX

Gigabyte B550 AORUS PRO AX AMD ATX Motherboard GA-B550-AORUS-PRO-AX

$290.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Product description

AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front & Rear USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors


  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs


  • 12+2 Phases Digital Twin Power Design with 50A DrMOS


  • Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe


  • Ultra Durable™ PCIe 4.0 Ready x16 Slot


  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards


  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna


  • AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR


  • Blazing Fast 2.5GbE LAN with Bandwidth Management


  • Front & Rear USB 3.2 Type-C™ and HDMI Support


  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips


  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card


  • Pre-installed IO Shield for Easy and Quick Installation
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudioRealtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
SpecificationsBIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SpecificationsChipsetAMD B550
SpecificationsForm FactorATX Form Factor; 30.5cm x 24.4cm
SpecificationsH/W MonitoringVoltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
SpecificationsI/O Connectors1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
SpecificationsIntegrated CPU GraphicsIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
SpecificationsLANRealtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
SpecificationsMemory/Type/Bus/Max.2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
SpecificationsPCI Slots1? x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
SpecificationsProcessor SupportSupport for Windows 10 64-bit
SpecificationsRaidSupport for RAID 0, RAID 1, and RAID 10
SpecificationsRAM Type/Bus/Max.2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
SpecificationsSocketSocket AM4
SpecificationsStorage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
SpecificationsUnique FeaturesSupport for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
SpecificationsUSBCPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
SpecificationsWarranty3 Years
SpecificationsWeight
