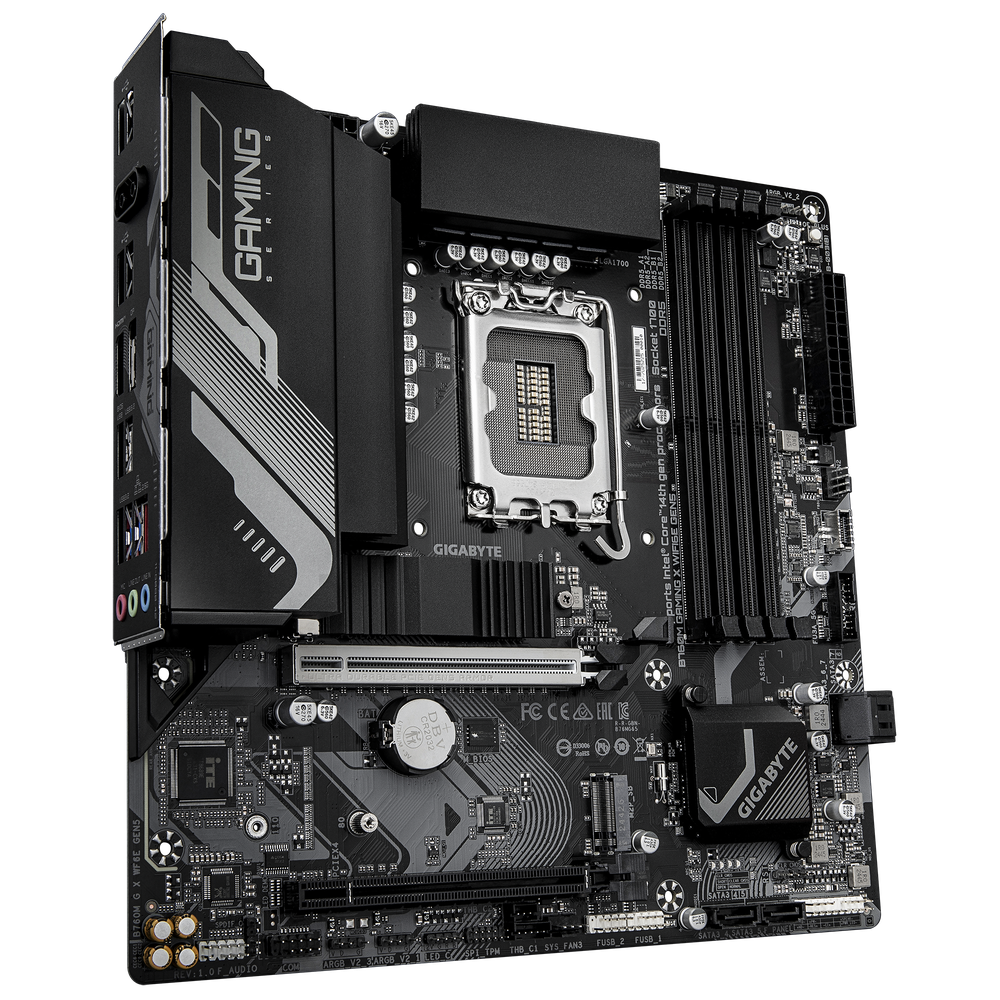

B760M GAMING X WIFI6E GEN5
Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Specifications | Chipset | Intel® B760 Express Chipset |
| Specifications | Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Specifications | I/O Connectors | 3 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports, 2 x antenna connectors (2T2R), 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 3 x audio jacks |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Specifications | LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Specifications | PCI Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Specifications | Processor Support | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
| Specifications | RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Specifications | RAM Type/Bus/Max | 14th and 13th Generation Intel® Core i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules; 13th Generation Intel® Core i5/i3 and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Specifications | Socket | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
| Specifications | Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Specifications | Warranty | 3 years limited warranty |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Intel® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
