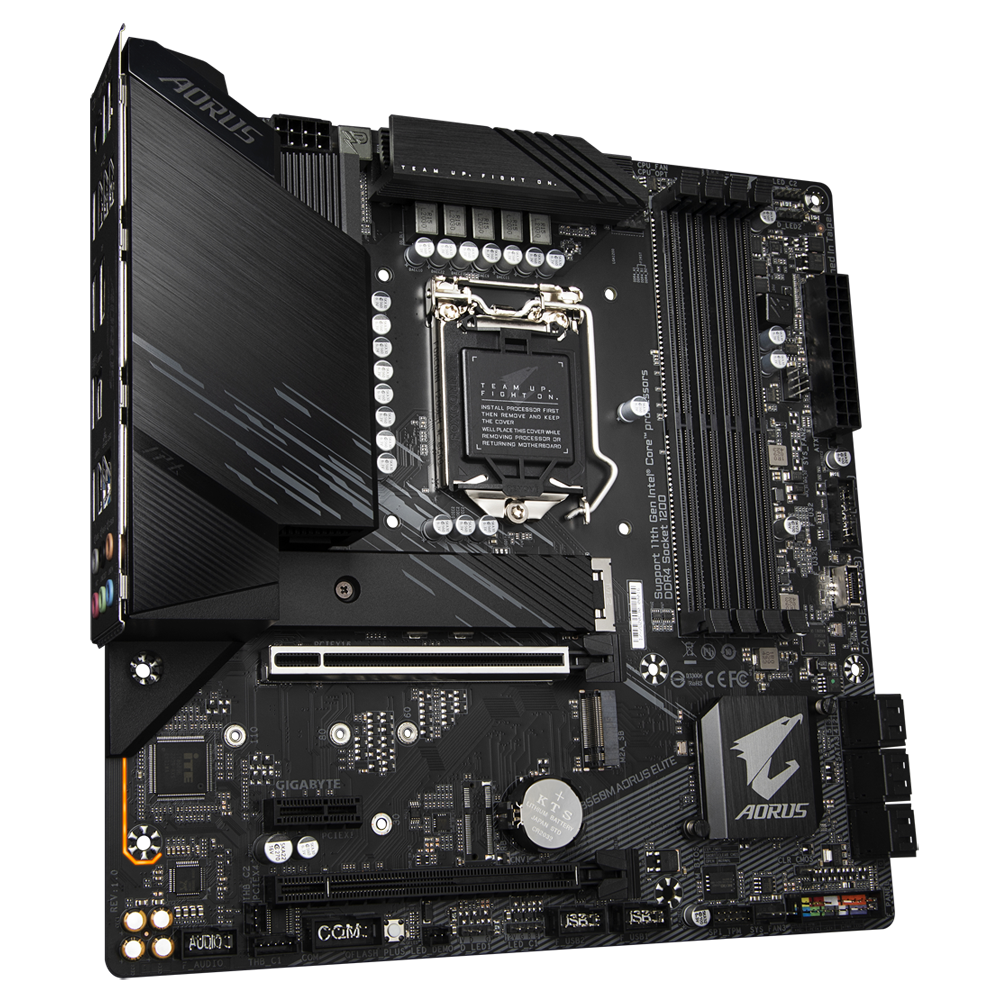

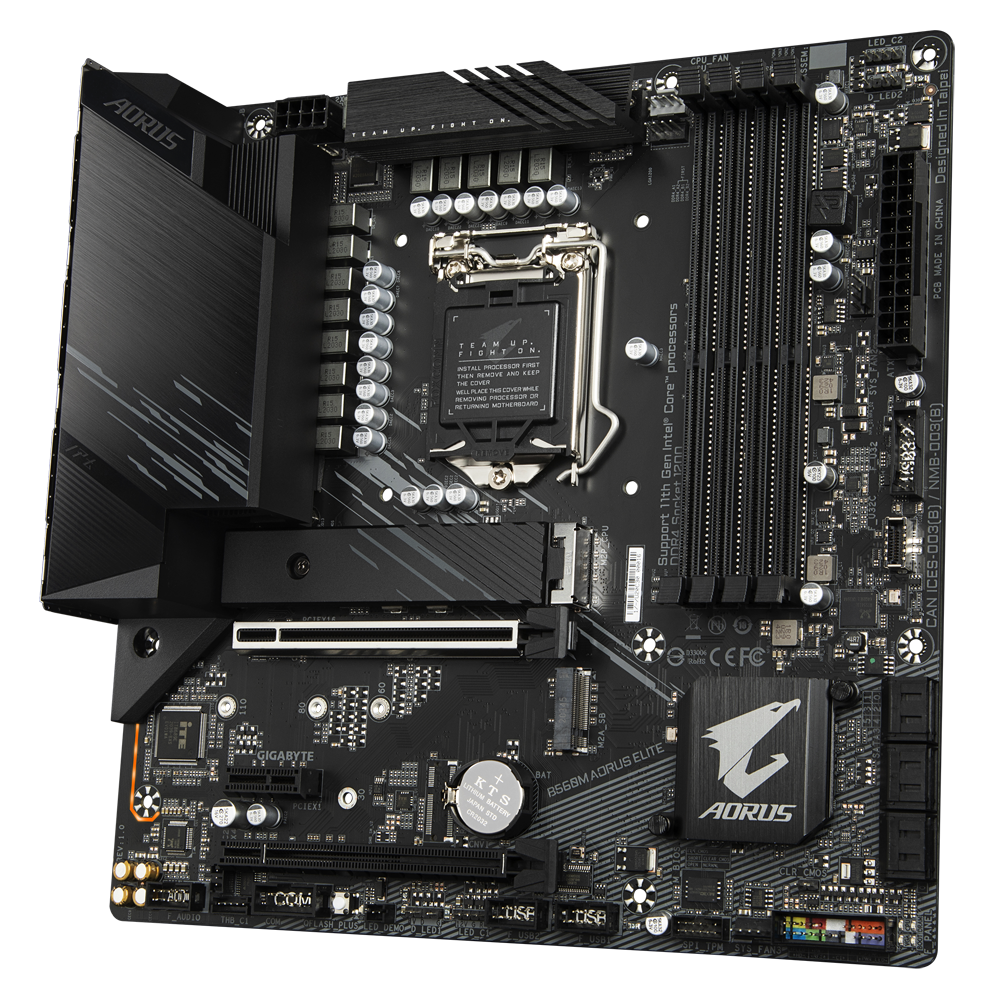

Gigabyte GA-B560M-AORUS-ELITE
Gigabyte GA-B560M-AORUS-ELITE
Gigabyte GA-B560M-AORUS-ELITE
Gigabyte GA-B560M-AORUS-ELITE
Gigabyte GA-B560M-AORUS-ELITE

Gigabyte GA-B560M-AORUS-ELITE

$229.00
Tax included.
Gigabyte GA-B560M-AORUS-ELITE

Gigabyte GA-B560M-AORUS-ELITE

$229.00
Product description
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudioRealtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel
SpecificationsChipsetIntel® B560 Express Chipset
SpecificationsForm FactorMicro ATX Form Factor; 24.4cm x 24.4cm

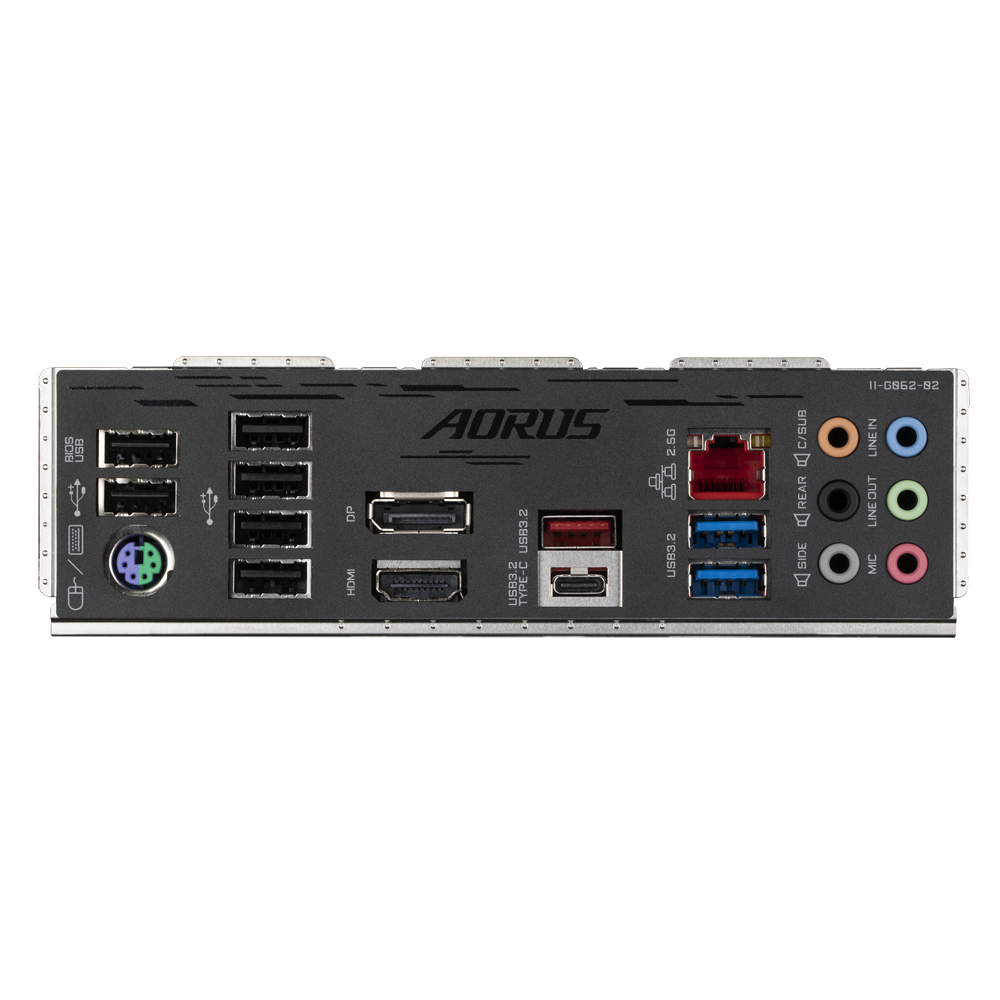

SpecificationsI/O Connectors1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen2 support 1 x USB 3.2 Gen2 Type-A port (red) 2 x USB 3.2 Gen1 ports 6 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks
SpecificationsIntegrated CPU GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
SpecificationsLANRealtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
SpecificationsMemory/Type/Bus/Max.11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
SpecificationsPCI Slots1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
SpecificationsProcessor Support11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
SpecificationsRaidNo
SpecificationsRAM Type/Bus/Max.11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
SpecificationsSocketLGA1200
SpecificationsStorage InterfaceCPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane Memory Ready
SpecificationsWarranty3 Years
SpecificationsWeight
