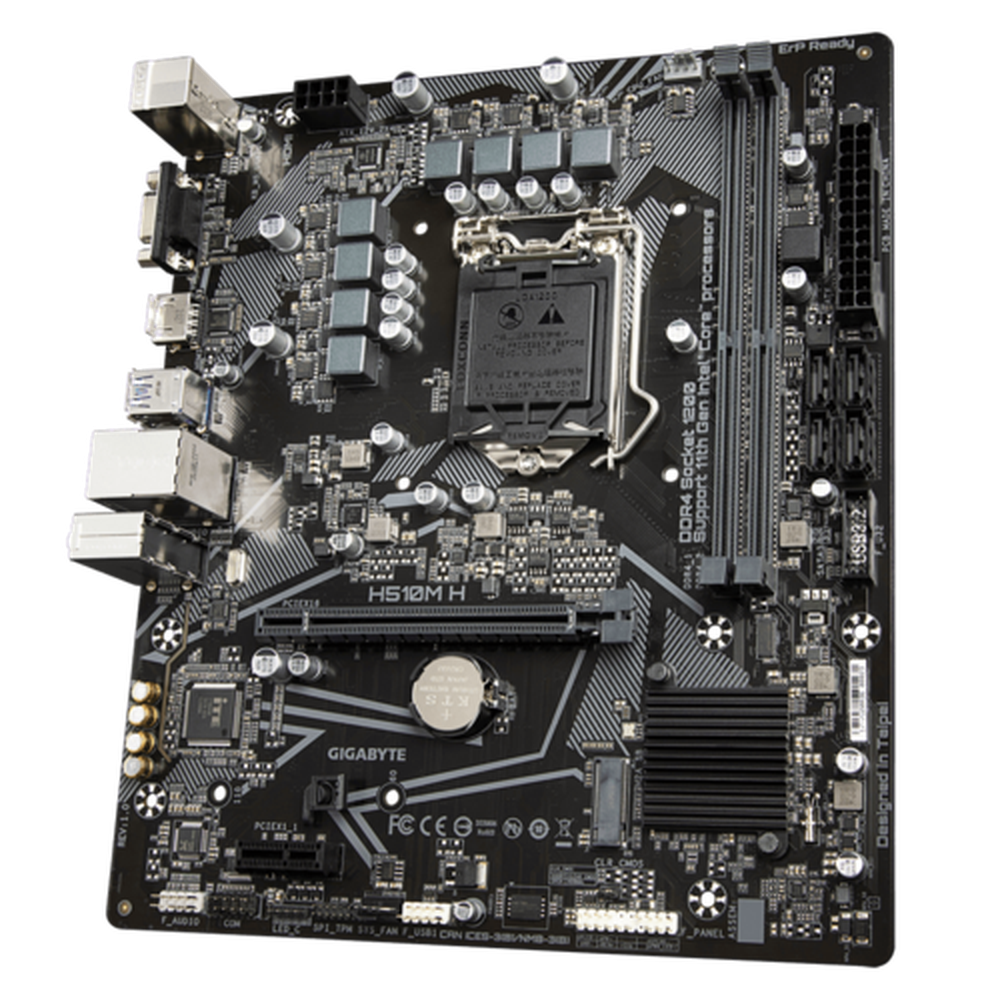

Intel® H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- High Quality Audio Capacitors and Audio Noise
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
* Actual support may vary by CPU.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® Audio CODEC | High Definition Audio | 2/4/5.1/7.1-channel |
| Specifications | BIOS | 1 x 256 Mbit flash | Use of licensed AMI UEFI BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Specifications | Chipset | Intel® H510 Express Chipset |
| Specifications | Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm |
| Specifications | H/W Monitoring | Voltage detection | Temperature detection | Fan speed detection | Fan fail warning | Fan speed control | * Whether the fan speed control function is supported will depend on the cooler you install. |

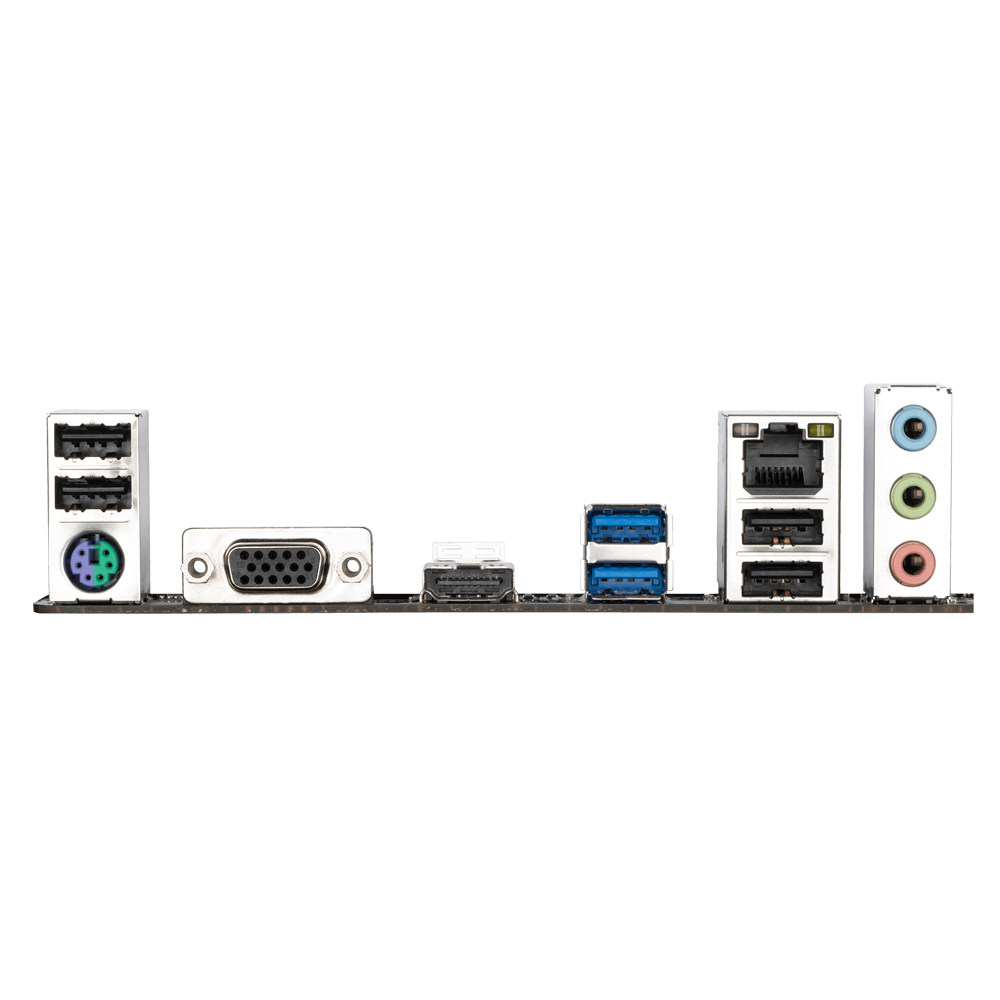

| Specifications | I/O Connectors | 1 x PS/2 keyboard/mouse port | 1 x D-Sub port | 1 x HDMI port | 2 x USB 3.2 Gen 1 ports | 4 x USB 2.0/1.1 ports | 1 x RJ-45 port | 3 x audio jacks |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port supporting a maximum resolution of 4096x2160@30 Hz |
| Specifications | LAN | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
| Specifications | Memory/Type/Bus/Max. | 11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules | 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | Dual channel memory architecture | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | Support for Extreme Memory Profile (XMP) memory modules |
| Specifications | Operating System | Support for Windows 10 64-bit |
| Specifications | PCI Slots | Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. | 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Specifications | Processor Support | 11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors | 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. | L3 cache varies with CPU |
| Specifications | Raid | No |
| Specifications | RAM Type/Bus/Max. | 11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules | 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | Dual channel memory architecture | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | Support for Extreme Memory Profile (XMP) memory modules |
| Specifications | Socket | LGA1200 |
| Specifications | Storage Interface | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | 4 x SATA 6Gb/s connectors |
| Specifications | Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer | Support for Q-Flash | Support for Xpress Install |
| Specifications | USB | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
