Z690M AORUS ELITE AX DDR4 (rev. 1.0)
Key Feature
Intel® Z690 AORUS Motherboard with Direct 12+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Fully Covered Thermal Design , 3*PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE, WIFI6 802.11ax , Rear USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 12+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
- Shielded Memory Routing to Avoid Interference
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
- Fast Intel® 2.5GbE LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
- Pre-installed IO Shield for easy and quick installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel / To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S / PDIF Out |
| Specifications | Chipset | Intel® Z690 Express Chipset |
| Specifications | Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |

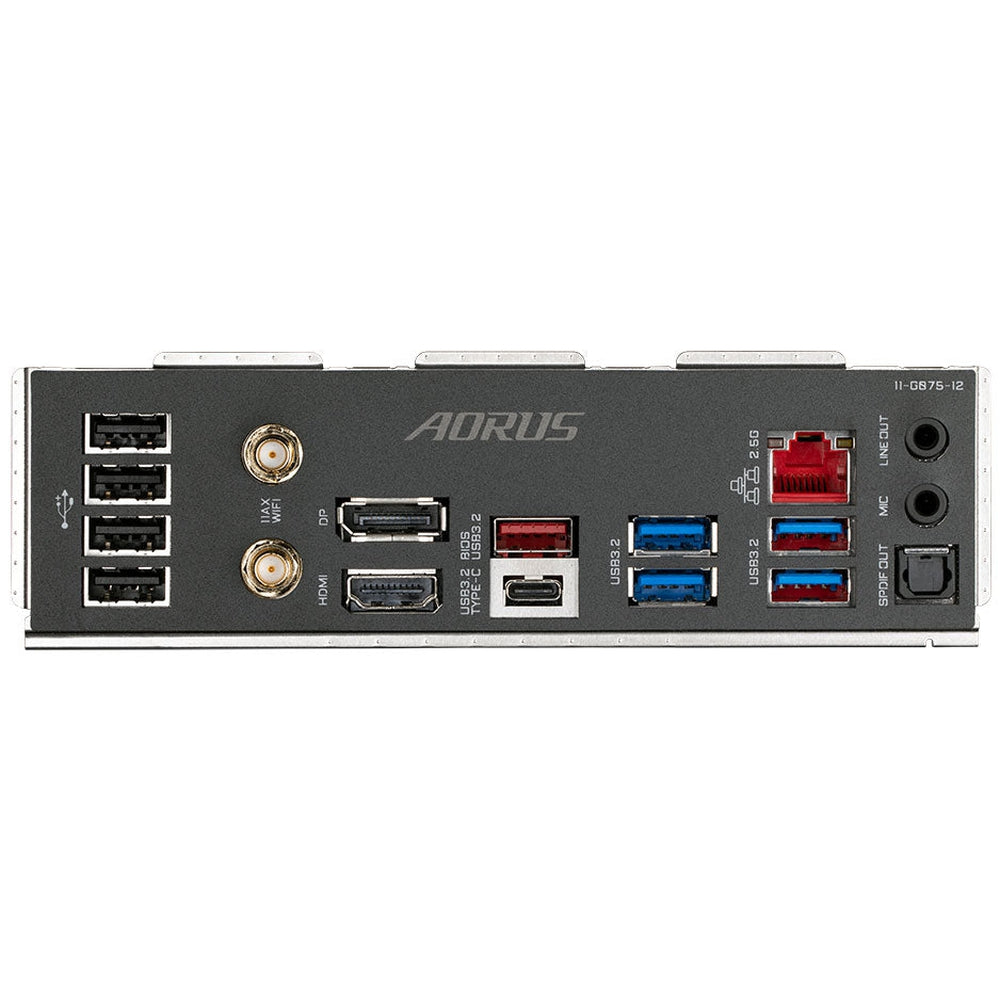

| Specifications | I/O Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0 / 1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S / PDIF Out connector 2 x audio jacks |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz / Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz / Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Specifications | LAN | Intel® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Specifications | Memory/Type/Bus/Max. | Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Specifications | Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Specifications | PCI Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| Specifications | Processor Support | LGA1700 socket: Support for 12th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Specifications | Raid | Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Specifications | RAM Type/Bus/Max. | Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Specifications | Socket | LGA1700 |
| Specifications | Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2260 / 2280 PCIe 4.0 x4 / x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260 / 2280 PCIe 4.0 x4 / x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260 / 2280 / 22110 PCIe 4.0 x4 / x2 SSD support) (M2P_SB) 6 x SATA 6Gb / s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane Memory Ready / System acceleration with Intel® Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless | Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate / Actual data rate may vary depending on environment and equipment. |
