Product description

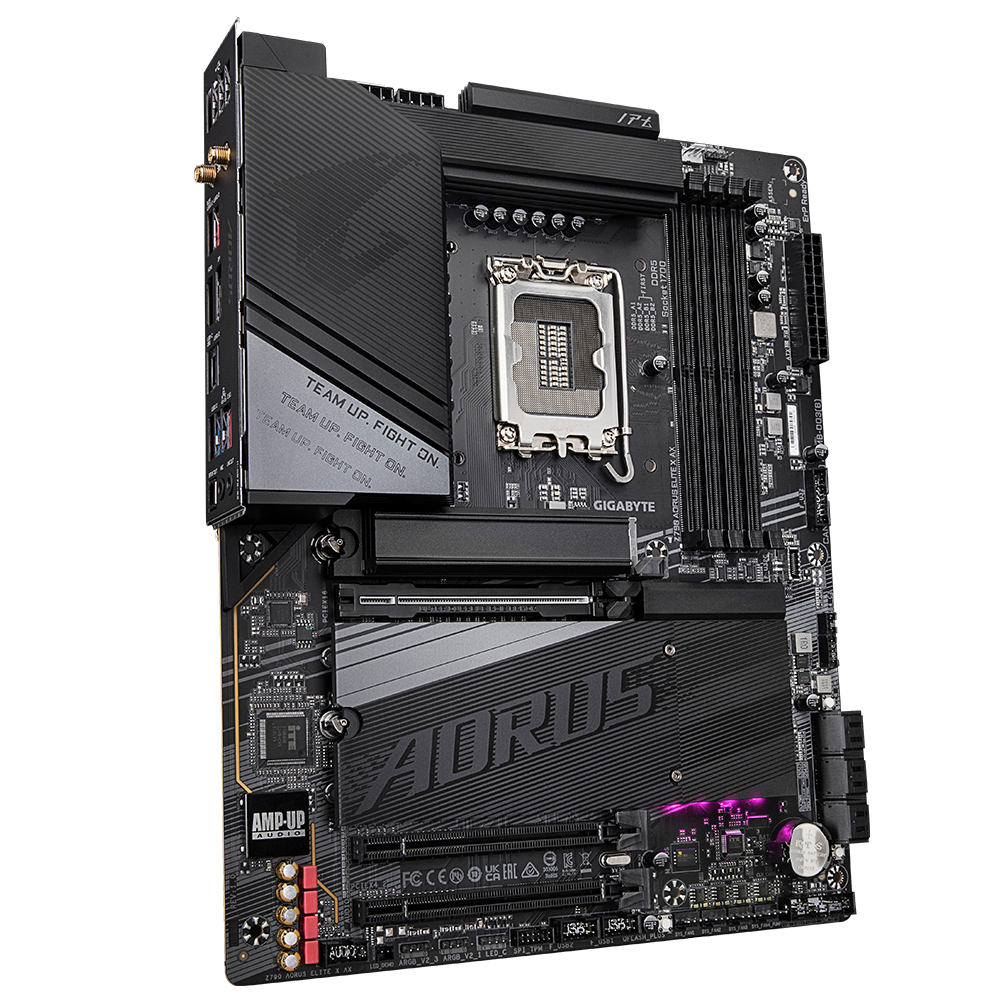

Z790 AORUS ELITE X AX

Key Features

  • Supports Intel® Core™ 14th and 13th processors
  • Digital twin 16+1+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • EZ-Latch Plus:M.2 slots with quick release design
  • UC BIOS:User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage:4*PCIe 4.0 x4 M.2 slots
  • Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking:2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
  • Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
  • Precision Audio:ALC1220 & Audiophile Grade Capacitors
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsPCI SlotsCPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

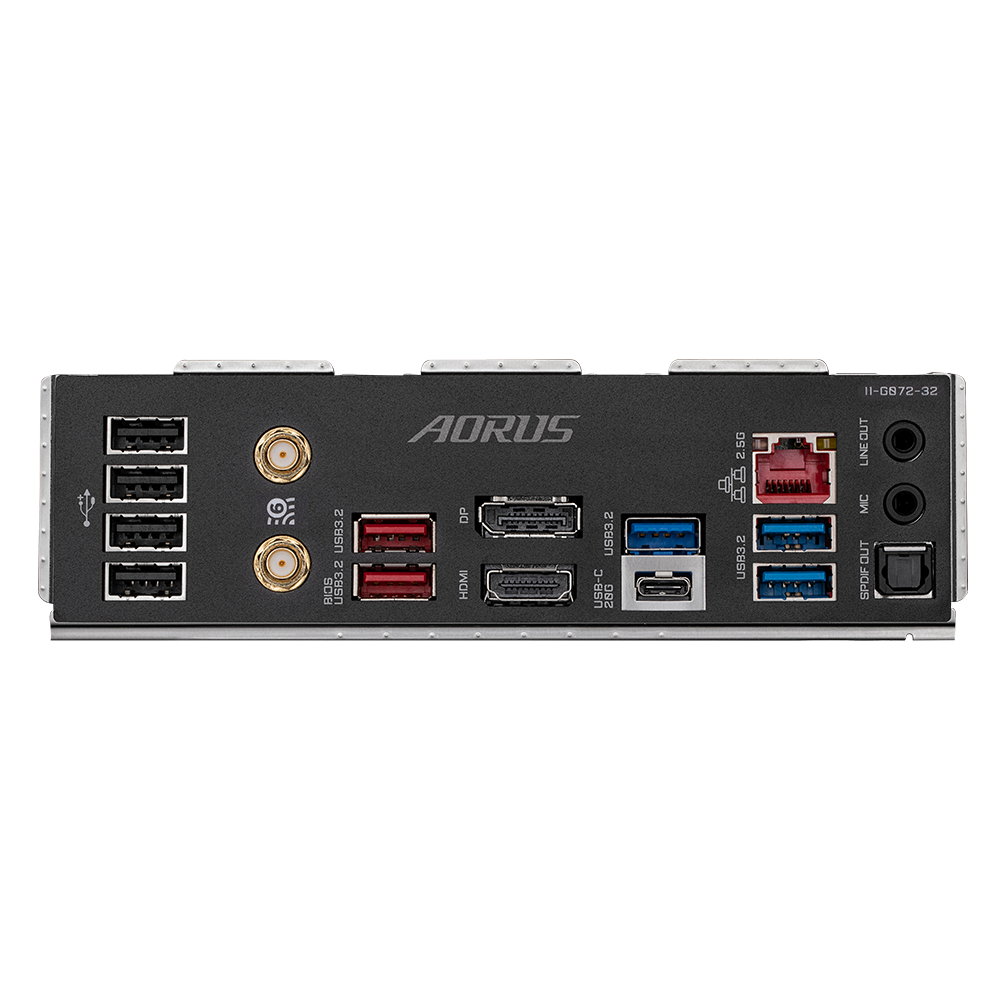

SpecificationsI/O ConnectorsChipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), 2 x SMA antenna connectors (2T2R) jk, 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
SpecificationsProcessor SupportLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
SpecificationsRAM Type/Bus/MaxSupport for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
SpecificationsWeight
SpecificationsAudioRealtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
SpecificationsIntegrated CPU GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
SpecificationsRAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
SpecificationsStorage InterfaceCPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors
SpecificationsForm FactorATX Form Factor; 30.5cm x 24.4cm
SpecificationsLANIntel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
SpecificationsWarranty3 Years
SpecificationsChipsetIntel® Z790 Express Chipset
SpecificationsSocketLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
SpecificationsWireless & BluetoothRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
