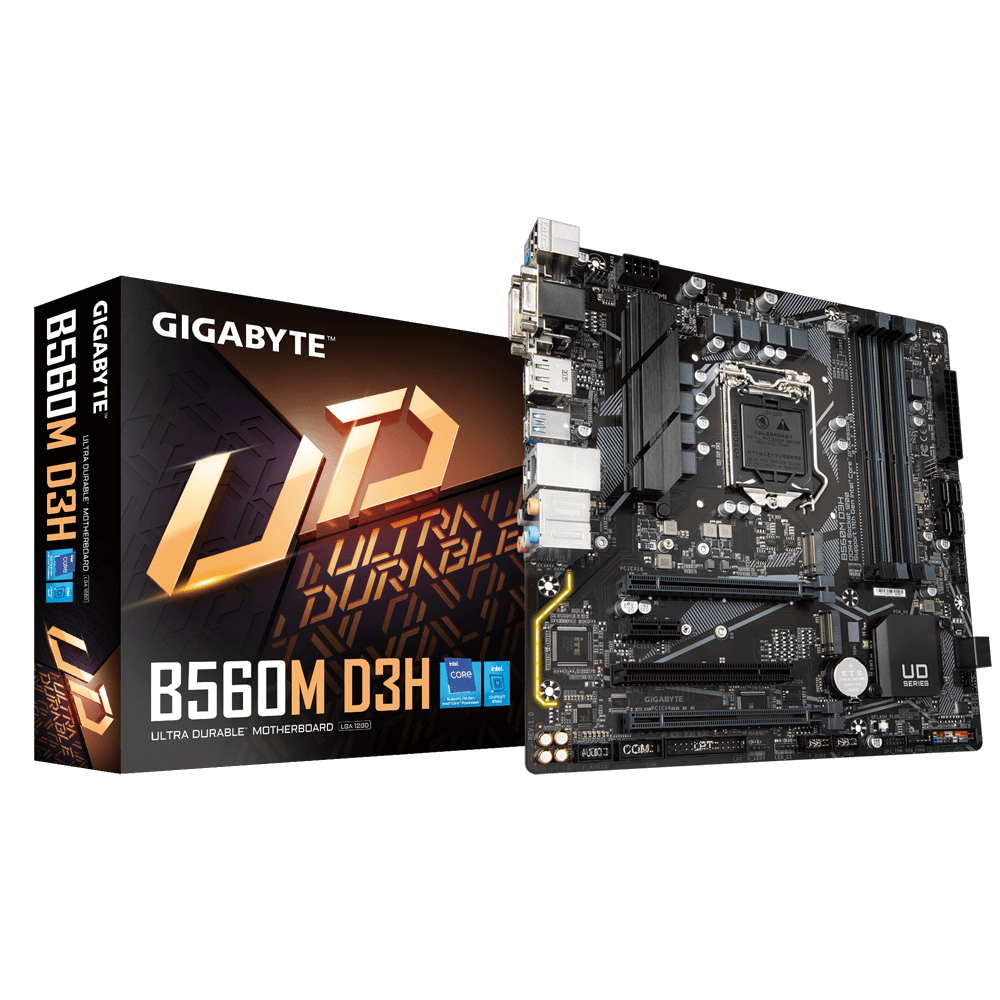

Gigabyte M/B B560M D3H 1.0
Gigabyte M/B B560M D3H 1.0
Gigabyte M/B B560M D3H 1.0
Gigabyte M/B B560M D3H 1.0
Gigabyte M/B B560M D3H 1.0

Gigabyte M/B B560M D3H 1.0

$199.00
Tax included.
Gigabyte M/B B560M D3H 1.0

Gigabyte M/B B560M D3H 1.0

$199.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Product description

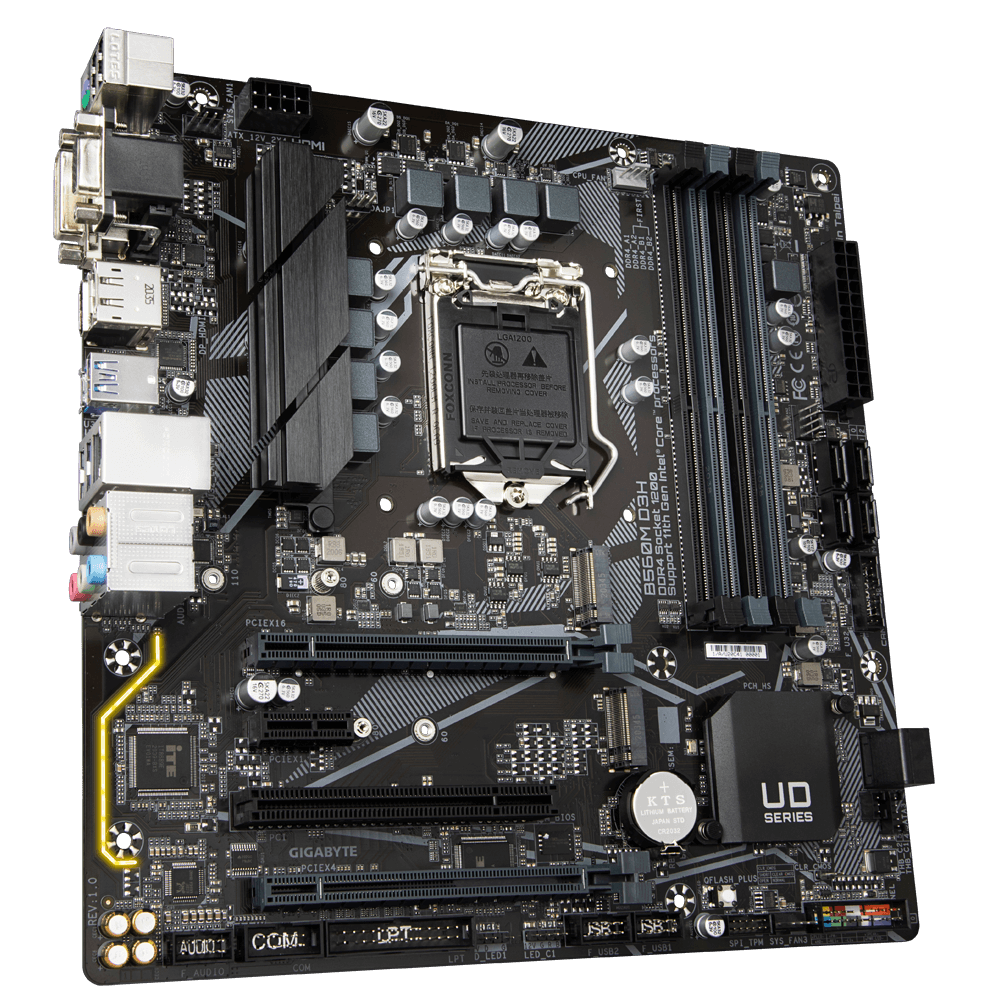

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, Intel® GbE with cFosSpeed, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connection
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
SpecificationsChipsetIntel® B560 Express Chipset
SpecificationsForm FactorMicro ATX Form Factor; 24.4cm x 24.4cm

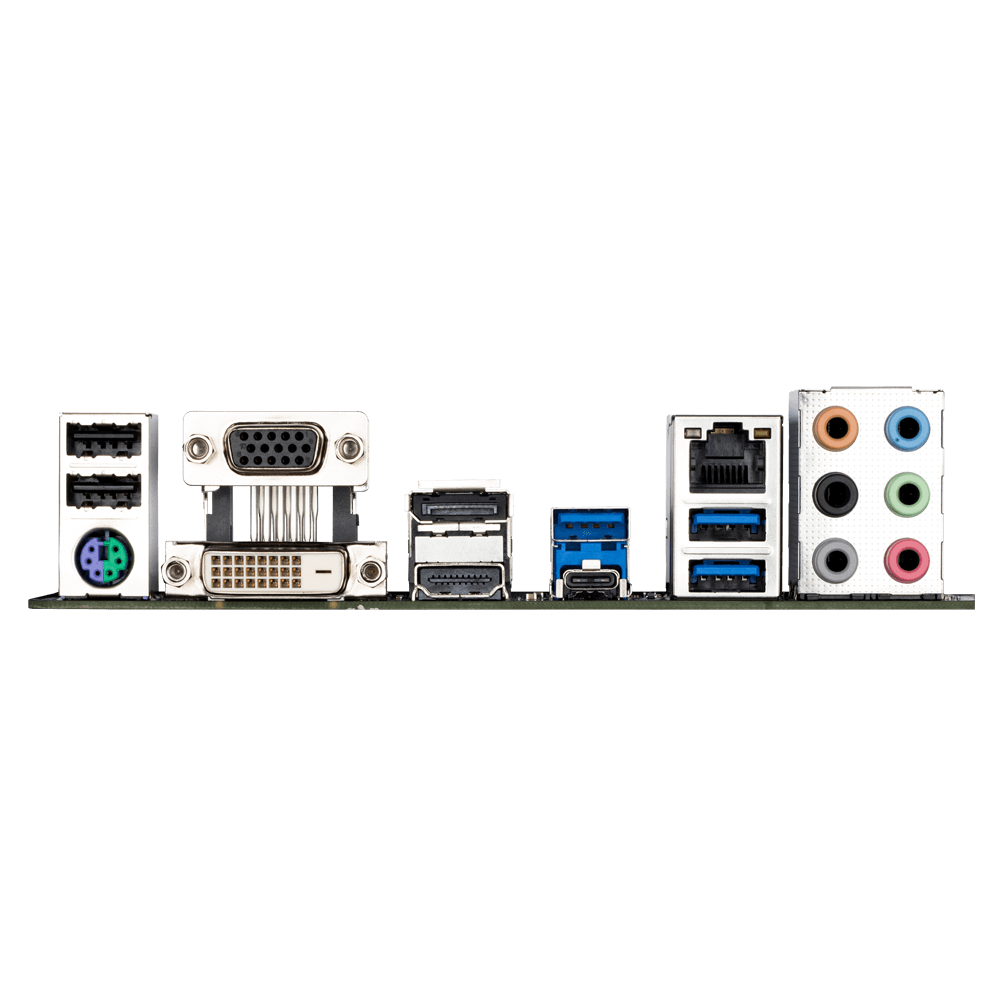

SpecificationsI/O Connectors1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
SpecificationsIntegrated CPU GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Note) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
SpecificationsLANIntel® GbE LAN chip (1000 Mbit/100 Mbit)
SpecificationsMemory/Type/Bus/Max.11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
SpecificationsPCI Slots1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) 1 x PCI slot
SpecificationsProcessor Support11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
SpecificationsRaidNo
SpecificationsRAM Type/Bus/Max.11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
SpecificationsSocketLGA1200
SpecificationsStorage InterfaceCPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane Memory Ready * System Acceleration with Intel® Optane Memory enabled on the M2A_CPU connector only.
SpecificationsWarranty3 Years
SpecificationsWeight
