Z790M AORUS ELITE AX ICE
Key Features
- Intel® Socket LGA 1700:Support 14th and 13th Gen Series Processors
- Unparalleled Performance:Twin 12+1+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
GroupName | Name | Value |
---|---|---|
Specifications | Audio | 1. Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. 2. High Definition Audio 3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. 4. Support for S/PDIF Out |
Specifications | Chipset | Intel® Z790 Express Chipset |
Specifications | Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |

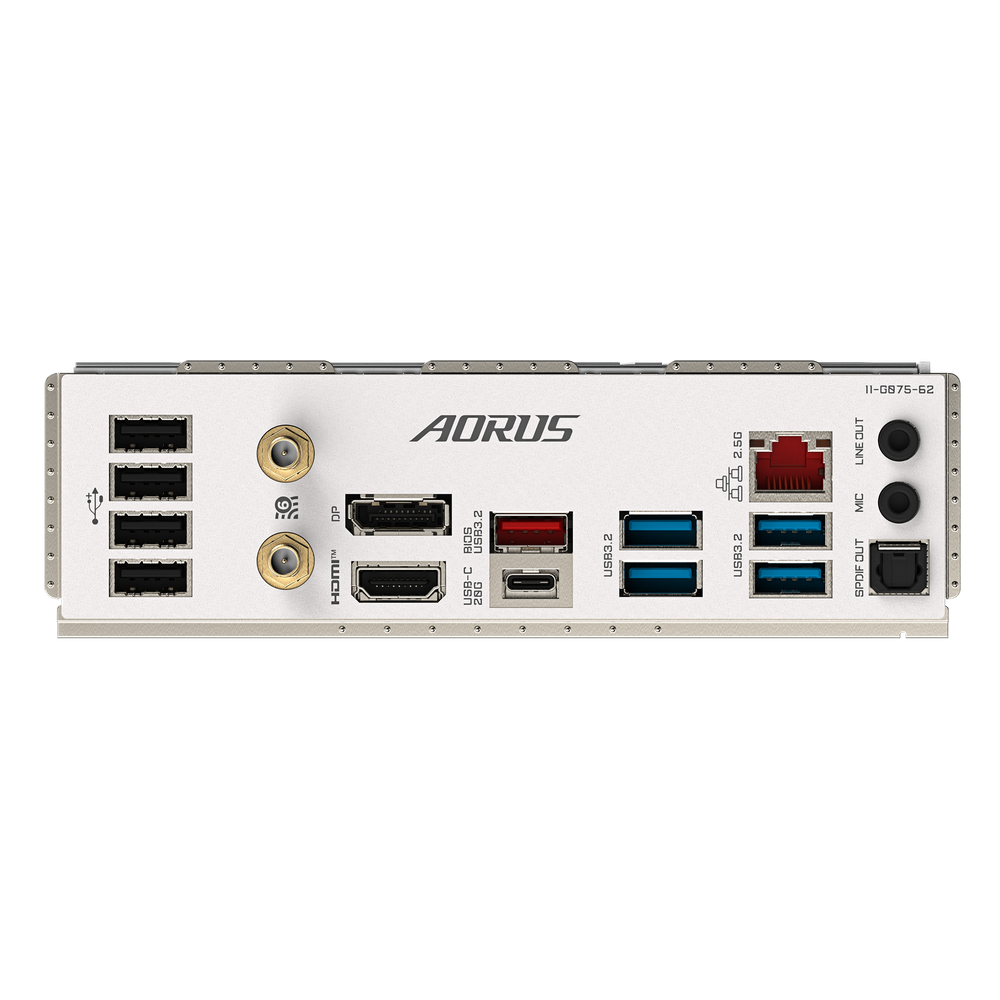

Specifications | I/O Connectors | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support, 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+2 USB 2.0 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers); 2 x SMA antenna connectors (2T2R), 1 x HDMI 2.0 port, 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks |
Specifications | Integrated CPU Graphics | 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
Specifications | LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Specifications | PCI Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
Specifications | Processor Support | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
Specifications | RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Specifications | RAM Type/Bus/Max | 1.Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
Specifications | Socket | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
Specifications | Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 6 x SATA 6Gb/s connectors |
Specifications | Warranty | |
Specifications | Weight | |
Specifications | Wireless & Bluetooth | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard |
