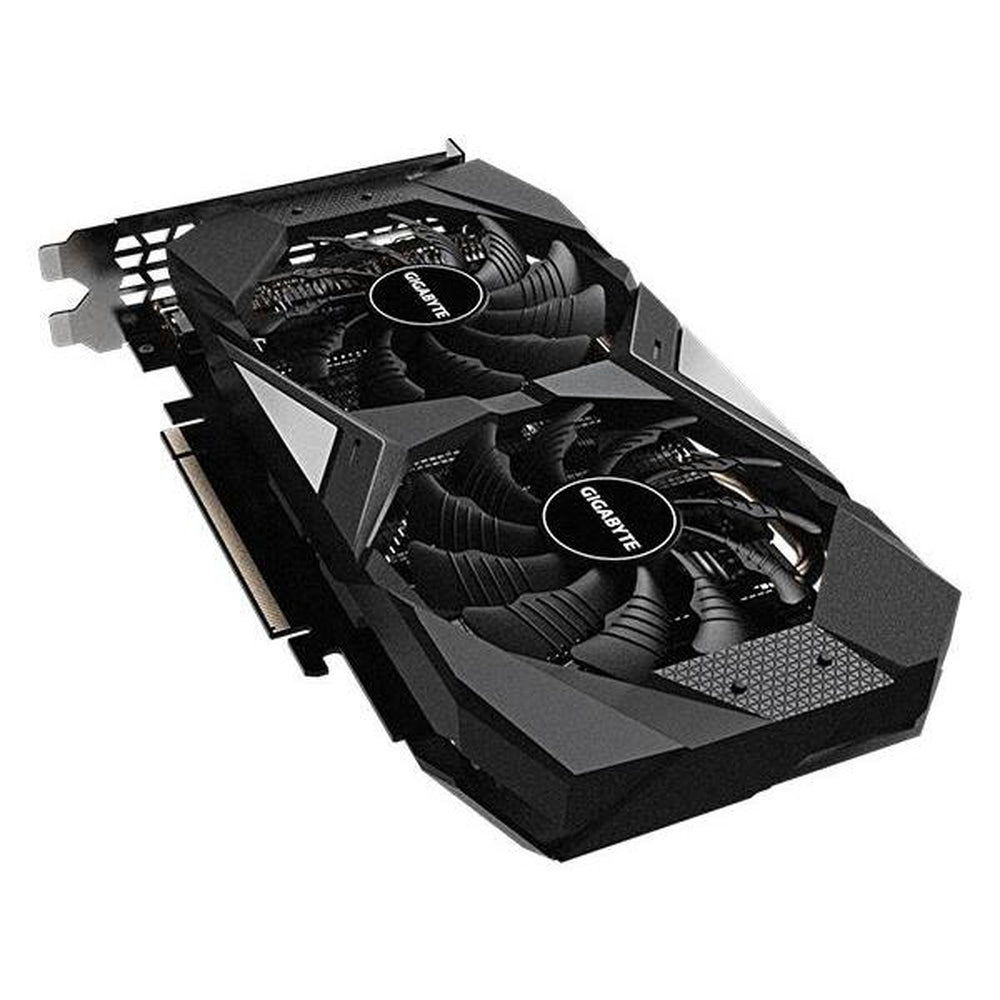

Gigabyte GeForce RTX™ 2060 D6 6G (rev 2.0)
Features
- Powered by GeForce RTX™ 2060
- Integrated with 6GB GDDR6 192-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 90mm unique blade fans
- Protection back plate
Core Clock
- 1680 MHz
WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
EXTREME DURABILITY
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
GroupName | Name | Value |
---|---|---|
Specifications | Analog Max Resolution | |
Specifications | Card Interface | PCI-E 3.0 x 16 |
Specifications | Card Size | L=225.65 W=122.02 H=40.5 mm |
Specifications | Chipset Manufacturer | NVIDIA GeForce RTX 2060 |
Specifications | Core Clock (MHz) | 1680 MHz |
Specifications | Core Technology | CUDA® Cores 1920 |
Specifications | Digital Max Resolution | 7680x4320 |
Specifications | DirectX S | 12 |
Specifications | Fan/Heat Sink | WINDFORCE 2X COOLING SYSTEM |
Specifications | Form Factor | ATX |
Specifications | Graphic Chipset | GeForce RTX 2060 |
Specifications | Input/output | DisplayPort 1.4 *3 HDMI 2.0b *1 |
Specifications | Memory | 6 GB GDDR6 |
Specifications | Memory Bus | 192 bit |
Specifications | Memory Clock (MHz) | 14000 MHz |
Specifications | Memory Size | 6 GB |
Specifications | Memory Type | GDDR6 |
Specifications | Warranty | 3 Years |
Specifications | Wattage | Recommended PSU 500W |
