KEY FEATURE:
-
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Gold certified

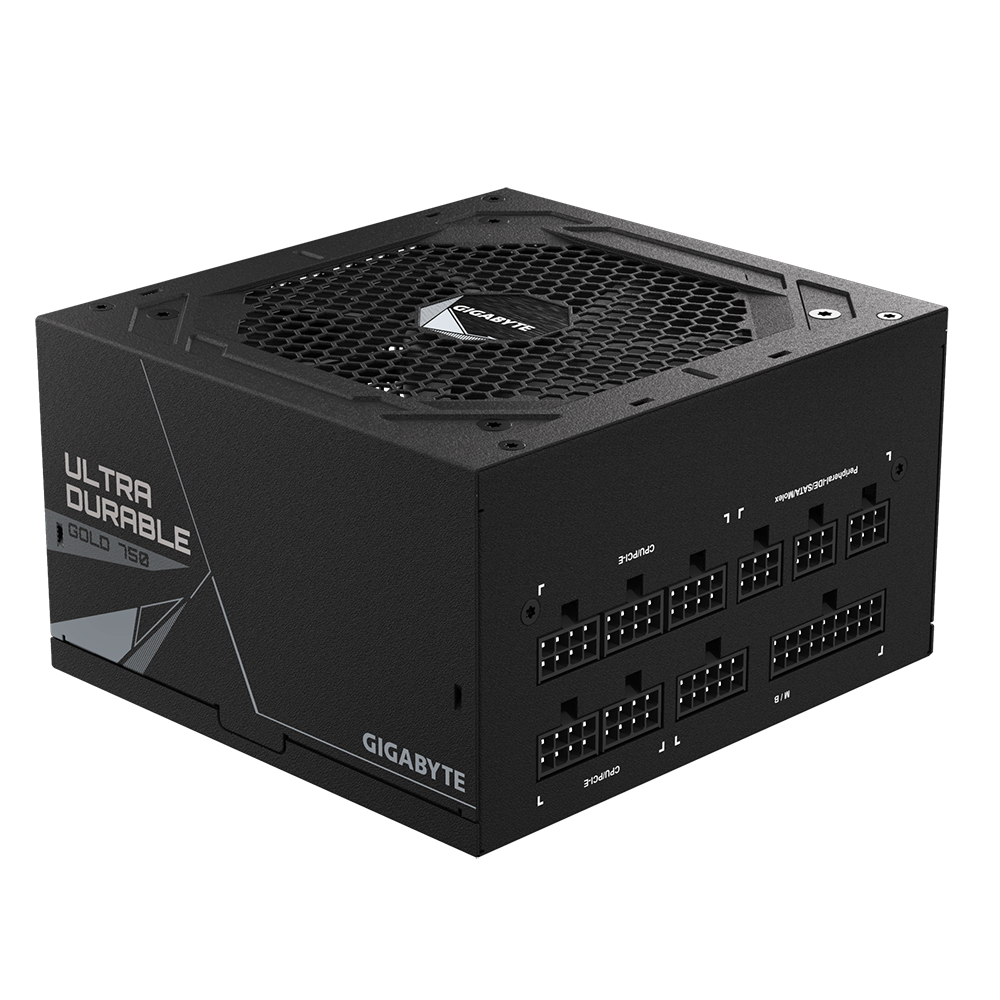

Fully modular design
Powerful single +12V rail
Compact design
5 years warranty (Adjusted according to different regions)
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | 80 PLUS | Gold |
| Specifications | Cable Type | Flat, All black |
| Specifications | Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1, CPU/EPS 4+4 Pin x 2 : 600mm*2, PCI-e 6+2 Pin x 4 : 600mm+150mm*2, SATA x 8 : 600mm+150mm+150mm+150mm*2, 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
| Specifications | Dimension | 150 x 140 x 86 mm |
| Specifications | Efficiency | 90% at typical load |
| Specifications | Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| Specifications | Hold Up Time | >16ms |
| Specifications | Input Current | 12-6A |
| Specifications | Input Frequency | 60-50 Hz |
| Specifications | Input Voltage | 100-240 Vac (full range) |
| Specifications | MTBF | >100,000 hours |
| Specifications | Output Capacity | 750W |
| Specifications | PFC | Active PFC (>0.9 typical) |
| Specifications | Power Good Signal | 100-150ms |
| Specifications | Product Type | Power Supply Unit |
| Specifications | Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Specifications | Type | Intel Form Factor ATX 12V v2.31 |
| Specifications | Warranty | 5 Years |
| Specifications | Weight |
