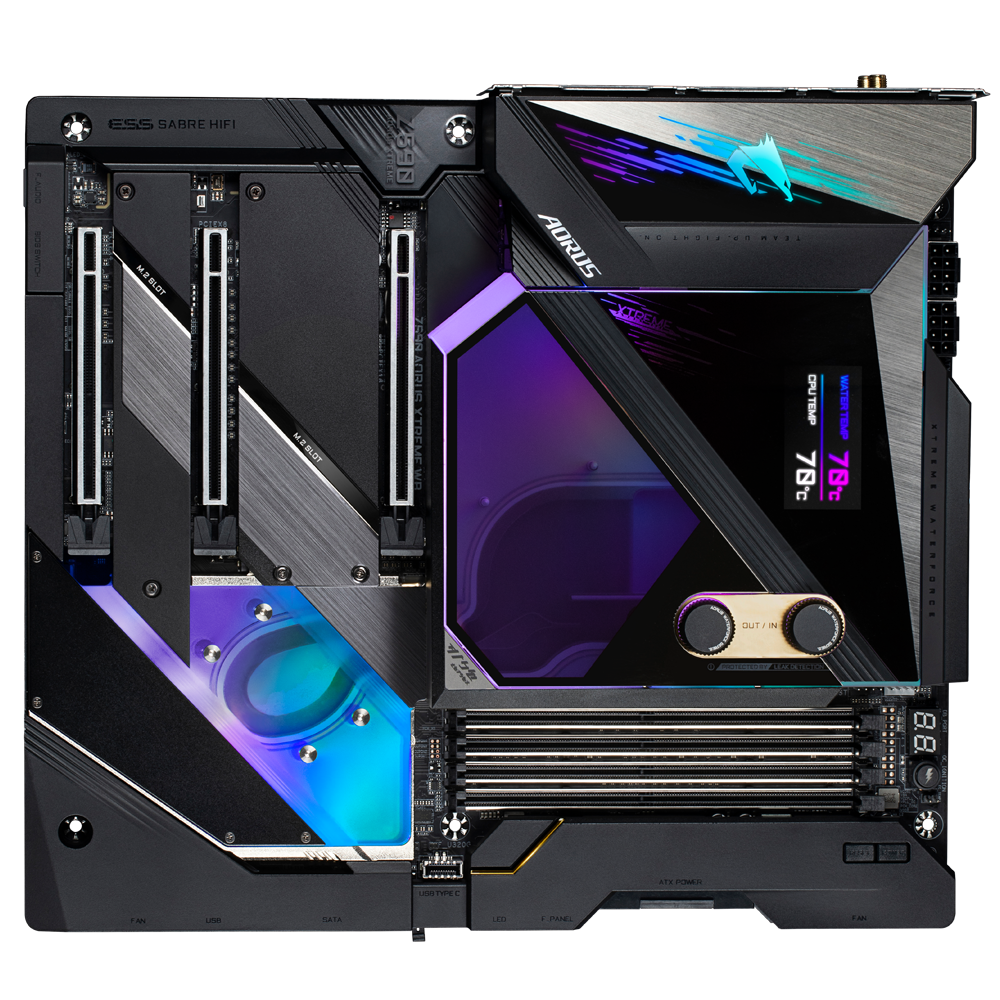

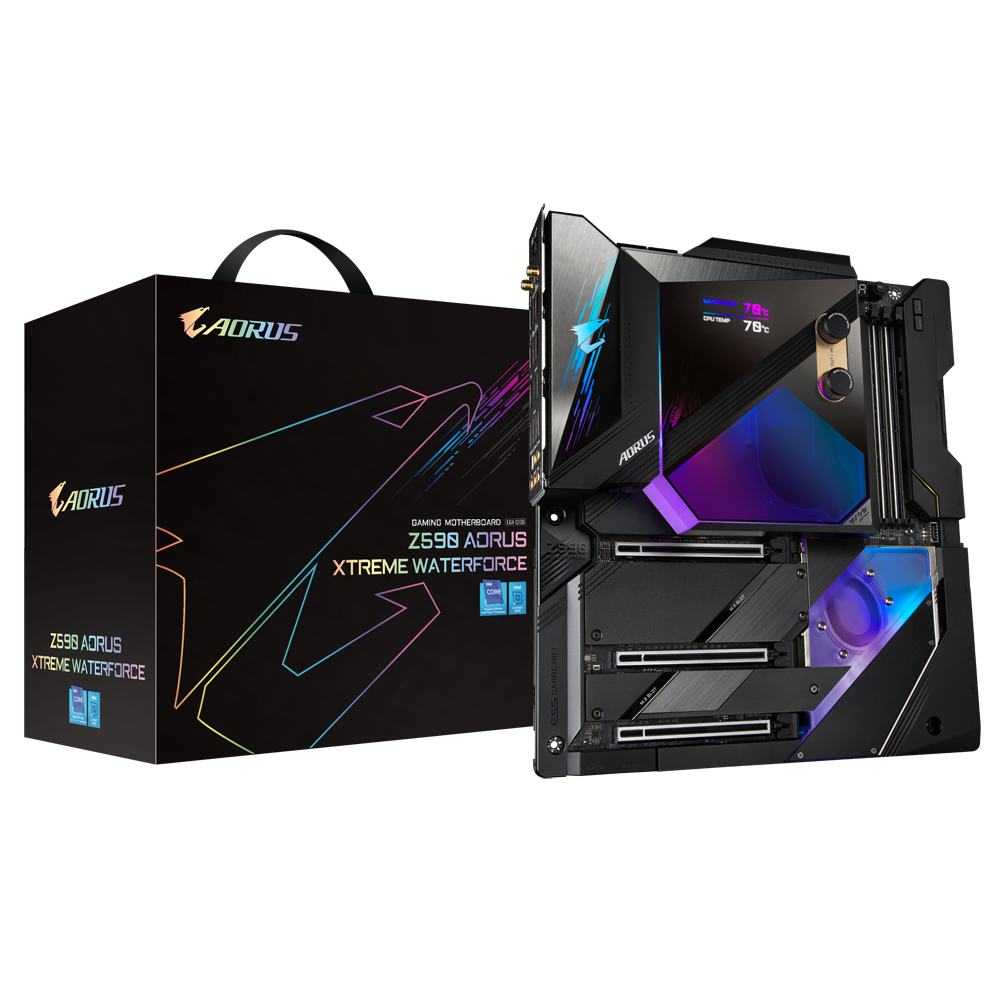

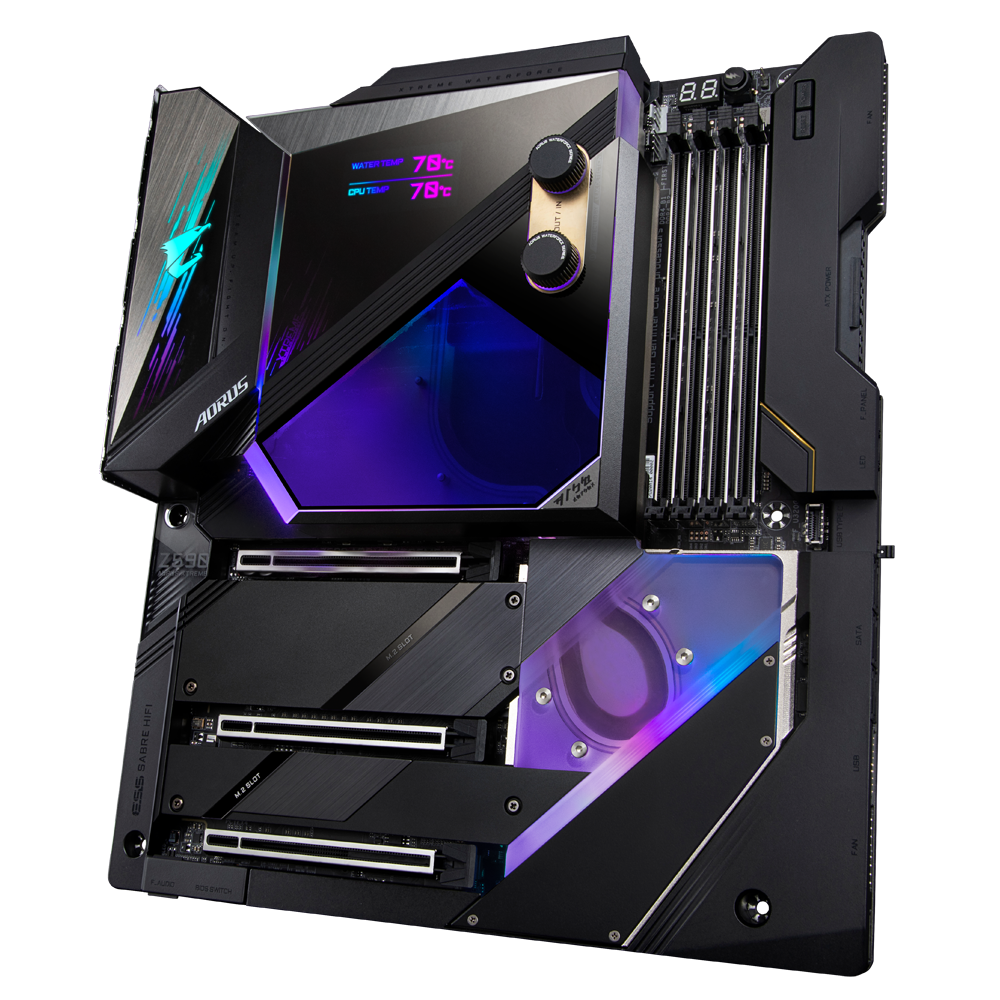

Gigabyte Z590 AORUS XTREME WATERFORCE (rev. 1.0)
Intel® Z590 AORUS Motherboard with 20+1 Phases Digital VRM, NanoCarbon Baseplate, Intel® Thunderbolt 4, ESSential USB DAC, AORUS PRO Gen4 AIC Adaptor, Intel® WiFi 6E 802.11ax, AQUANTIA® 10GbE LAN
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 20+1 Phases Digital VRM Solution with 100A Smart Power Stage and Tantalum Polymer Capacitors Array
- XTREME MEMORY with SMT DIMM and Shielded Memory Routing
- Thermal Reactive Armor with All in One Monoblock and NanoCarbon Baseplate
- Intel® Thunderbolt™ 4 Onboard
- Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
- Exclusively bundled ESSential USB DAC
- 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720, OPA1622 and WIMA Audio Capacitors
- AQUANTIA® 10GbE BASE-T LAN and Intel® 2.5GbE LAN with cFosSpeed
- Exclusively bundled AORUS PRO Gen4 AIC Adaptor
- Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Showcasing a state-of-the-art design, excellent functionality, an impressive thermal design, next generation connectivity, a Hi-Fi level audio system, and AORUS aesthetics, the flagship Z590 AORUS XTREME WATERFORCE motherboard dominates the competition.
To unleash the full potential of the new Intel 11th Gen CPU, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS XTREME WATERFORCE is a true beast among motherboards.
THERMAL REACTIVE ARMOR
Z590 AORUS XTREME WATERFORCE uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.
A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z590 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Z590 AORUS XTREME WATERFORCE provides full lighting effect and customization settings with outstanding aesthetics, enable enthusiasts to build gaming PC differently.
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z590 AORUS XTREME WATERFORCE and reinforce every slot to make each of them solid and durable.
Please refer to the table below for an estimate of delivery times to your area. Please note we do not ship to PO Boxes.
Estimated Delivery Times*
Melbourne, Sydney, Adelaide
1-4 business days after dispatch
Brisbane, Canberra, Geelong, Wollongong, Newcastle
2-5 business days after dispatch
Perth, Hobart, Darwin
3-7 business days after dispatch
Non-Metro - VIC, NSW, SA
3-7 business days after dispatch
Non-Metro - WA, TAS, QLD
4-10 business days after dispatch
Far North WA, Far North QLD and NT
7-14 business days after dispatch
*The above delivery times are estimates provided by our couriers. Actual delivery times may vary, and delays can occur during the peak Christmas Season or as a result of other factors outside of the courier's control.
**We do not ship to any PO Boxes or Parcel collection points. Orders must be signed for. Your order will be canceled if it goes to a PO Box.
Note: if your nearest warehouse is out of stock, your goods will need to ship from the next available warehouse. If this occurs, please allow an extra day or 2 in addition to the estimated times in the table above.
Shipping is calculated at checkout but orders over $199 are free.
We ship Australia wide, however we do not ship International.
|Specifications||Audio||Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier * The front panel line out jack supports DSD audio. Support for DTS:X® Ultra, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out|
|Specifications||BIOS||2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0|
|Specifications||Chipset||Intel® Z590 Express Chipset|
|Specifications||Form Factor||E-ATX Form Factor; 30.5cm x 27cm|
|Specifications||H/W Monitoring||Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection|

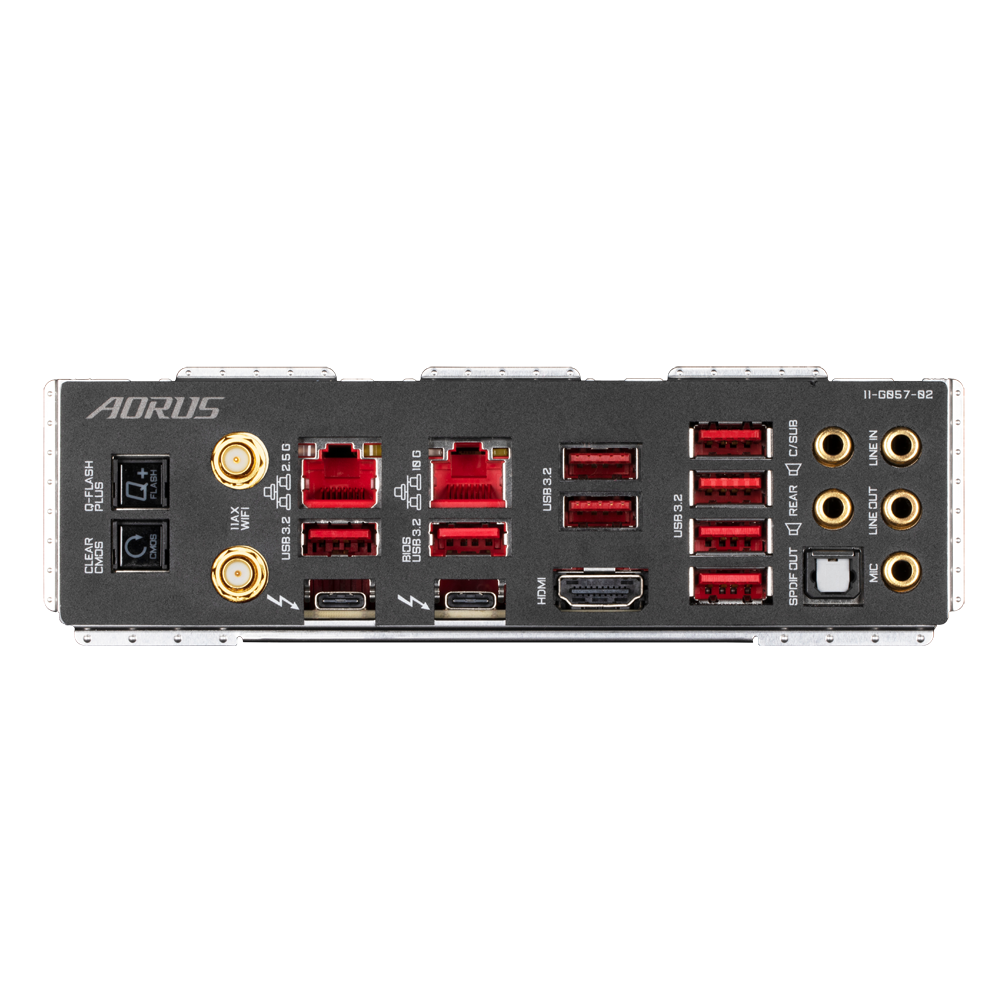

|Specifications||I/O Connectors||1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support) 8 x USB 3.2 Gen 2 Type-A ports (red) 1 x HDMI port 2 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks|
|Specifications||Integrated CPU Graphics||Integrated Graphics Processor+Intel® Thunderbolt 4 Controller: 2 x Intel® Thunderbolt 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3, Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.|
|Specifications||LAN||1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1), 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)|
|Specifications||Memory/Type/Bus/Max.||11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules|
|Specifications||Multi-Graphics Technology||Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies|
|Specifications||Operating System||Support for Windows 10 64-bit|
|Specifications||PCI Slots||1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)|
|Specifications||Processor Support||LGA1200 package: 11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors, 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU|
|Specifications||Raid||Support for RAID 0, RAID 1, RAID 5, and RAID 10|
|Specifications||RAM Type/Bus/Max.||11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules|
|Specifications||Storage Interface||CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane Memory Ready|
|Specifications||Unique Features||Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install|
|Specifications||Wireless Communication Module||Intel® Wi-Fi 6E AX210: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.2, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate|
