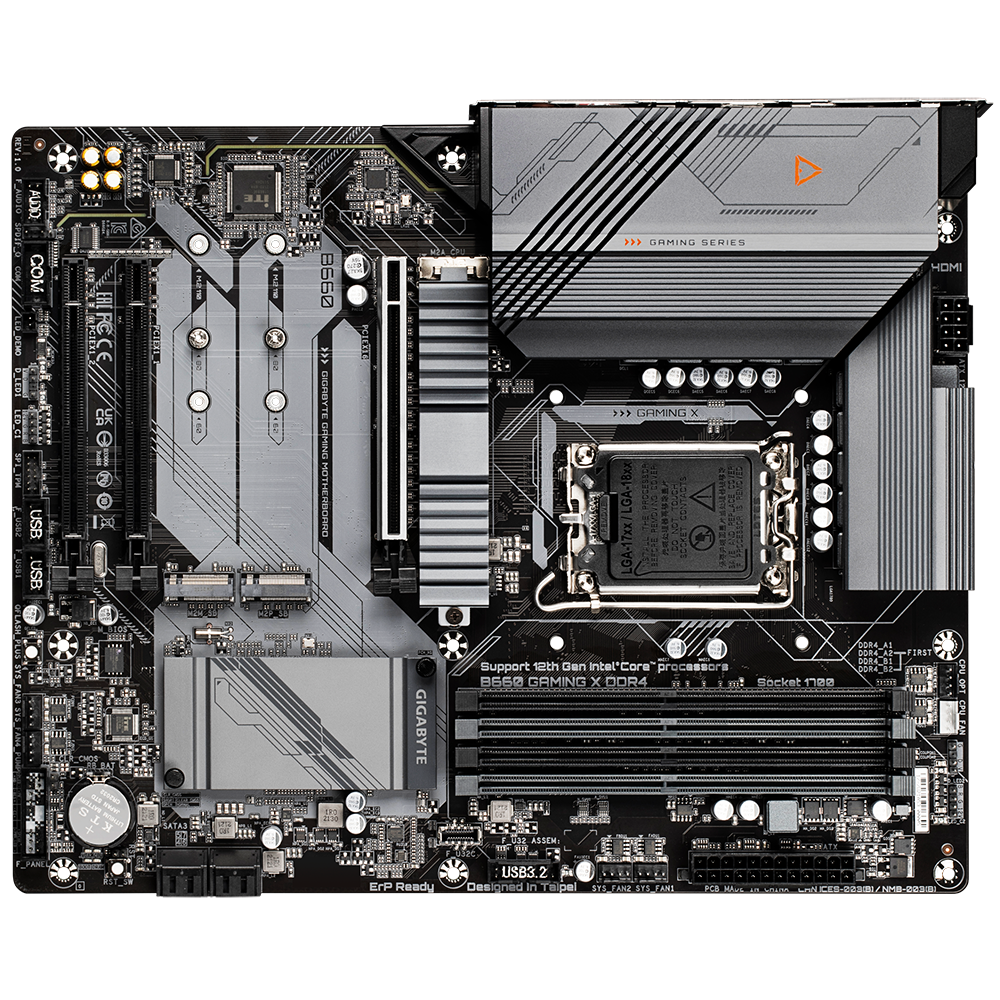

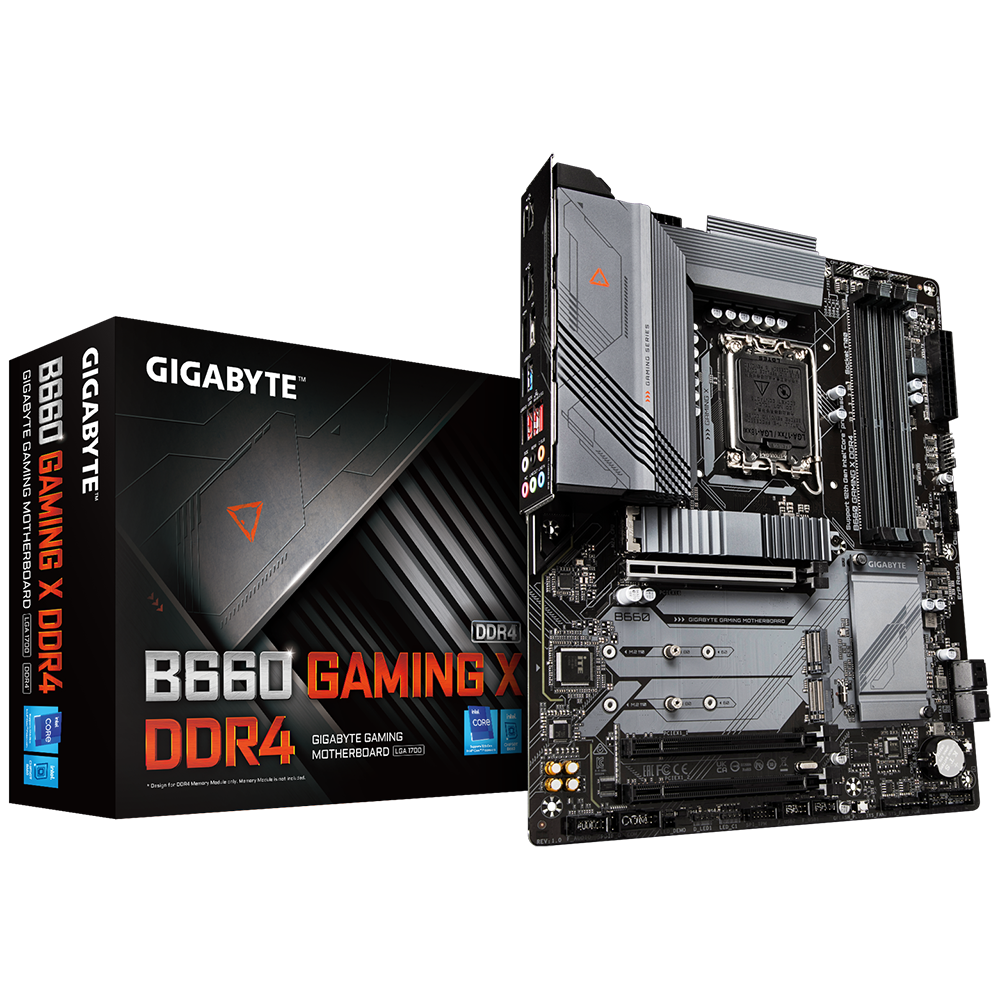

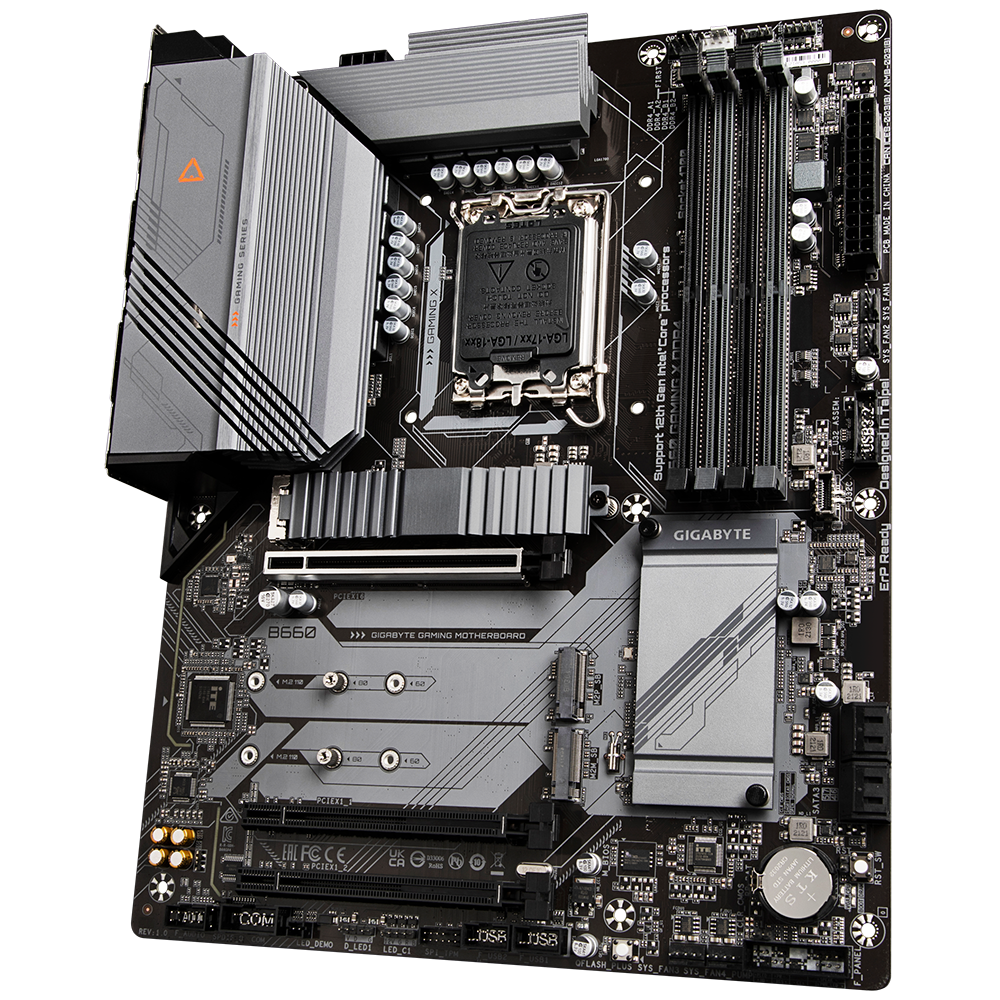

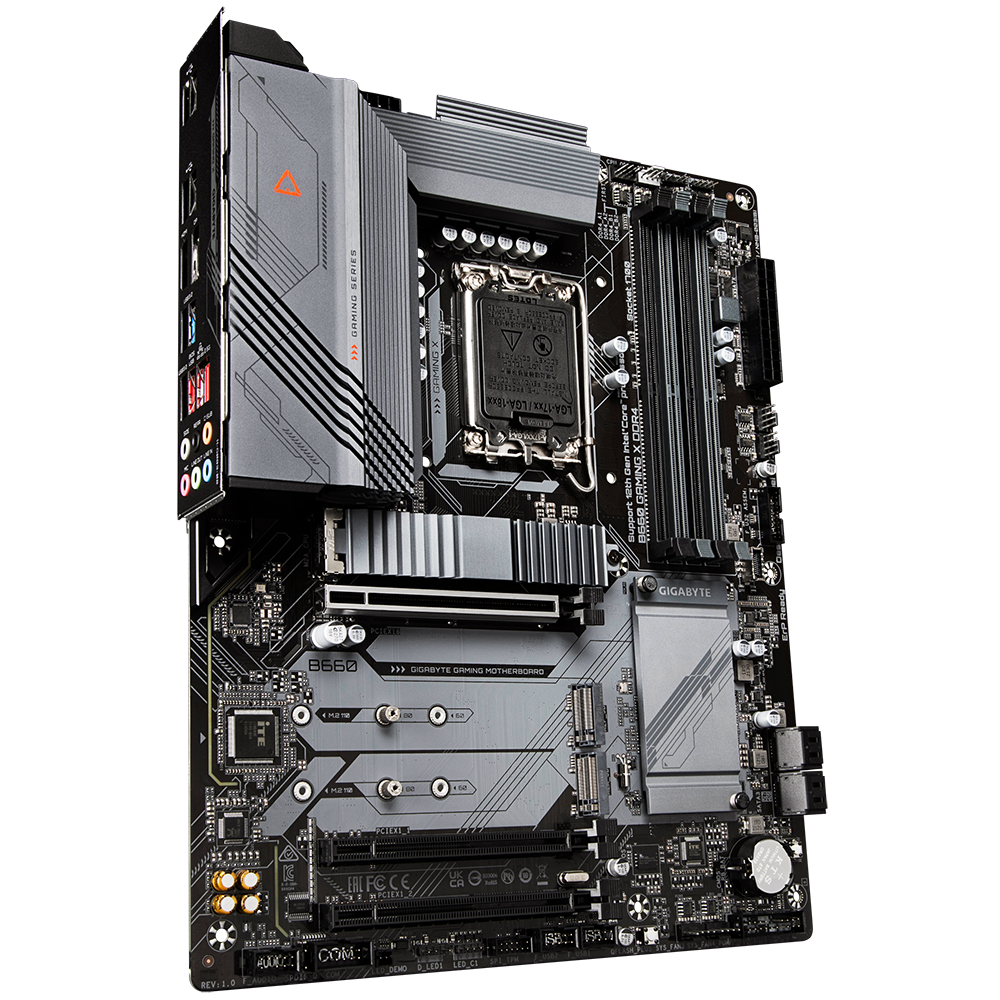

Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, Fully Covered Thermal Design, 3 x PCIe 4.0/3.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, Front USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 8+1+1 Hybrid Digital VRM Design with DrMOS*
- Fully Covered Thermal Design with High Coverage VRM Heatsinks
- Fast 2.5 GbE GAMING LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- SuperSpeed USB 3.2 Gen 2 Type-C® delivers up to 10Gb/s transfer speeds
- Pre-installed IO Shield for easy and quick installation
- High Quality Audio Capacitors and Audio Noise Guard
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Specifications | Chipset | Intel®B660 Express Chipset |
| Specifications | Form Factor | ATX Form Factor; 30.5cm x 24.4cm |

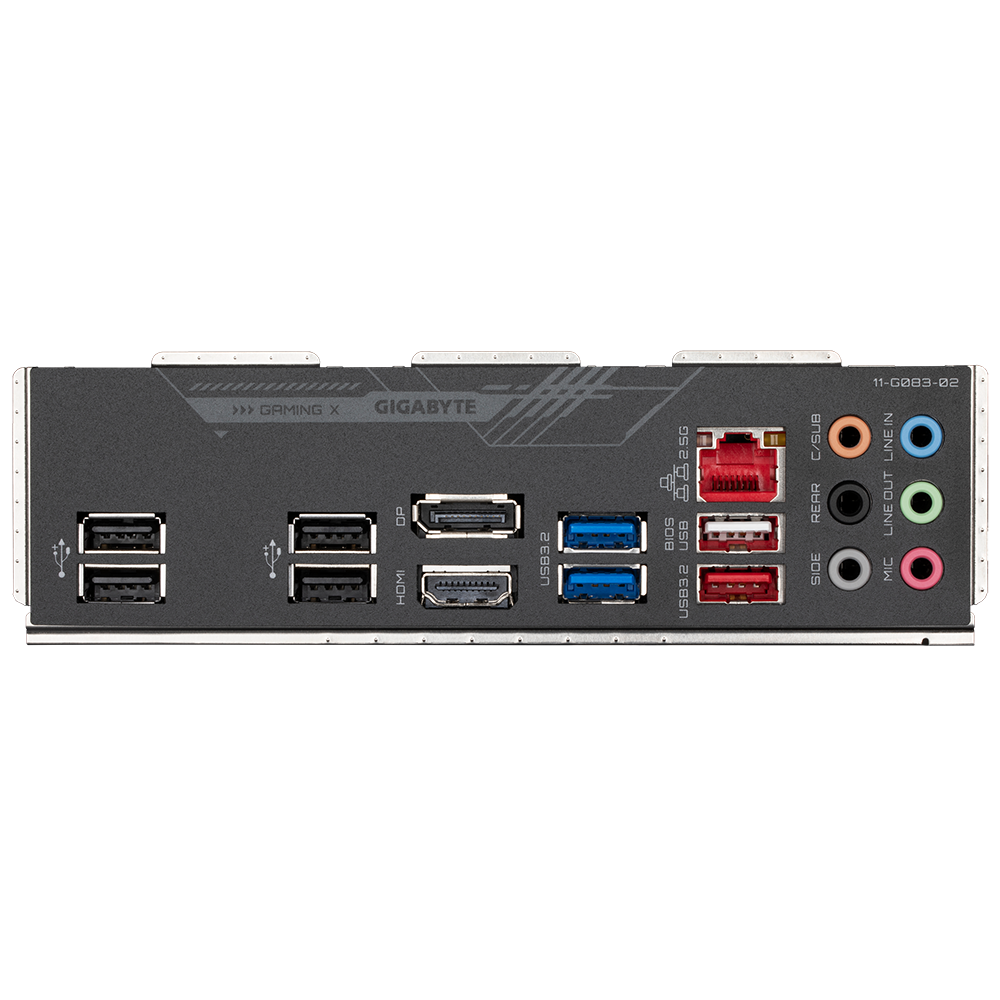

| Specifications | I/O Connectors | 1 x USB 3.2 Gen 2 Type-A port (red), 2 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports, 1 x DisplayPort, 1 x HDMI 2.0 port, 1 x RJ-45 port, 6 x audio jacks |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Specifications | LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Specifications | Memory/Type/Bus/Max. | Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Specifications | PCI Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Specifications | Processor Support | LGA1700 socket: Support for 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors |
| Specifications | Raid | Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Specifications | RAM Type/Bus/Max. | Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Specifications | Socket | LGA1700 |
| Specifications | Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
