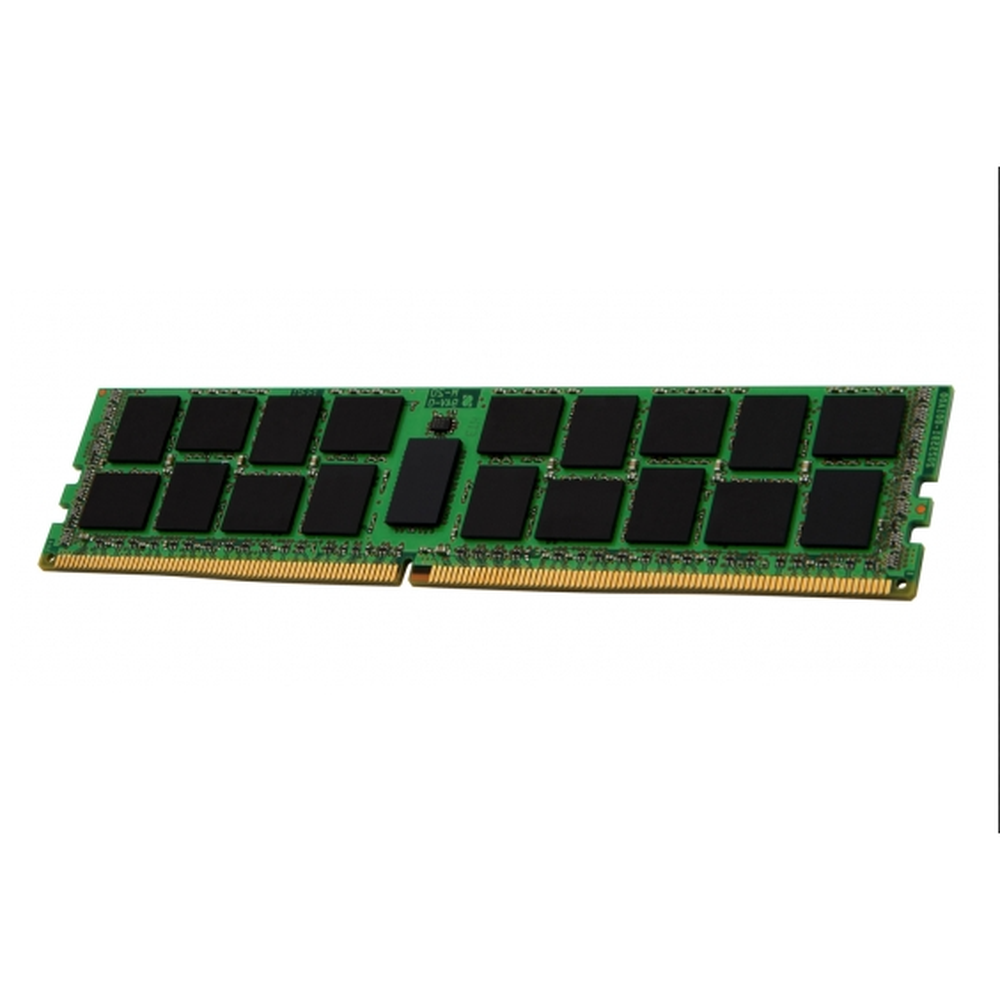

Kingston's KSM26RD8/16HDI is a 2G x 72-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:
FEATURES
• Power Supply: VDD = 1.2V
• VDDQ = 1.2V
• VPP = 2.5V
• VDDSPD = 2.41V to 2.75V
• Functionality and operations comply with the DDR4 SDRAM datasheet
• 16 internal banks
• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Supports ECC error correction and detection
• On-Die Termination (ODT)
• Temperature sensor with integrated SPD
• This product is in compliance with the RoHS directive.
• Per DRAM Addressability is supported
• Internal Vref DQ level generation is available
• Write CRC is supported at all speed grades
• CA parity (Command/Address Parity) mode is supported
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Capacity | 16GB |
| Specifications | Error Checking | Registered w/Parity |
| Specifications | Form Factor | DIMM |
| Specifications | Frequency | 2666MHz |
| Help | Kingston Memory Configurator | https://www.kingston.com/en/memory/search/systemdevices?makeOrModel= |
| Specifications | Ranking | Dual Rank |
| Specifications | Series | Kingston Server Memory |
| Specifications | Type | DDR4 |
| Specifications | Voltage | 1.2v |
| Specifications | Warranty | Limited Lifetime |
