Product description

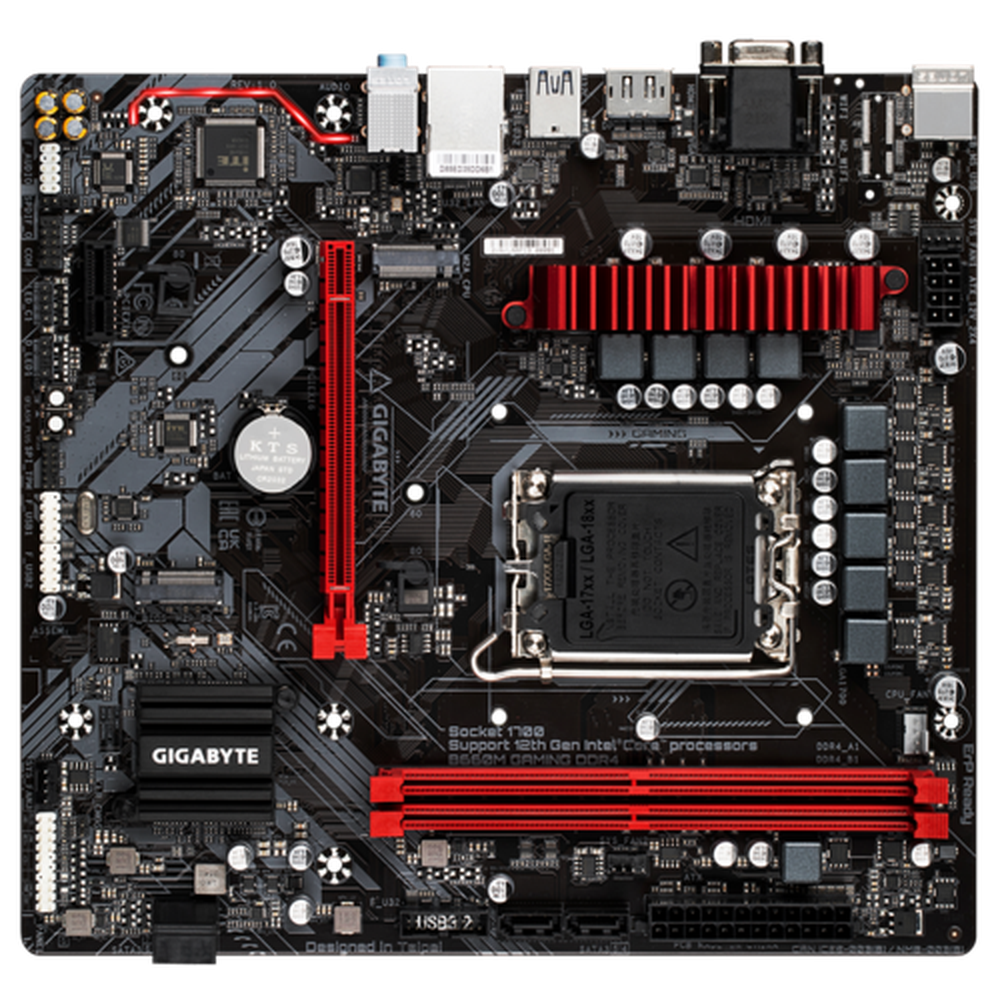

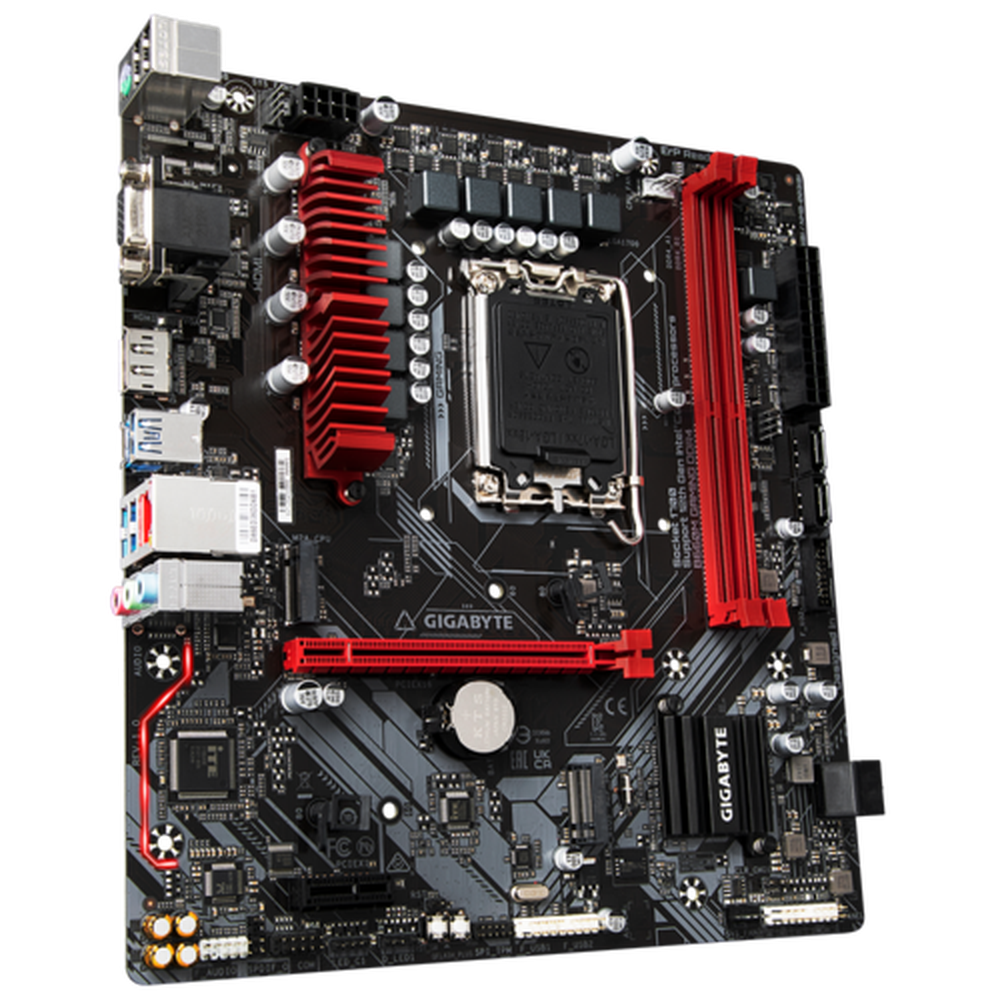

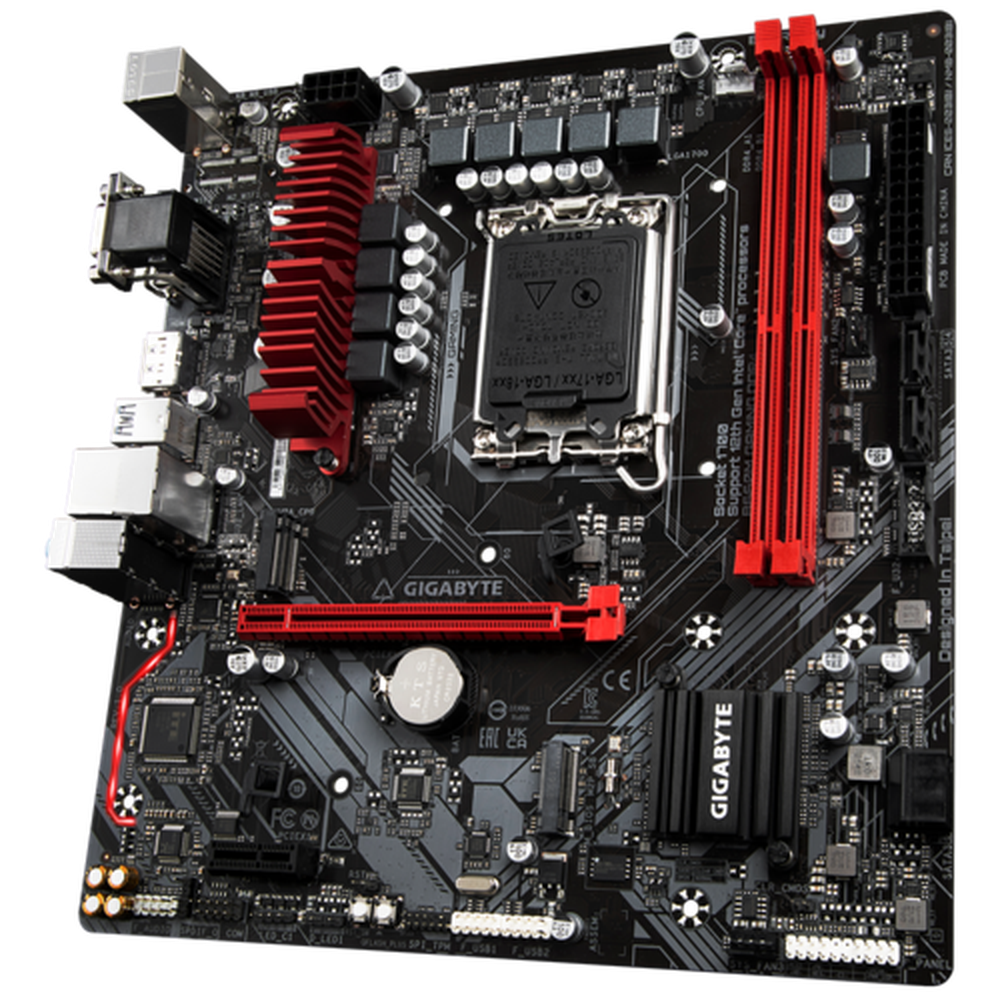

B660M GAMING DDR4


Intel® B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, Rear USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus


  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
  • Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections
  • High Quality Audio Capacitors and Audio Noise Guard
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Shipping & Return

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Tech Specs

GroupName Name Value
SpecificationsAudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
SpecificationsChipsetIntel® B660 Express Chipset
SpecificationsForm FactorMicro ATX Form Factor; 24.4cm x 22.5cm

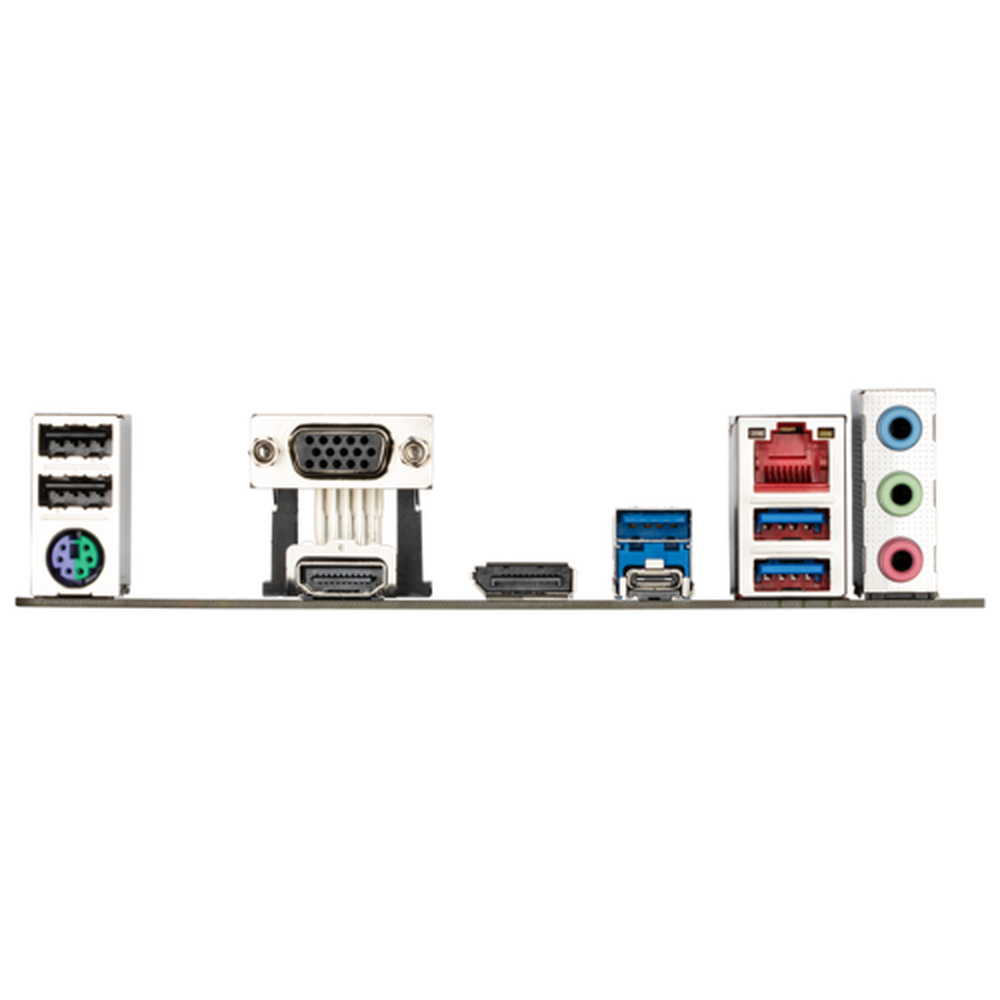

SpecificationsI/O Connectors2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
SpecificationsIntegrated CPU GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
SpecificationsLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
SpecificationsMemory/Type/Bus/Max.Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
SpecificationsPCI Slots1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
SpecificationsProcessor SupportLGA1700 socket: Support for 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
SpecificationsRaidSupport for SATA RAID 0, RAID 1, RAID 5, and RAID 10
SpecificationsRAM Type/Bus/Max.Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
SpecificationsSocketLGA1700
SpecificationsStorage InterfaceCPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane Memory Ready * System acceleration with Intel® Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SpecificationsWarranty3 Years
SpecificationsWeight
