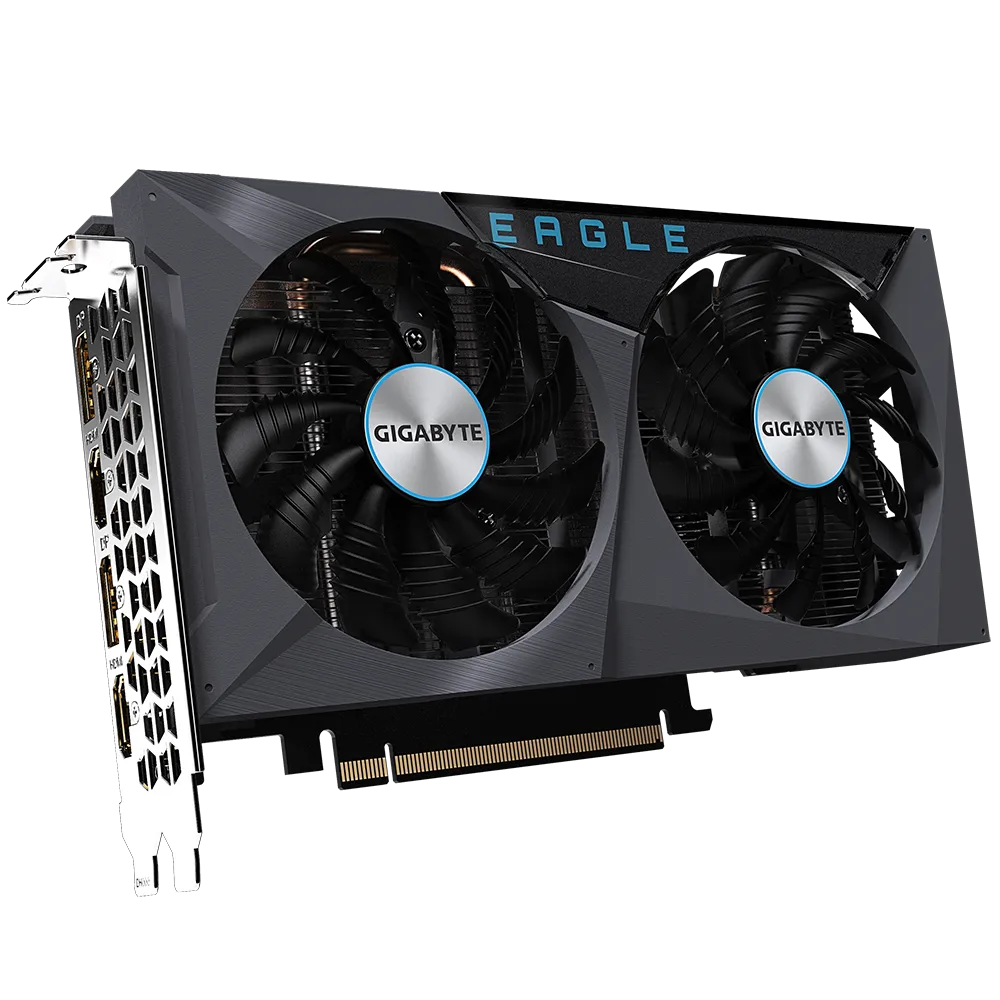

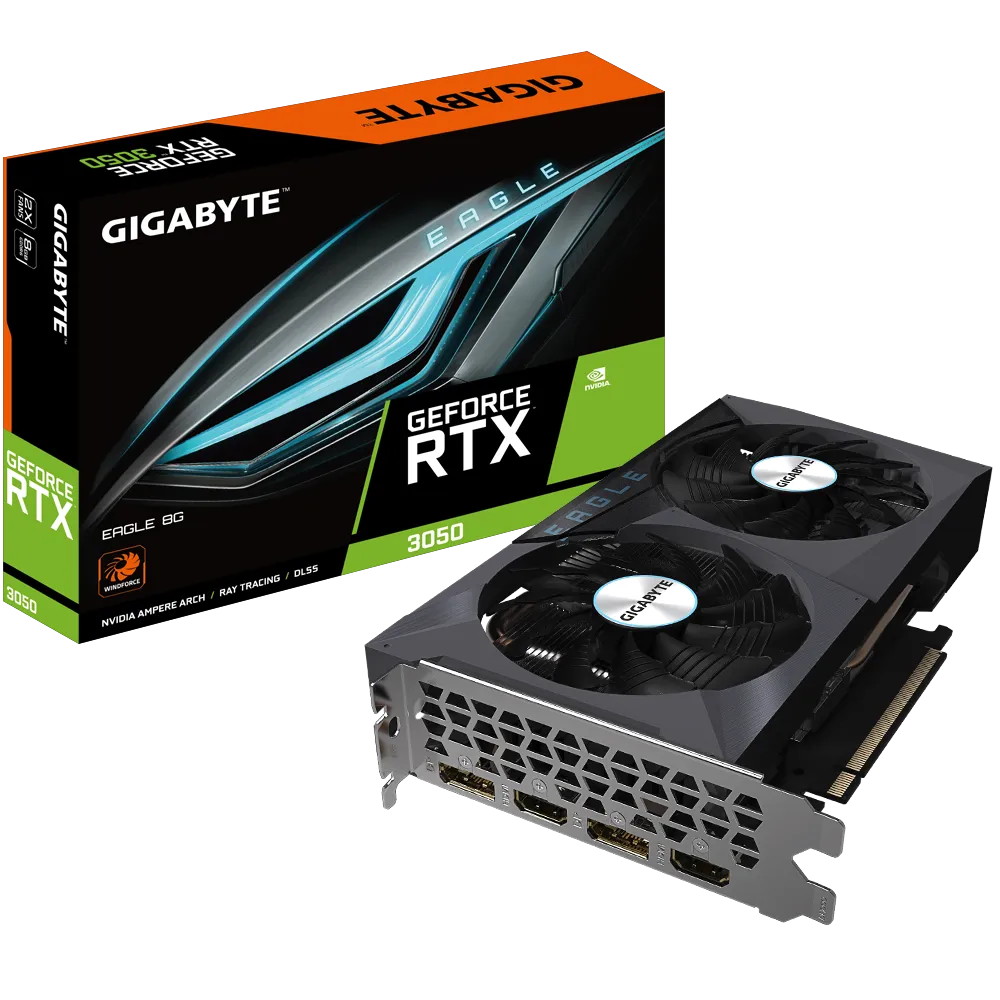

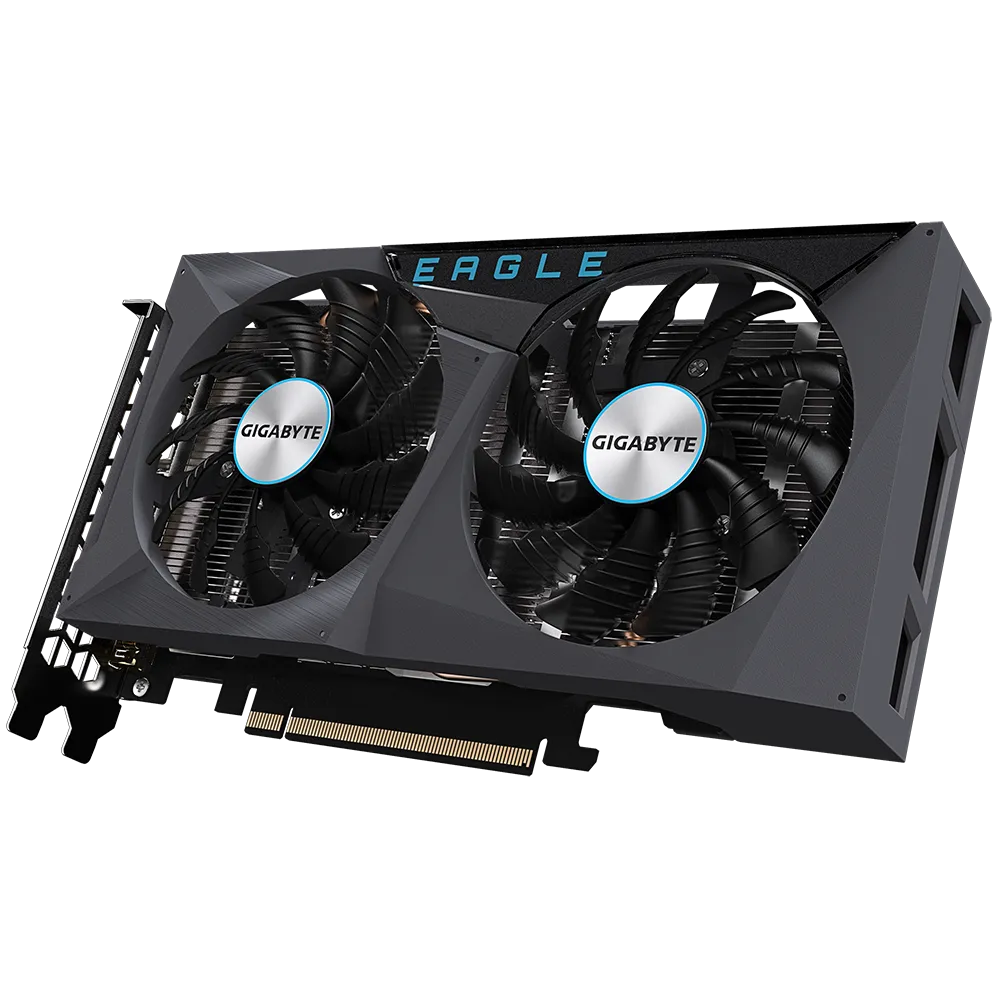

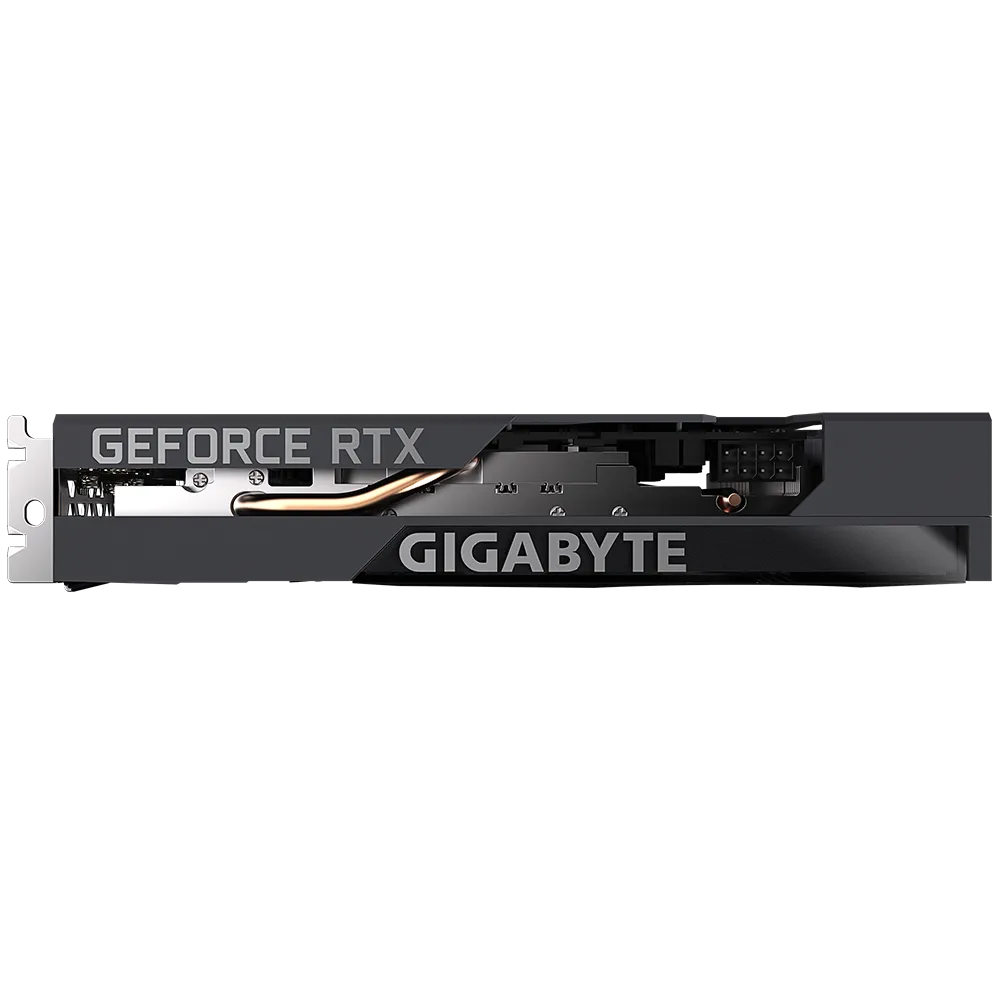

GeForce RTX™ 3050 EAGLE 8G
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3050
- Integrated with 8GB GDDR6 128-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 90mm unique blade fans
- Protection back plate
- 1777 MHz
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2X90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

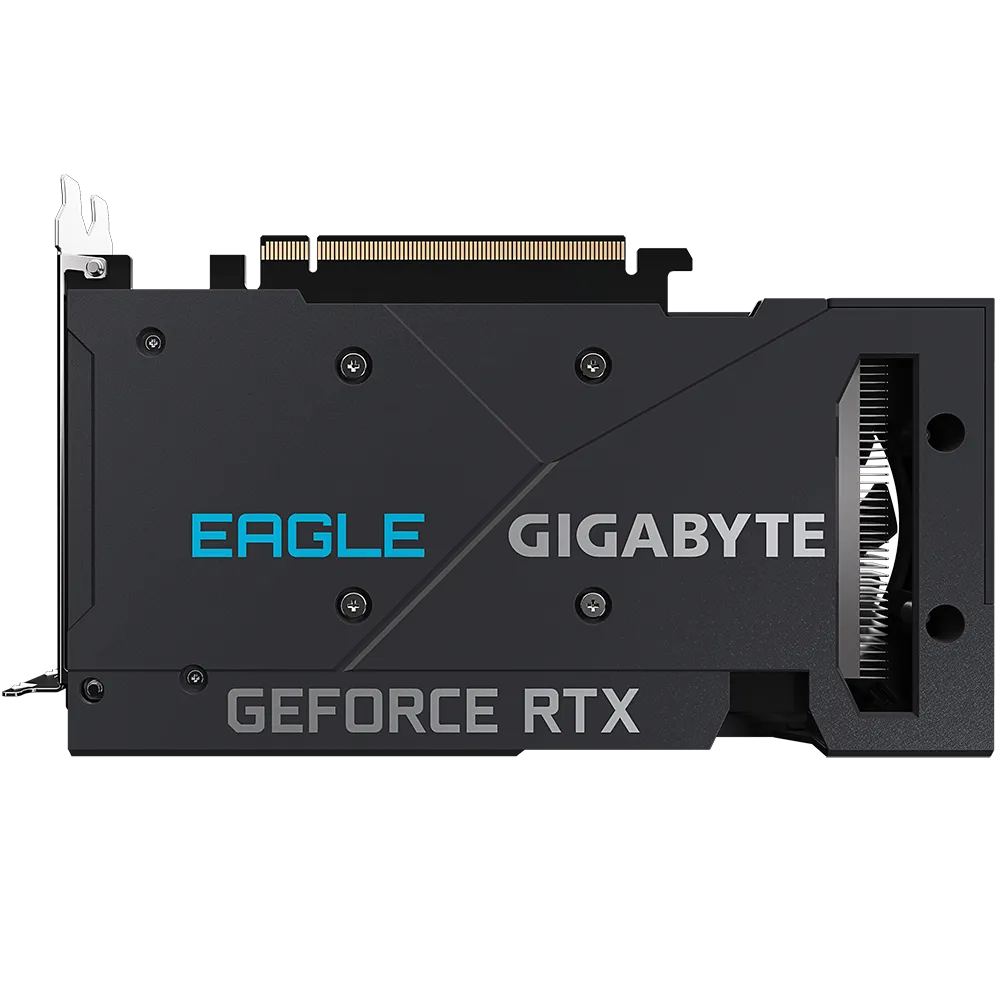

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
|Specifications||Analog Max Resolution|
|Specifications||Card Interface||PCI-E 4.0|
|Specifications||Card Size||L=213 W=120 H=41 mm|
|Specifications||Chipset Manufacturer||GeForce RTX 3050|
|Specifications||Core Clock (MHz)||1777 MHz|
|Specifications||Core Technology||CUDA® Cores 2560|
|Specifications||Digital Max Resolution||7680x4320|
|Specifications||DirectX S||12 Ultimate|
|Specifications||Fan/Heat Sink||Dual Fans|
|Specifications||Graphic Chipset||GeForce RTX 3050|
|Specifications||Input/output||DisplayPort 1.4a *2 HDMI 2.1 *2|
|Specifications||Memory||8 GB GDDR6|
|Specifications||Memory Bandwidth||224 GB/s|
|Specifications||Memory Bus||128 bit|
|Specifications||Memory Clock (MHz)||14000 MHz|
|Specifications||Memory Size||8 GB|
|Specifications||Power Connectors||8 pin*1|
